APC by Schneider Electric AP8653 Metered-by-Outlet Switched Rack PDU, 2G, 32A 230V, 24-Outlet
Overview
The AP8653 is a 2G Metered-by-Outlet with Switching (MbOS) rack PDU engineered for data center operators and infrastructure teams who need granular power visibility and remote outlet control from a single 0U vertical unit. With a 32A IEC 60309 input and 24 individually switchable outlets — (21) IEC 60320 C13 and (3) IEC 60320 C19 — the AP8653 delivers 7,400VA of capacity while giving network and facilities teams the ability to measure load at every receptacle and power-cycle equipment without physical access. That combination of per-outlet metering and switching is what separates this unit from simpler rack power distribution strips that only show aggregate load. Browse the full APC by Schneider Electric power portfolio to compare PDU families and accessories.
Key Features
- Per-Outlet Switching and Metering: Each of the 24 outlets can be independently switched on, off, or power-cycled remotely. Combined with per-outlet current measurement, you get both load accountability per device and the ability to recover a locked-up server without dispatching a tech — a direct reduction in remote-hands costs.
- 32A / 7,400VA Input Capacity: Sized for fully loaded 42U server racks drawing high-density compute loads. A single IEC 60309 2P+E input handles up to 32A continuous, giving headroom for full C19 and C13 device mixes simultaneously.
- 24 Mixed-Socket Output: (21) C13 sockets cover 1U/2U servers, switches, and patch panels; (3) C19 sockets handle higher-draw devices like blade chassis, large UPS bypass feeds, or GPU servers. No adapters needed for most standard rack hardware.
- 200–240VAC Input Flexibility: Accepts 200V, 208V, and 230V nominal inputs at 50/60 Hz, so this unit deploys equally in US 208V three-phase environments and European/international 230V single-phase rooms without reconfiguration.
- 3-Meter Cord with IEC 60309 Connector: The 9.84 ft (3m) power cord provides enough slack to reach a floor PDU or whip without extension cords, and the IEC 60309 locking plug prevents accidental disconnection under load — relevant in high-vibration floor environments.
- 0U Vertical Form Factor: Mounts vertically inside the rack cabinet to preserve all usable U-space. At 2.2 in. wide and 2.0 in. deep, it fits within standard zero-U side channels on most cabinet brands without intruding into the cable runway.
- Wide Operating Temperature Range: Rated 23–140°F (−5–60°C) operating and up to 10,000 ft (3,048m) elevation — covers hot-aisle/cold-aisle containment extremes, edge deployments, and high-altitude facilities without derating.
- Operating Humidity 5–95%: Full non-condensing humidity tolerance means the unit operates reliably in data halls that experience seasonal humidity swings without additional environmental controls on the PDU itself.
Integration and Compatibility
The AP8653 integrates with APC's EcoStruxure IT and Data Center Expert platforms for centralized power monitoring, alerting, and outlet scheduling. The APC network management card slot (verify card compatibility with APC's NMC selector) enables SNMP, Modbus, and HTTPS access to per-outlet data. For UPS-backed power chains, the IEC 60309 input mates directly with compatible APC SY-series and Galaxy distribution outputs. Third-party DCIM platforms that support SNMP MIB or Modbus TCP polling can consume per-outlet kWh and ampere data.
Frequently Asked Questions
Q: What input plug type does the AP8653 use?

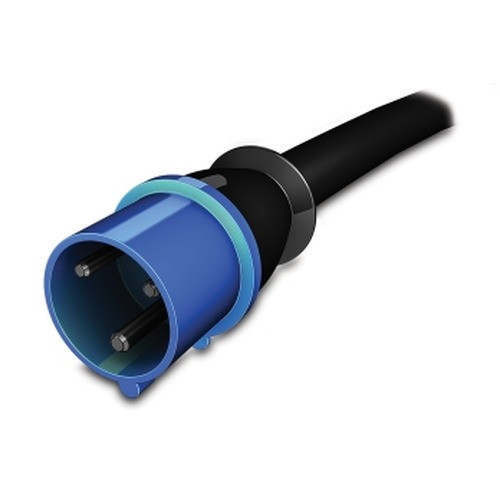

A: The AP8653 uses an IEC 60309 32A 2P+E (blue, single-phase) input connector on a 3-meter cord. This is the standard locking industrial plug used on APC's high-density PDU line — verify your floor PDU or power strip has a matching IEC 60309 32A receptacle before ordering.
Q: What is the total outlet count and socket mix on the AP8653?
A: There are 24 outlets total: (21) IEC 60320 C13 for standard 1U/2U equipment and (3) IEC 60320 C19 for higher-draw devices requiring the larger socket. All 24 outlets are individually metered and switchable.
Q: What input voltages does the AP8653 support?
A: The AP8653 accepts 200V, 208V, and 230V nominal input at 50 or 60 Hz (200–240VAC acceptable range), making it compatible with both US 208V and international 230V power infrastructure.
Q: How much rack space does the AP8653 occupy?
A: The AP8653 is a 0U vertical PDU. It mounts in the zero-U side channel of compatible rack cabinets and measures 2.2 in. wide × 2.0 in. deep × 72.0 in. tall, preserving all usable U-space in the rack.
Q: What is the maximum load capacity of the AP8653?
A: The AP8653 is rated for 7,400VA at 32A maximum input current. For continuous operation, plan to keep actual load at or below 80% of rated capacity (approximately 25.6A / 5,920VA) per standard NEC and data center best practice.
Q: What is the operating temperature range of the AP8653?
A: The AP8653 operates from 23°F to 140°F (−5°C to 60°C) and up to 10,000 ft (3,048m) elevation, covering most data center, IDF closet, and edge deployment environments.
The AP8653 earns its place in high-density deployments because of the per-outlet switching capability — when you are running 24 outlets at up to 32A total on a single IEC 60309 feed, the ability to remotely power-cycle any individual C13 or C19 port without touching the rest of the rack is not a luxury, it is a core operational requirement. I have seen teams cut remote-hands tickets by more than half simply by having MbOS PDUs on every cabinet.
Technical Highlights:
- 7,400VA / 32A Input Rating: Enough headroom for a fully loaded mixed cabinet combining (3) C19 blade chassis draws and (21) C13 1U servers — size your actual load below 80% (roughly 25.6A) for continuous duty and NEC compliance.
- 0U Vertical at 72 in. / 1,829mm: Fits a standard 42U NetShelter or equivalent cabinet zero-U channel without consuming a single U of equipment space — critical when rack density is high and every U has a server.
- 200–240VAC / 50–60 Hz Acceptance: One SKU covers US 208V and European 230V rooms, which simplifies spare-unit procurement for multi-region deployments or co-location facilities with mixed power infrastructure.
Deployment Considerations:
- The IEC 60309 32A 2P+E input is a locking connector — confirm your floor PDU or busway tap has a mating 32A IEC 60309 receptacle; an adapter to a non-locking connector defeats the pull-resistant design.
- At 18.14 lbs. (8.23 kg) unloaded, vertical installation typically requires a second person or a PDU mounting tool during initial cabinet installation — do not attempt single-person installation in a live rack above populated equipment.
For a co-location or enterprise data center environment where remote power management is non-negotiable and cabinet density is at a premium, the AP8653 is the right unit — particularly in mixed 208V/230V multi-site deployments where a single SKU covering both voltages reduces procurement and spare-parts complexity.
