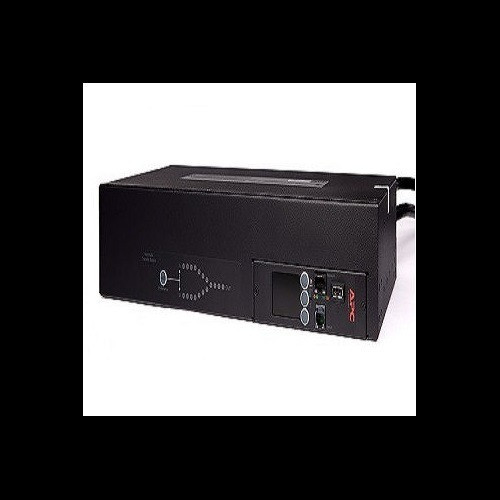

APC by Schneider Electric Rack ATS 230V 32A IEC309 in (16) C13 - AP4424
Product images are provided for reference and may not represent the exact model, configuration, or included components.

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

APC by Schneider Electric AP4424 Rack ATS 230V 32A IEC309 in (16) C13 - AP4424

Overview

The APC by Schneider Electric AP4424 is a 230V, 32A Rack Automatic Transfer Switch (ATS) designed to provide redundant power to critical IT equipment. It features a single IEC309 32A input and distributes power through sixteen C13 outlets. This unit is essential for maintaining uptime in server racks where dual power supplies are present on connected devices, ensuring continuous operation even if one power source fails. The AP4424 is suitable for deployment in enterprise data centers and colocation facilities.

Compatibility

This Rack ATS is designed for use with IT equipment featuring dual power supplies that accept C13 connectors. It is compatible with standard 230V power distribution systems and IEC309 32A input connections. Specific compatibility extends to servers, network switches, and storage devices that utilize redundant power configurations. It integrates seamlessly into existing rack infrastructure.

Installation Notes

Installation requires a qualified technician to connect the IEC309 32A input to a suitable 230V power source. Ensure that the total load of connected devices does not exceed the unit's 32A capacity. The unit mounts horizontally in a standard 19-inch rack, occupying 2U of vertical space. Proper airflow within the rack is critical for heat dissipation.

What's in the Box

  • 1x AP4424 Rack ATS
  • 1x IEC 309 32A Input Power Cord
  • 1x Rack Mounting Hardware Kit
  • 1x Documentation
Expert Analysis
Specifications
Nominal Input Voltage: 230 Vac
Acceptable Input Voltage: +/-10% of nominal
Input Frequency: 50/60 Hz
Input Connectors: Two 2.44-m IEC-309 32-A
Output Connectors: Sixteen C13, Two C19
Maximum Output Current C13: 10 A
Maximum Output Current C19: 16 A
Maximum Output Current Bank: 16 A
Maximum Output Current Gang: 10 A
Maximum Output Input Current: 32 A
Overload Protection: Two 16-A circuit breakers
Transfer Time: 10 ms maximum
Short Circuit Current Rating: 10 kA
Dimensions: 88.1 x 431.8 x 236.2 mm
Shipping Dimensions: 209.5 x 584.2 x 355.6 mm
Weight: 6.94 kg
Shipping Weight: 9.43 kg
Maximum Elevation Operating: 3000 m
Maximum Elevation Storage: 15000 m
Temperature Operating: -5 to 45°C
Temperature Storage: -25 to 65°C
Humidity Operating: 0 to 95% non-condensing
Humidity Storage: 0 to 95% non-condensing
Compliance Safety: UL/EN/IEC 60950-1, LVD 2014/35/EU
Compliance EMC: EMC Directive 2014/30/EU
Q&A
Reviews
Product Video

APC by Schneider Electric Rack ATS 32A C13 - AP4424

$3,165.00
$1,776.99
Add to Cart
