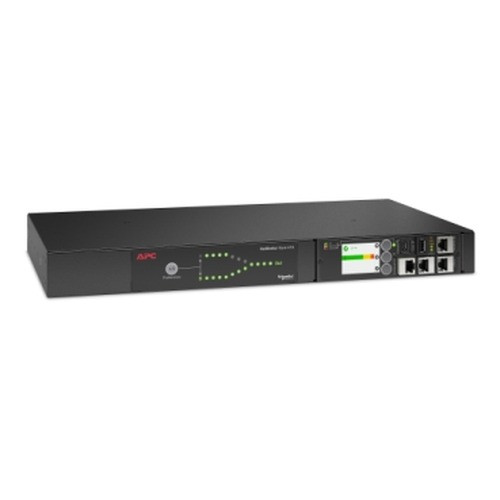

APC by Schneider Electric AP4430A Rack ATS Power Distribution

Overview

The APC by Schneider Electric AP4430A is a 1U rackmount Automatic Transfer Switch (ATS) designed to provide dual-circuit power redundancy for critical IT equipment. It accepts input power from two separate power sources and automatically switches to the secondary source if the primary fails, ensuring continuous operation for connected servers, network devices, and other rack-mounted gear. This unit is ideal for small to medium-sized server rooms or network closets where uptime is paramount and a single power feed presents a single point of failure. The AP4430A model supports 200-208V input and output at 20A, with a standard L6-20P input plug and a configuration of eight C13 outlets and one C19 outlet.

Compatibility

This Rack ATS is compatible with standard 200-208V IT equipment requiring C13 or C19 power connections. It is designed to integrate seamlessly into existing rack infrastructure, providing a reliable power path for equipment from major server manufacturers such as Dell PowerEdge, HPE ProLiant, Cisco UCS, and network devices from Cisco, Juniper, and Arista. It functions as a power distribution unit (PDU) with automatic failover capabilities.

Installation Notes

The unit operates within a 200-220V input range and delivers 200-208V to connected devices. It requires a 50-60 Hz AC input frequency. Environmental operating conditions range from -5°C to 45°C (23°F to 113°F) with 5-95% non-condensing relative humidity. The 1U form factor requires standard 19-inch rack mounting, secured using provided hardware. LED indicators provide status for input power, output load, and switch position.
