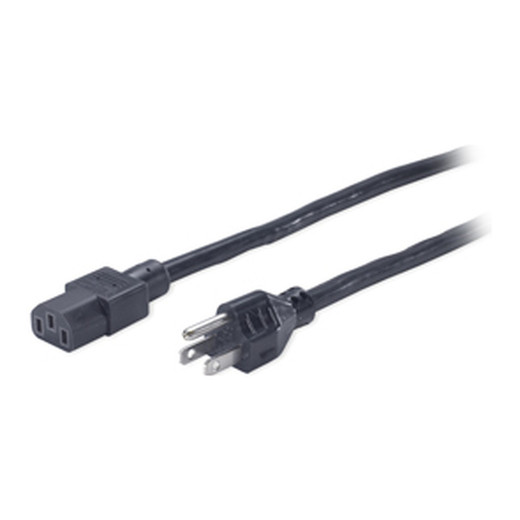

APC by Schneider Electric AP9893 8-Foot NEMA 5-15P to IEC 320 C13 Power Cord
Overview
The AP9893 is an 8-foot (2.44 m) replacement power cord designed for APC UPS systems, rack PDUs, and other equipment requiring a standard IEC 320 C13 connection on the device side and a NEMA 5-15P plug at the wall. At 120V nominal output, this cord fits the typical North American rack power infrastructure — the kind of install where you need a reliable, correctly rated replacement without improvising with an undersized or mismatched cable. If you've ever had a marginally short cord force awkward routing inside a rack, the 8-foot run gives you meaningful slack for clean cable management.
For APC PDU and power distribution unit builds, cord length and connector type are the two specs that actually matter at installation time. The AP9893 pairs a standard NEMA 5-15P straight blade plug (15A, 120V) with the IEC 320 C13 female connector used on the vast majority of 1U servers, switches, and rack-mount APC UPS units. That pairing means it works off any standard 15A North American branch circuit — no adapter needed, no specialty outlet required.
Key Features
- 8-Foot (2.44 m) Cord Length: Longer than the typical 6-foot replacement cord, which matters in deep rack bays or when the PDU is mounted at the bottom and the load device is in the upper half of the cabinet. Extra length costs nothing in performance but saves real headaches during install.
- NEMA 5-15P Input Plug: Standard 15A, 120V straight-blade plug — compatible with every North American 15A receptacle including APC APC PDU outlets and standard wall circuits. No ground-lift adapters, no converters.
- IEC 320 C13 Output Connector: The universal connector for rack-mount gear. Fits UPS units, servers, KVM switches, patch panels with integrated power, and most 1U/2U network equipment. One cord type covers the majority of devices in a standard rack.
- 120V Nominal Voltage: Rated for North American single-phase power infrastructure. Confirm your load device's input voltage before ordering — this cord is not intended for 208V or 240V applications.
- Black Jacket: Clean appearance in finished rack installations; blends with standard rack cable management hardware rather than standing out in mixed-cord environments.
Integration & Compatibility
The AP9893 is a passive power cord — compatibility is determined entirely by connector type and voltage rating, not firmware or software. It is compatible with any UPS or power supply device that accepts an IEC 320 C13 input and draws from a 120V NEMA 5-15P source. Common pairings include APC Smart-UPS and Back-UPS units, APC rack PDUs, and virtually any 1U rack-mount network or compute device with a standard IEC inlet. For installations in mixed-voltage data centers, verify that the connected load is rated for 120V before using this cord — there is no built-in protection against voltage mismatch. Pair with an APC rack PDU or a compatible network switch rack build for a clean power distribution layout.
Frequently Asked Questions
Q: What connectors does the AP9893 use?
A: The AP9893 has a NEMA 5-15P plug on the input (wall/PDU) side and an IEC 320 C13 female connector on the output (device) side.
Q: What voltage is the AP9893 rated for?
A: The AP9893 is rated for 120V nominal — standard North American single-phase power. It is not designed for 208V or 240V circuits.
Q: How long is the AP9893 power cord?
A: The cord is 8 feet (2.44 meters) long.
Q: What equipment is the AP9893 compatible with?
A: Any device with an IEC 320 C13 power inlet operating at 120V — including APC UPS units, APC rack PDUs, 1U servers, KVM switches, and standard rack-mount network equipment.
Q: Can the AP9893 be used in a 208V data center environment?
A: No. The AP9893 is rated for 120V nominal. For 208V environments, a different cord with the appropriate voltage rating and connector type is required.
The AP9893 is the kind of component that gets overlooked until you're mid-install and the existing cord is 6 inches short — the 8-foot run on this cord is the practical reason most integrators keep a few on the shelf. It's a NEMA 5-15P to IEC 320 C13 replacement rated at 120V nominal, nothing more complex than that, but getting connector type and length right the first time saves a return trip.
Technical Highlights:
- IEC 320 C13 Output: The C13 connector is the workhorse of rack power — it fits APC UPS units, most 1U servers, and the majority of rack-mount network gear without adapters. One cord type covers a wide swath of the standard rack load inventory.
- NEMA 5-15P Input: Standard 15A straight-blade plug works off any North American 15A outlet or PDU receptacle. No specialty circuit required — plug and go.
- 8-Foot Length: Two feet longer than the common 6-foot replacement. In a 42U rack with the PDU at the bottom, that extra reach matters. Plan your routing before ordering — if you're cross-patching between adjacent racks, 8 feet may still be tight.
Deployment Considerations:
- Verify the connected device's input is rated for 120V before installing this cord in any mixed-voltage (120V/208V) rack environment — the NEMA 5-15P plug physically fits a 120V outlet only, but the device inlet side has no such mechanical protection.
- This cord is passive — there are no current or wattage ratings published in the available evidence. Confirm amperage rating matches your load device's draw before use in high-density power applications.
The AP9893 is best suited for North American rack builds where a standard C13-tailed device needs to reach a 120V PDU or wall outlet with clean routing — the 8-foot length makes it a practical default for mid-tower and full-height rack installs where a 6-foot cord consistently comes up short.
