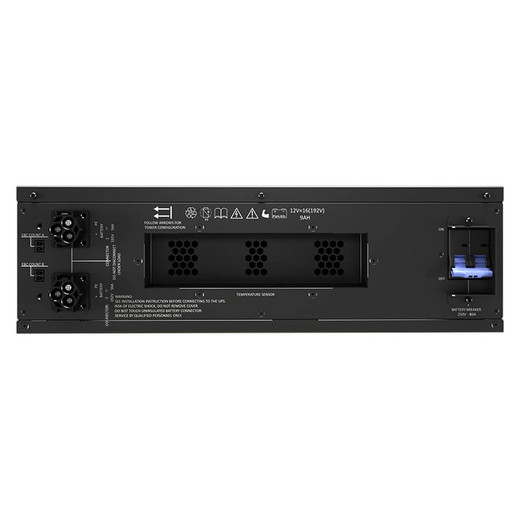

Vertiv PB-GXT5-192VBAT External Battery Cabinet for Liebert GXT5 UPS
Overview
The Vertiv PB-GXT5-192VBAT is an external UPS battery cabinet engineered specifically for the Vertiv Liebert GXT5 online double-conversion UPS line. When your critical load demands more runtime than the internal batteries can provide — think server rooms, network closets, or edge computing deployments where an extended outage means real business impact — the PB-GXT5-192VBAT adds a verified, compatibility-matched battery string without guesswork or adapter cables.
The cabinet pairs with four specific GXT5 UPS models: the Liebert GXT5-5000HVRT5UXLN, GXT5-6KL630RT5UXLN, GXT5-8000HVRT5UXLN, and GXT5-10KHVRT5UXLN. If your site runs any of these units and needs longer hold times, this is the factory-matched extension — not a third-party workaround. The GXT5 UPS auto-detects the cabinet on connection, so there is no manual configuration required to bring the extended battery string online.
Key Features
- Valve-Regulated Lead Acid (VRLA) Chemistry: The non-spillable, flame-retardant battery cells are sealed — no venting requirements, no electrolyte management, and safer for enclosed rack environments. This eliminates the ventilation engineering constraints that come with flooded-cell alternatives.
- Intelligent Battery Health Management: The Liebert GXT5 UPS reads battery health status and predicts replacement dates from this cabinet's data. That means scheduled, planned battery swaps instead of emergency replacements after an unexpected failure during an actual outage.
- Auto-Detection: The GXT5 UPS automatically identifies the PB-GXT5-192VBAT on connection — no jumpers, no manual capacity configuration. The UPS recalculates available runtime immediately, which reduces commissioning time during installation.
- Operating Temperature Range: Rated +32°F to +104°F (0°C to 40°C), covering standard conditioned data center and equipment room environments. Deploying outside this range — unheated telecom huts in cold climates, for example — will require thermal planning.
- Model-Specific Compatibility: Compatibility is explicitly scoped to the four GXT5 models listed above. Do not assume compatibility with earlier GXT3 or GXT4 units, or with other Vertiv UPS families — verify your exact UPS model number before ordering.
Integration & Compatibility
The PB-GXT5-192VBAT integrates exclusively with the Liebert GXT5 series. The UPS-side auto-detection protocol handles recognition and runtime recalculation automatically. For external battery cabinet planning across larger deployments, verify the maximum number of external battery cabinets supported per UPS unit in the GXT5 installation guide — chaining more cabinets than the UPS supports can affect runtime calculations and warranty coverage. For sites running power distribution alongside UPS infrastructure, plan battery cabinet placement to allow serviceability access for future battery replacement cycles.
Frequently Asked Questions
Q: Which UPS models is the PB-GXT5-192VBAT compatible with?
A: The PB-GXT5-192VBAT is compatible with four specific Liebert GXT5 UPS models: GXT5-5000HVRT5UXLN, GXT5-6KL630RT5UXLN, GXT5-8000HVRT5UXLN, and GXT5-10KHVRT5UXLN. It is not interchangeable with GXT3, GXT4, or other Vertiv UPS families.
Q: Does the PB-GXT5-192VBAT require manual configuration after connecting it to the UPS?
A: No. The Liebert GXT5 UPS automatically detects the external battery cabinet on connection. No jumpers, DIP switches, or software configuration are required to bring the extended battery string online.
Q: What type of batteries does the PB-GXT5-192VBAT use?
A: It uses valve-regulated, non-spillable, flame-retardant lead acid (VRLA) batteries. These are sealed cells that do not require electrolyte maintenance and are safe for use in enclosed rack environments without special ventilation.
Q: What is the operating temperature range for the PB-GXT5-192VBAT?
A: The cabinet is rated for operation between +32°F and +104°F (0°C to 40°C), consistent with standard conditioned data center and equipment room environments.
Q: Does the GXT5 UPS monitor the health of batteries in the PB-GXT5-192VBAT?
A: Yes. The Liebert GXT5 UPS provides battery health status reporting and replacement date prediction for the external cabinet, enabling planned maintenance rather than reactive replacement after a failure.
The PB-GXT5-192VBAT is the correct answer when you need more runtime from a GXT5 UPS in the 5kVA–10kVA range and want to stay within Vertiv's supported configuration. The VRLA chemistry is the practical detail that matters most here — sealed, flame-retardant cells mean you can rack this cabinet alongside compute equipment without carving out ventilation clearances that flooded-cell alternatives would demand.
Technical Highlights:
- VRLA Battery Chemistry: Non-spillable, flame-retardant sealed cells eliminate the ventilation engineering burden in dense rack environments and reduce installation complexity.
- Intelligent Health Monitoring: The Liebert GXT5 UPS reads health status and predicts replacement dates from the PB-GXT5-192VBAT — shifting battery management from reactive to scheduled.
- Auto-Detection Protocol: The GXT5 recognizes the cabinet automatically on connection and recalculates available runtime without manual input, which cuts commissioning time to near zero.
Deployment Considerations:
- Verify your exact GXT5 UPS model number against the four supported SKUs before ordering — this cabinet does not carry backward compatibility with GXT3 or GXT4 platforms.
- Operating temperature ceiling is 40°C (104°F). Edge or industrial deployments in poorly cooled environments may push against this limit and accelerate battery degradation.
Best positioned for server room and network closet deployments running one of the four compatible GXT5 UPS models where planned runtime extension and predictive battery maintenance are priorities over ad-hoc replacement cycles.
