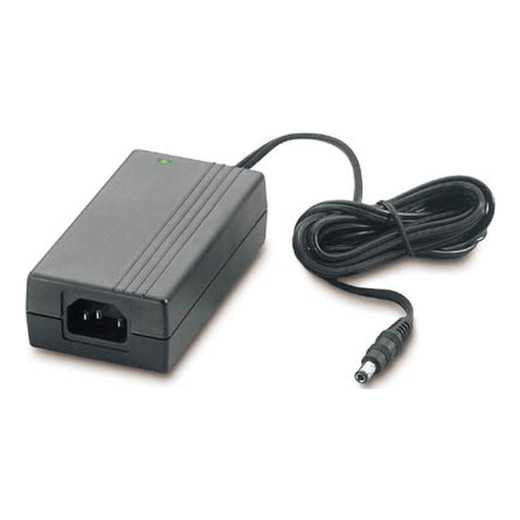

APC by Schneider Electric AP9505I Power Adapter

Overview

The APC by Schneider Electric AP9505I is an indoor AC-to-DC power adapter designed to convert standard AC mains voltage to a stable 24V DC output. This unit is essential for powering devices that require a specific 24V DC input, such as certain surveillance cameras, access control systems, or industrial automation components where a dedicated power supply is needed. Its compact form factor and compliance with RoHS standards make it suitable for integration into various commercial and industrial installations.

Compatibility

This adapter is compatible with systems and devices requiring a 24V DC power input. It features standard IEC320-C7/BS-1363 input connectors for AC power and a DC power jack for output. Specific compatibility is dependent on the input power requirements of the end device. For instance, it can power select models of APC's own Back-UPS series or other third-party equipment that specifies a 24V DC input and uses a compatible DC jack.

Installation Notes

Operating within a temperature range of 0 to 45°C, this adapter is suitable for indoor environments. It supports AC input up to 240V and provides a regulated 24V DC output. The unit is designed for non-condensing humidity conditions, functioning effectively between 0% and 95% relative humidity. Storage conditions range from -15 to 45°C, also within 0-95% non-condensing humidity.
