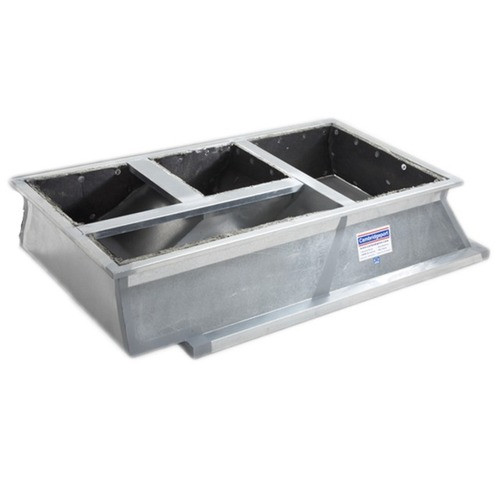

APC by Schneider Electric Roof Height Adapter SX42U TOVX42U 1016MM - ACDC2504

APC by Schneider Electric ACDC2504 Concise Descriptor

Overview

The APC by Schneider Electric ACDC2504 is a 1016mm roof height adapter designed to extend the vertical mounting space within specific APC enclosures. This adapter is crucial for deployments requiring additional clearance for equipment, such as larger network switches, UPS units, or specialized server components, above the standard rack height. It ensures that your infrastructure can accommodate oversized hardware without compromising enclosure integrity or thermal management.

Compatibility

This adapter is specifically designed for use with the APC SX42U and VX42U enclosure families. It provides an additional 1016mm of vertical mounting space, allowing for the integration of taller equipment that would otherwise not fit within the standard enclosure dimensions. Ensure your existing enclosure is part of the SX42U or VX42U series before ordering.

Installation Notes

Installation requires careful alignment with the existing enclosure frame and the new equipment being mounted. The adapter is designed to bolt directly to the enclosure's vertical mounting rails and the base of the extended equipment. Refer to the enclosure's installation manual for detailed steps on adding vertical extensions and ensuring proper load distribution. No specific tools are mentioned in the provided evidence, but standard rack mounting tools are typically required.

What's in the Box

• 1x APC ACDC2504 Roof Height Adapter
• Mounting hardware
