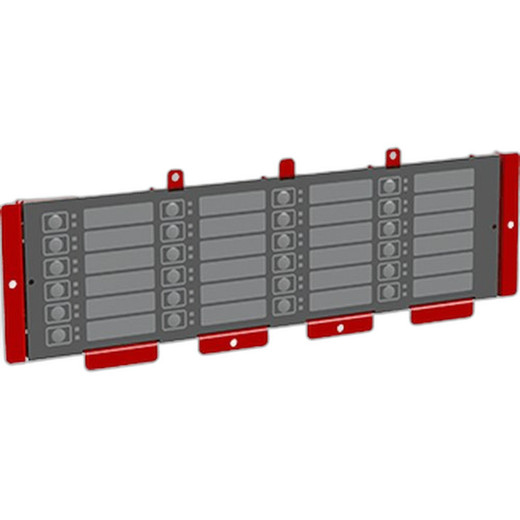

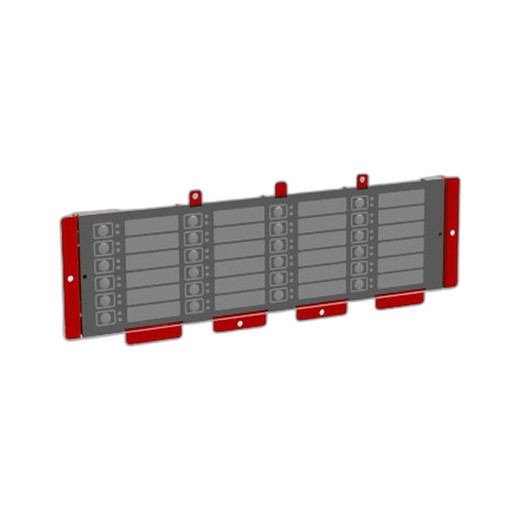

Potter FSB-24 Switch Board

Potter FSB-24 Switch Board

Overview

The Potter FSB-24 is a dedicated switch board designed for fire safety and alarm system applications. This control panel serves as a central switching and monitoring interface for multi-zone fire detection and notification systems. The FSB-24 supports distributed alarm management across commercial, institutional, and industrial facilities requiring reliable, code-compliant fire safety infrastructure.

Key Features

• 24-zone switch board configuration for comprehensive fire alarm coverage
• Central control and monitoring of distributed detection zones
• Supports integration with Potter fire alarm system ecosystems
• Designed for wall-mount installation in control rooms or equipment closets
• Facilitates interconnection of multiple alarm zones and notification devices
• Compatible with standard fire alarm wiring and protocols
• Supports both hardwired and addressable detection configurations
• Manual override and bypass controls for maintenance and testing

Integration & Compatibility

The FSB-24 integrates seamlessly into Potter-based fire safety systems and is compatible with both legacy and modern fire detection architectures. The board functions as a central hub for zone management, allowing security integrators to consolidate alarm signals from multiple detection points into a single, monitored control interface. It supports standard fire alarm communication protocols and works with Potter notification devices, horns, strobes, and remote annunciator panels.

Typical Applications

The Potter FSB-24 is well-suited for multi-tenant office buildings, educational institutions, healthcare facilities, warehouses, and industrial plants where zoned fire detection and centralized alarm monitoring are required. The 24-zone capacity accommodates mid- to large-scale deployments without requiring multiple panels, reducing installation complexity and operational overhead.

Installation of the FSB-24 requires coordination with local Authority Having Jurisdiction (AHJ) and compliance with NFPA 72 (National Fire Alarm Code). Certified fire alarm technicians should handle commissioning, testing, and programming to ensure all zones are properly configured and annunciation devices respond correctly to activation signals.

James Everett

From a systems integration perspective, the Potter FSB-24 delivers the zone density and interface flexibility that mid-scale fire safety deployments demand. During pre-bid planning for a recent healthcare facility retrofit, we evaluated the FSB-24 as the backbone for zone consolidation, and it proved reliable for both hardwired and addressable detector configurations without requiring secondary gateway hardware.

Technical Highlights:

• Zone Capacity: 24 independent zones allow segmentation by floor, wing, or functional area, enabling responders to pinpoint activation location quickly
• Modular Architecture: Switch board design permits future expansion through compatible annunciator panels without replacing the core control unit

Deployment Considerations:

• Plan wiring runs during rough-in phase; the FSB-24 supports both shielded twisted-pair and dedicated alarm cable depending on detector type
• Coordinate bypass and maintenance procedures with the facility's life safety officer; document all manual overrides in the fire safety plan
• Verify AHJ approval for detector spacing and zone boundaries before final commissioning

The FSB-24 is a solid choice for integrators managing portfolios of commercial fire safety systems. Its straightforward zone architecture reduces commissioning time, and its proven Potter lineage ensures long-term parts availability and technical support.
