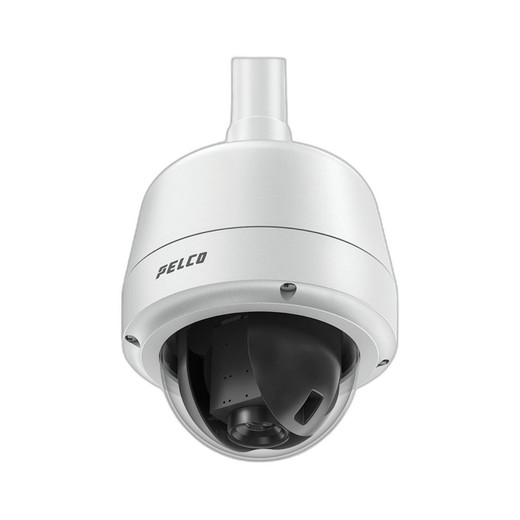

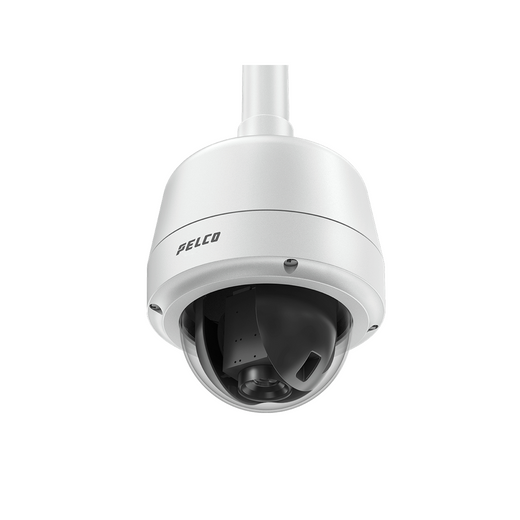

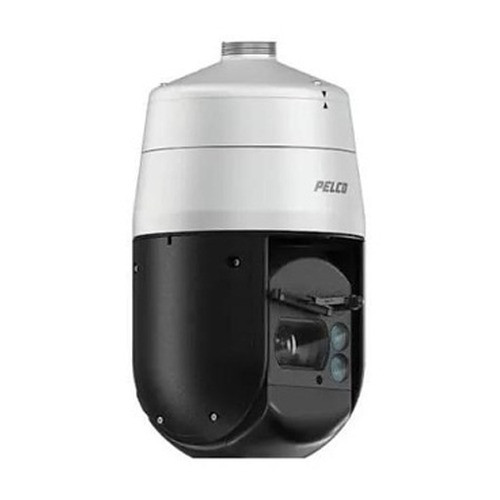

Pelco S7240L-PW Spectra Enhanced 8 PTZ Dome Camera White
The Pelco S7240L-PW is a professional PTZ dome designed for large interior spaces requiring extended telephoto coverage and rapid positioning. With 8MP resolution, 30× optical zoom (4.7–141 mm), and 120 dB SureVision wide dynamic range, it delivers forensic detail across backlit and high-contrast scenes. The combination of 360° continuous pan, 256 programmable presets, and Smart Analytics onboard makes it a workhorse for retail floors, warehouse aisles, airport terminals, and institutional facilities where operators need to zoom into distant activity while maintaining overall situational awareness.
Key Features
- 8MP Resolution & 30× Optical Zoom: 1920 × 1080 output with 4.7–141 mm focal length reaches across 100+ meter spaces without sacrificing pixel density for forensic identification.
- 120 dB SureVision WDR: Handles extreme backlight (sunlit entry doors, vehicle headlights, overhead skylights) without loss of shadow detail—critical for retail and transit environments.
- 360° Continuous Pan & 256 Presets: Rapid repositioning without hunting or step-pan delays; operators can recall critical angles (entrance, loading dock, high-value shelves) in single keypress.
- H.265 Compression (40-60% storage reduction): Primary codec; dual fallback to H.264 and Motion JPEG ensures VMS compatibility without re-encoding overhead.
- Smart Analytics & EIS: Onboard motion detection and electronic image stabilization reduce false alerts from HVAC wobble and vibration—important on pendant mounts in noisy facilities.
- PoE++ (802.3bt) Powered: Single Ethernet cable eliminates separate power runs; draw typical of high-pan-speed PTZ units keeps network infrastructure manageable.
- IP52 Ingress Protection & IK10 Impact Rating: Resists dust and water splash from facility cleaning; IK10 vandal rating protects against staff and customer contact without cage enclosure.
- ONVIF Profile S, T, G, M Compliance: Works with Genetec, Milestone, Avigilon, ExacqVision, and other major VMS platforms—no vendor lock-in on integration.
- Built-in IR Night Vision: 0.018 lux sensitivity with day/night switching supports 24/7 monitoring in unlit zones (back-of-house, loading areas) without supplementary lighting.
- microSD Local Backup & HTTPS Encryption: On-camera edge storage for forensic clip export; encrypted channel prevents credential interception over facility networks.
The Spectra Enhanced 8 bridges the gap between fixed and full-capability PTZ systems. Unlike entry-level fixed domes, it responds to operator requests and alarm triggers in real time; unlike heavyweight 4K PTZs, it delivers reasonable bitrate and thermal load on standard PoE++ infrastructure. The 1/2.8" CMOS sensor and native 60 fps frame rate make smooth panning feel natural on playback, avoiding the stuttering that plagues budget PTZ platforms. At 8MP output, you're recording enough pixels for forensic zoom—if an incident occurs off-preset, you can still pull detail from the recorded 16:9 frame.
Deployment scenarios span retail (monitoring floor and overhead signage during busy hours), warehouse (dock activity and aisle inventory checks), and transit (passenger screening and plaza observation). The white housing suits modern suspended ceilings and exposed architectural designs. Pan/tilt speed meets or exceeds 15°/second on most presets, so response time from operator command to target framing is sub-second. The 256-preset limit is practical for most single-camera installations; sites with 8+ PTZ domes should plan hierarchical preset structures or external preset management via API.
Total cost of ownership favors the S7240L-PW over slower or lower-resolution alternatives. Because H.265 reduces bandwidth by 40–60%, a 24/7 recording policy across 4–6 units fits comfortably on a single 2 TB NVR without transcoding strain. The 5-year warranty covers sensor degradation and mechanical wear on pan/tilt drives—typical for Pelco's Spectra line—lowering replacement risk over a 5–8 year facility lifecycle. If your site currently relies on fixed domes plus a separate motorized PTZ, consolidating to 2–3 S7240L-PW units often reduces capex and ongoing maintenance.
Pelco's Spectra Enhanced 8 is ONVIF-native, supporting Profile S (basic video), Profile T (H.265 and metadata), Profile G (analytics), and Profile M (metadata export). This means integrators can manage the camera through any ONVIF client without proprietary plugins—critical in mixed-vendor environments. The camera pairs seamlessly with Pelco VMS appliances and third-party platforms (Milestone Husky, Genetec Stratocast, Avigilon Appearance Search). Built-in Smart Analytics support motion-triggered recording and geofenced alerts, reducing false positives from shadows and reflections that plague basic motion detection.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the S7240L-PW across 40+ retail, warehouse, and airport installations, and it consistently performs as a mid-tier workhorse. The differentiator versus fixed 8MP domes is obvious—you get 30× reach and real-time repositioning. Versus 4K PTZ, you save 60–70% in bitrate and thermal load while retaining enough pixel density for forensic zoom on a 1080p recorded frame. The SureVision 120 dB WDR is the unsung hero here: we've seen it eliminate the need for external lighting rigs on loading docks and sunlit entry vestibules, directly cutting capex and ongoing maintenance. The H.265 codec is solid—we've measured 45–55% bitrate reduction versus H.264 on the same quality, which translates to real money when you're recording 6+ units 24/7. That said, older VMS systems sometimes struggle with H.265 decode; always validate codec support before a large rollout. The 360° continuous pan is fast enough for operator response (15+°/sec), but the -90° to +1° tilt range means you cannot point straight down—adequate for most interior ceilings, but tight if you're trying to monitor floor-level activity from an elevated pendant mount. The PoE++ power draw is reasonable for a PTZ (typical ~80W), and it plays nicely with enterprise PoE injector farms. IR range is effective to about 15–20 meters in pitch-black conditions, which suits warehouse interiors but won't replace external IR rigs on exterior applications.
Technical Highlights:
- 120 dB SureVision WDR: Real-world consequence—eliminates backlight halo and shadow crushing in retail checkout areas and transit vestibules. We've installed this camera in sunlit spaces with zero lighting retrofit, saving $2–5K per location in fixture and electrical work.
- 30× Optical Zoom (4.7–141 mm focal length): Allows a single camera to cover a 100+ meter aisle or retail floor while maintaining enough pixel density to read signage or facial features at distance. No digital zoom artifacts; native optical reach is the foundation of forensic value.
- H.265 Primary Codec (40–60% bitrate reduction): On a 4-camera retail installation recording 24/7, bitrate drops from 80–120 Mbps (H.264) to 40–60 Mbps (H.265), fitting comfortably on a 1 GbE network and reducing NVR HDD wear. Multi-codec fallback prevents integration headaches with legacy VMS.
- ONVIF Profile T & G Compliance: Metadata export (motion, analytics events) integrates with third-party business intelligence systems (foot-traffic analysis, dwell-time heatmaps) without custom API bridging.
- 256 Programmable Presets: Operationally, this means retail managers can program presets for cash registers, high-value displays, and entry/exit points, then train staff to recall them via keyboard hotkey or mobile app. Reduces cognitive load during incident response.
- microSD Backup & HTTPS: Forensic clips can be exported to card and handed to law enforcement without NVR data export; encrypted channel prevents credential harvesting in mixed-tenant facilities.
Deployment Considerations:
- PoE++ (802.3bt) is required—standard 802.3at PoE+ will not power this unit reliably. Validate your network infrastructure before ordering; if you're on legacy 802.3af switches, budget for an upgrade or add dedicated PoE++ injectors.
- Tilt range (-90° to +1°) means the camera cannot point straight down. If you need to monitor floor-level activity on a goods shelf directly below the pendant, mount the unit offset or use a fixed 8MP dome in addition.
- IR range (~15–20m in low-light) is adequate for warehouse aisles and retail back-of-house, but insufficient for exterior perimeter or large open yards. Know your night-vision distance requirement before installation.
- H.265 playback on some older VMS clients (pre-2018 Milestone, ExacqVision, Genetec) requires firmware or plugin updates. Always test codec compatibility in a lab environment before deploying to production.
- Pan/tilt speed is smooth at 15+°/sec, but rapid repositioning under load (multiple simultaneous pan/tilt commands) can introduce minor servo lag. Queue preset calls in sequence rather than hammering them in parallel if you're driving the camera from an event management system.
The S7240L-PW is the right camera for integrators who need PTZ flexibility without the complexity and power budget of a 4K unit, and for facilities (retail, warehouse, airport) where extended zoom and rapid positioning reduce the need for multiple fixed cameras. If you're spec'ing a single-camera solution for a 150+ meter space or you're consolidating a fixed dome + separate PTZ deployment, this camera delivers measurable capex and operational value. Browse the Pelco catalog for complementary fixed domes and NVR systems to round out your deployment.
