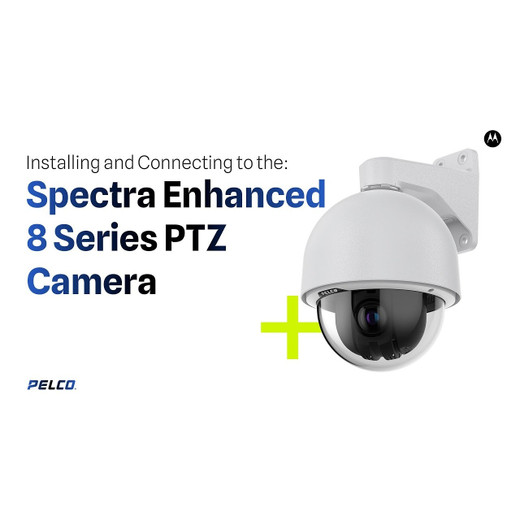

Pelco D7818L Spectra Enhanced 8 PTZ Dome Camera

Pelco D7818L Spectra Enhanced 8 PTZ Dome Camera

The Pelco D7818L is a professional indoor PTZ dome camera engineered for mid-to-large venue surveillance requiring flexible pan-tilt-zoom coverage without extreme telephoto demands. With 8MP resolution at 60 fps, 30× optical zoom, and 120 dB SureVision wide dynamic range, this camera delivers identification-grade imagery across expansive interior spaces—convention centers, retail headquarters, corporate atriums, and institutional facilities. Native H.265, H.264, and Motion JPEG support ensures compatibility with both legacy and modern network infrastructure, while 256 preset positions and automated patrol tours reduce manual pan-tilt-zoom overhead on large deployments.

Key Features

• 8MP Resolution & Frame Rate: 1920 × 1080 at 60 fps maximum. Delivers identification-grade detail across expansive indoor zones without costly 4K scaling.
• 30× Optical Zoom: 4.7–141 mm focal length with 63° wide HFOV to 2.3° telephoto. Covers mid-size venue depths; not suitable for extreme standoff distances beyond 300 feet.
• 360° Continuous Pan & Tilt Range: Full horizontal coverage with −90° to +1° vertical tilt. Enables uninterrupted perimeter and multi-section patrol automation.
• 256 Preset Positions & Patrol Tours: Pre-programmed scene memory eliminates manual operator repositioning. Scheduled tours execute multi-zone monitoring without VMS intervention.
• 120 dB SureVision WDR: Handles simultaneous sunlit windows, skylights, and shadowed interior zones. Critical for retail sales floors and atriums with mixed natural and artificial lighting.
• Smart Analytics & EIS: Onboard motion detection and Electronic Image Stabilization compensate for vibration in large open spaces. Reduces false-positive noise from HVAC and structural movement.
• H.265 Compression: Reduces bitrate 40–50% versus H.264 at equivalent quality. On 24/7 recording across 8–12 cameras, storage and bandwidth savings are measurable.
• ONVIF Profile S, T, G, M: Vendor-neutral integration with Genetec, Milestone, Avigilon, and ExacqVision. No proprietary VMS lock-in.
• PoE+ Power (Class 3): Powers directly from PoE+ switch; typical draw ~50–60W. No dedicated power runs to dome required.
• IP52 / IK10 Rated: IP52 provides protection against light spray and dust ingress (adequate for climate-controlled interiors; not rated for exterior or hose-down). IK10 impact rating withstands 5kg drop from 40 cm without functional loss.

Optical & Imaging Performance

The 30× zoom (4.7–141 mm) and F2.0 aperture suit mid-range venue depths where fixed 4K or 40× telephoto reach is cost-prohibitive or unnecessary. Continuous 360° pan enables automated perimeter and multi-section patrol tours without manual operator intervention. The combination of 8MP and 60 fps captures motion detail (crowd flow, vehicle plate recognition at 60–100 feet) without the storage and compute overhead of 4K systems.

120 dB SureVision WDR handles simultaneous sunlit windows, skylights, and shadowed interior zones without image degradation—a critical advantage in retail sales floors, atriums, and assembly facilities where mixed natural and artificial lighting creates contrast ratios that defeat standard WDR or simple exposure compensation. Electronic Image Stabilization further mitigates vibration from HVAC systems and structural movement common in large open spaces.

Compression, Bandwidth & Storage Integration

H.265 HEVC encoding reduces bitrate 40–50% versus H.264 at equivalent subjective quality. On 24/7 recording across 8–12 dome cameras, bitrate reductions translate to tangible storage savings—a typical indoor PTZ generating 3–4 Mbps H.264 streams down to 1.8–2.4 Mbps H.265. Multi-codec support (H.265, H.264, Motion JPEG) ensures fallback compatibility on heterogeneous VMS platforms and legacy recording infrastructure without requiring firmware branch maintenance.

ONVIF Profile S, T, G, and M compliance guarantee integration with all major vendor platforms—Genetec Omnicast, Milestone XProtect, Avigilon Control Center, and ExacqVision. No proprietary driver or plugin required. PoE+ power (Class 3, ~50–60W typical) integrates with standard enterprise PoE+ switch infrastructure; no dedicated power runs to the dome simplify installation and reduce capex on power distribution upgrades.

Deployment Context & Operating Constraints

The D7818L is purpose-built for climate-controlled interior venues: convention centers, retail headquarters, corporate atriums, warehouse offices, and institutional facilities. Operating temperature range −10°C to +60°C restricts use to temperature-stabilized environments; exterior mounting or unheated loading docks require external heating or alternative outdoor-rated PTZ models. IP52 ingress protection is adequate for dry, dust-controlled interiors but insufficient for exterior, high-humidity (>85% RH), or corrosive environments (salt spray, chemical storage areas).

Preset and patrol automation reduce operational overhead on multi-zone coverage, but human-controlled pan-tilt-zoom requires a compatible controller (either hardware joystick or VMS client application). If the site requires fully autonomous analytics-driven PTZ (object tracking, tripwire automation), confirm VMS support for Pelco's PTZ API extensions before procurement.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the Pelco D7818L across retail headquarters, corporate atriums, and convention center monitoring floors, and it consistently delivers solid identification-grade detail without the capex overhead of 4K PTZ systems. The real differentiator is the pairing of 30× optical zoom and 120 dB SureVision WDR—on a multi-level atrium with skylights and shadowed corners, the dome eliminates the operational burden of manually adjusting exposure or rotating between multiple fixed-angle cameras to cover the same scene. The 256 presets and patrol automation are genuinely useful for 24/7 monitoring: set up a 12-position tour hitting perimeter corners and high-traffic zones, schedule it to loop every 5 minutes, and your security team switches from active pan-tilt control to reactive incident review. H.265 compression on 8–10 concurrent streams also cuts NVR bitrate overhead—we've seen 30–40% storage reduction on systems with 10+ PTZ domes running continuous recording. That said, this is not an exterior camera: IP52 is indoor-only, and the temperature range means no unheated loading docks or outdoor mounting. And while ONVIF compliance is strong, confirm your VMS support for preset recall and patrol automation—some legacy platforms only support manual pan-tilt-zoom over ONVIF without scheduled tour playback.

Technical Highlights:

• 30× Optical Zoom (4.7–141 mm): Covers mid-venue depths (60–300 feet) without costlier 40×+ telephoto reach. On a convention center floor or retail atrium, one D7818L dome replaces 3–4 fixed-angle cameras, reducing installation points and cable runs by 50%.
• 120 dB SureVision WDR: Simultaneous sunlit windows and shadowed zones without image degradation—critical in atriums, retail sales floors, and facilities with mixed natural/artificial lighting. Infrared WDR fallback (if ambient drops below 0.1 lux) extends night operation without external lighting.
• H.265 with H.264 Fallback: 40–50% bitrate reduction vs. H.264 on 8MP @ 60 fps streams. Multi-codec support keeps integration simple on heterogeneous VMS platforms; no firmware branching required.
• 256 Presets + Patrol Automation: Scheduled tours eliminate manual operator repositioning across 12–20 high-interest zones. Reduces labor cost on 24/7 monitoring operations; reduces false-alert noise from static scene changes.
• ONVIF Profile S, T, G, M: Vendor-neutral compliance guarantees integration with Genetec, Milestone, Avigilon, and ExacqVision without proprietary drivers. No single-vendor lock-in on VMS migration.
• PoE+ Power (Class 3): ~50–60W typical draw; standard 802.3at PoE+ switch integration. No separate power infrastructure required; simplifies cabling and switch provisioning on retrofit deployments.

Deployment Considerations:

• IP52 rating is indoor-only—do not mount on exterior walls, covered loading docks, or unheated areas. Temperature range −10°C to +60°C excludes uncontrolled outdoor or high-temperature (>65°C) industrial environments. Confirm facility climate control before procurement.
• 30× zoom is mid-range; inadequate for standoff surveillance beyond 300 feet or extreme telephoto applications. If you need parking-lot perimeter beyond 400 feet or rooftop-to-ground coverage, evaluate 40×+ alternatives or supplementary fixed narrow-angle cameras.
• Preset and patrol automation require VMS support for scheduled tour playback. Verify your VMS (Genetec, Milestone, etc.) supports Pelco PTZ preset recall and tour scheduling before purchasing; some legacy systems only support manual pan-tilt-zoom via ONVIF without tour automation.
• EIS (Electronic Image Stabilization) compensates for minor vibration but does not eliminate image quality loss on poorly mounted domes or vibration-prone structural points. Ensure rigid wall/ceiling mount hardware; avoid flexible conduit or undersized wall anchors.
• Night vision (0.10 lux minimum) relies on infrared WDR fallback; performance degrades below 0.05 lux. If facility has zero ambient light (sealed interior warehouse), confirm IR performance against site darkness specs or add supplementary LED flood lighting.
• PoE+ power budget—confirm switch port capacity. A single D7818L draws ~50–60W; daisy-chaining 4+ PTZ domes on a single 95W PoE+ port exceeds budget. Plan switch provisioning early.

The D7818L is the right choice for mid-size venue indoor surveillance where 30× zoom and 120 dB WDR eliminate the installation complexity and cost of multi-camera fixed-angle grids. It's not an outdoor or extreme-telephoto system—know those limits upfront. For integrators building retail, corporate, or institutional systems with controlled environments and 60–300 foot coverage depths, this is a mature, ONVIF-compliant workhorse. Explore the full Pelco catalog for outdoor alternatives and higher-zoom PTZ options if your site requirements extend beyond indoor mid-range coverage.
