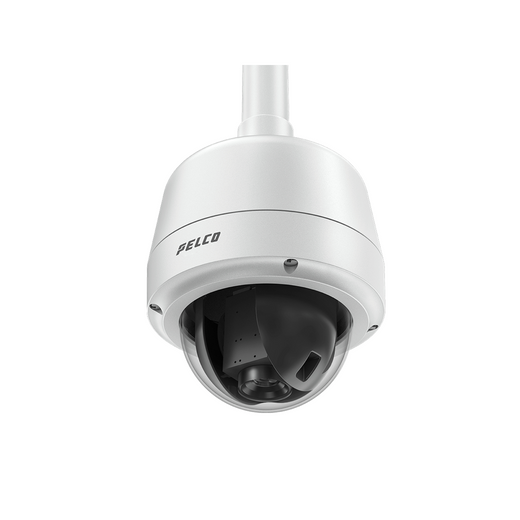

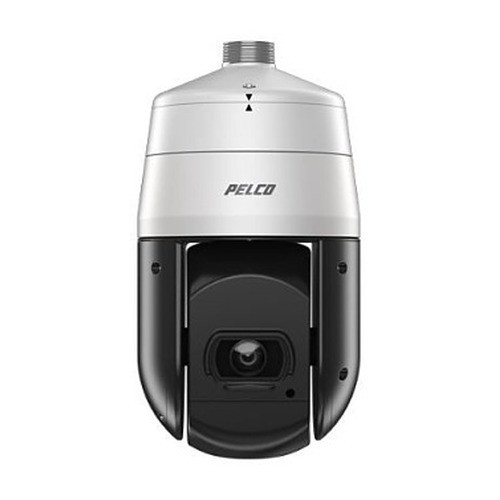

Pelco S7230L-PW Spectra Enhanced 8MP 30x PTZ Dome
The S7230L-PW is a professional pendant-mounted PTZ dome camera built on the Spectra Enhanced 8 platform. It delivers 8MP resolution paired with a 30× optical zoom lens, making it suitable for large indoor spaces and semi-outdoor environments where you need to capture facial features and object detail from distance without resorting to lossy digital zoom.
Key Features
- 8MP CMOS sensor (1/2.8") with 30× optical zoom (4.7–141 mm): Captures identification-grade detail across expansive coverage areas. The 63° wide horizontal field of view shrinks to 2.3° at full telephoto, allowing operators to pan rapidly between overview and detail without image degradation typical of digital zoom-only PTZs.
- 360° continuous pan with 256 preset positions: Eliminates pan limits; operators return to critical zones—entry points, loading docks, cash registers—in one command rather than hunting through joystick sequences. Tilt range from –90° to +1° covers ceiling-mounted and elevated wall deployments.
- 120 dB SureVision wide dynamic range: Handles extreme lighting contrasts—bright skylights falling on dark lobbies, or backlit entrance scenarios—by compressing the tonal range without crushing shadow detail or washing out highlights. Directly reduces the false-alarm rate from lighting transients that would trigger motion detection on lower-WDR cameras.
- Electronic Image Stabilization (EIS): Pendant-mounted cameras on suspended ceilings or flexible arm brackets can drift slightly with HVAC or foot traffic vibration. EIS compensates electronically, keeping video crisp without mechanically locking the mount.
- H.265 compression (with H.264 and Motion JPEG fallback): H.265 cuts storage and bandwidth overhead by 40–60% versus H.264 at equivalent quality. On a 24/7 multi-camera deployment, this translates to meaningful NVR capacity savings or extended retention windows without additional disk.
- ONVIF Profile S, T, G, and M compliance: Integrates with any ONVIF-certified video management system (Milestone, Genetec, Hanwha Wisenet, etc.) without proprietary plug-ins or licensing surprises. Profile G adds metadata and analytics; Profile M enables mobile device streaming.
- PoE++ (802.3bt) powered at up to 60 W: Draws significantly more than standard PoE+ cameras, but 802.3bt switches (becoming standard in enterprise refreshes) deliver the power over a single Ethernet cable. No separate 12 VDC PSU or cable runs required. Verify your switch supports 802.3bt Class 4 before deploying.
- IP52 ingress protection and IK10 impact rating: IP52 resists dust and spray but is not submersion-rated; suitable for semi-outdoor covered areas (overhangs, loading-dock canopies) but not direct rainfall or high-pressure wash-downs. IK10 (20 J impact) withstands vigorous bumps and contact without optical misalignment—relevant for accessible pendant mounts.
- Day/night capability with built-in IR: Integrated infrared illumination extends usability into low-light and nighttime scenes. Actual IR range is not specified in available documentation, so confirm illumination distance during site surveys.
- Built-in smart analytics and motion detection: On-camera processing reduces false alerts by filtering wind, shadows, and lighting changes. Lowers management overhead and bandwidth drain from unnecessary clip uploads or alert notifications.
- Operating range –10°C to +60°C: Handles typical office and indoor commercial environments. Does not cover deep-cold outdoor storage or extreme-heat industrial furnace rooms; select a hardened variant if needed.
Integration & Compatibility
The S7230L-PW integrates with PTZ camera control systems that support ONVIF. Install it alongside standard IP cameras in a mixed-sensor architecture without requiring separate management consoles or encoding gateways. Verify your NVR or recording platform licenses ONVIF clients if you plan more than a handful of simultaneous streams.
Pendant mounting suits exposed or drop-ceiling installations. For wall-mounted deployments, verify the mounting surface can support the camera's weight and withstand continuous pan/tilt torque. Consult the installation guide (available from the manufacturer) before drilling or fastening.
When to Choose a Different Model
If you need compact fixed-view coverage in tight spaces, a fixed-dome camera offers simpler installation and lower power draw. If the space requires PTZ but extreme IP67 submersion rating (e.g., outdoor car wash or humid refrigerated environments), the S7230L-PW's IP52 rating falls short—consider a fully sealed outdoor PTZ variant. If your network lacks 802.3bt switches, PoE++ power delivery will force an upgrade or dual-power configuration, adding cost and wiring complexity.
Deployment Context
The S7230L-PW excels in retail command centers, airport terminals, warehouse inventory zones, and multi-floor office lobbies where operators need overview coverage plus rapid zoom-in for incident review. The white dome housing blends into modern commercial ceilings. For scenarios requiring covert or weatherproof operation, other form factors or outdoor-rated units are better fits.
Frequently Asked Questions
Q: Does the S7230L-PW support two-way audio?
A: Product documentation provided does not list audio input or speaker output. Confirm audio capability with the manufacturer or a pre-sales engineer before assuming two-way communication.
Q: What is the warranty period on the S7230L-PW?
A: The manufacturer provides a 5-year warranty covering defects in materials and workmanship under normal operating conditions.
Q: Can I integrate the S7230L-PW with Milestone XProtect?
A: Yes. The S7230L-PW is ONVIF Profile S, T, G, and M compliant. Milestone XProtect supports ONVIF Profile S and T natively. Consult Milestone's compatibility matrix to confirm the XProtect version you are running supports this camera's metadata or analytics features.
Q: What 802.3bt switch should I use to power the S7230L-PW?
A: Any enterprise-class PoE++ switch rated for 802.3bt Class 4 (60 W minimum per port) will supply the required power. Verify the switch's per-port power budget and total chassis power capacity can sustain simultaneous high-draw cameras. Popular choices include Cisco Catalyst 9xxx series, Arista CloudVision, and Juniper EX series, but confirm specifications with your network team.
Q: Can the S7230L-PW be wall-mounted instead of pendant-mounted?
A: The S7230L-PW is designed for pendant (downward-facing) ceiling mounting. Wall-mounting is not recommended without engineering review, as pan/tilt torque and vibration behavior will differ. Consult the manufacturer or an integrator before attempting wall installation.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The S7230L-PW is a solid choice for large indoor spaces where operators need both area coverage and rapid zoom-to-detail capability. The 8MP sensor and 30× optical zoom deliver identification-grade resolution at distances where 2MP or 4MP PTZs struggle. The 360° continuous pan is a practical win—no more pan-limit dead zones, and the 256 presets let operators return to critical coverage points instantly. H.265 compression with 60 W PoE++ operation makes this a modern, network-efficient platform, but infrastructure readiness matters.
Technical Highlights:
- 30× optical zoom (4.7–141 mm) with 2.3° tele and 63° wide: The zoom ratio allows operators to shift from overview (hallway, loading dock entrance) to detail (facial features, badge reading) in seconds without waiting for pan/tilt repositioning. The 2.3° telephoto field is tight enough that slight hand vibration or HVAC movement demands either gyroscopic stabilization or the listed Electronic Image Stabilization—which this camera provides.
- 120 dB SureVision WDR: Handles 120 dB dynamic range, which covers scenarios like a lobby with bright external glass and dark interior furniture. Without it, you'd either blow out the glass or crush the interior into black. The benefit: fewer false motion alerts triggered by lighting transients, and clearer video for forensic review.
- PoE++ at 60 W via 802.3bt: This is not a 12.95 W camera—it draws meaningfully from the switch. If your infrastructure still runs older PoE+ switches (30 W max), you'll need to upgrade the switch or deploy a separate PSU. Plan accordingly during the bid phase.
- ONVIF Profile S, T, G, and M: Full compliance means this integrates cleanly with Milestone, Genetec, Hanwha, or any ONVIF-capable platform without custom drivers. The multi-profile support future-proofs you against analytics upgrades (Profile G adds metadata, Profile M enables mobile).
Deployment Considerations:
- Pendant mounting is the design case. Wall-mounting or corner mounting will change the vibration profile and may introduce PTZ hunting or resonance; avoid improvisation without testing.
- IR capability is listed but illumination range is unspecified. If nighttime monitoring at distance is critical, request IR test results or conduct a site survey before final sign-off.
- IP52 is spray-resistant, not submersion-rated. Semi-outdoor covered areas work fine; exposed rain exposure requires a protective housing or a full IP67 PTZ variant.
Deploy this in command centers, large retail floors, or warehouse inventory zones where operators actively use pan/tilt/zoom during live monitoring. If you need 24/7 passive recording of fixed zones, a multi-sensor fixed-dome architecture will cost less and consume less power. The S7230L-PW shines when human operators are actively managing the view.
