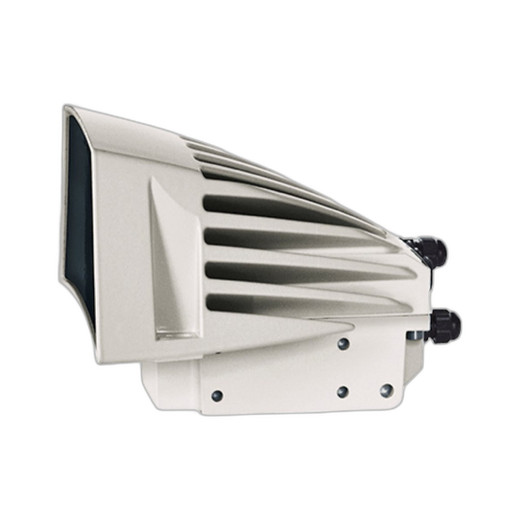

Pelco IRN10B9AS00 940nm Covert IR Illuminator
The Pelco IRN10B9AS00 is a professional-grade 940nm covert infrared illuminator engineered for long-range perimeter and fence-line surveillance. With a narrow 9-degree beam angle and approximately 140-meter maximum range, this stainless steel unit delivers invisible illumination critical for covert security applications. Operating at 940nm wavelength ensures zero visible glow—essential for installations requiring undetectable IR output on extended perimeters, access roads, and critical approach corridors.
Key Features
- 940nm wavelength for completely covert operation
- 9-degree narrow beam angle for concentrated, long-range illumination
- Approximately 140-meter maximum effective range
- Stainless steel housing for environmental durability
- Multi-voltage input: 24 Vac or 12/24 Vdc compatibility
- NDAA Section 889 compliant for government and regulated deployments
Technical Specifications
Wavelength: 940nm (invisible to human eye)
Beam Angle: 9 degrees
Maximum Range: Approximately 140 meters
Housing: Stainless steel
Power Input: 24 Vac or 12/24 Vdc
Warranty: 5-year warranty
Applications
Ideal for covert perimeter monitoring, fence-line surveillance, critical access corridor protection, and long-range security deployments where invisible illumination is required. Mount co-axially with or adjacent to the camera for optimal alignment and beam coverage matching.
Important Compatibility Note
The 940nm wavelength is less efficiently detected by CMOS sensors compared to 850nm illuminators. Verify your camera's sensitivity specifications at the required operating range before deployment. For shorter covert coverage (approximately 80 meters), the IRN30B9AS00 offers the same 9-degree beam angle at reduced output power.
