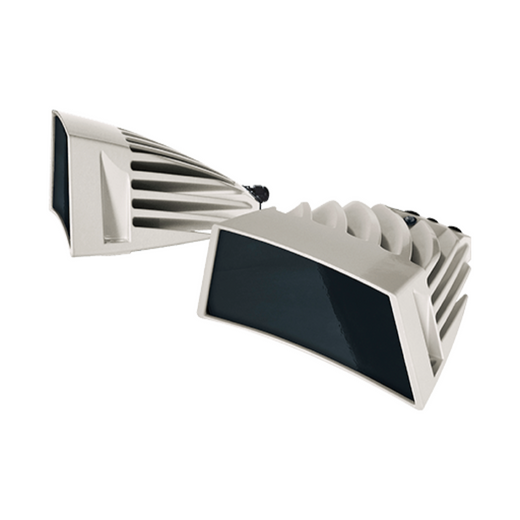

Pelco UPTIRN309A00 940nm Covert IR Illuminator
The Pelco UPTIRN309A00 is a covert 940nm infrared illuminator engineered for integration with the ULISSE pan-tilt platform. Delivering a 30-degree beam that synchronizes with camera movement across patrol presets, this accessory provides invisible nighttime coverage while maintaining operational security and concealing camera position.
Key Features
- 940nm wavelength—invisible to the human eye for covert surveillance
- 30-degree beam angle balancing mid-range throw with effective angular coverage
- Tracks seamlessly with ULISSE positioning head across preset patterns
- Dual power support: 24 Vac or 12/24 Vdc operation
- NDAA Section 889 compliant for government and regulated installations
- 5-year warranty coverage
Technical Specifications
Wavelength: 940nm (covert infrared)
Beam Angle: 30 degrees
Power Options: 24 Vac or 12/24 Vdc
Compatibility: ULISSE pan-tilt platforms
Classification: Accessory / IR Illuminator
Compliance: NDAA Section 889
Integration & Considerations
Mount directly on or adjacent to the ULISSE positioning head. Verify mechanical compatibility with your specific ULISSE variant before ordering. Note: 940nm output reduces CMOS sensor efficiency by approximately 40–50% compared to 850nm alternatives. Confirm your camera's sensor sensitivity meets identification range requirements at your deployment distance. For extended long-range concentration, the 10-degree UPTIRN109A00 option provides tighter beam focus. Applications without covert requirements should default to 850nm models for improved sensor performance.
Applications
Ideal for enterprise security, government installations, perimeter monitoring, critical infrastructure protection, and covert surveillance operations requiring invisible infrared illumination and synchronized pan-tilt tracking.
