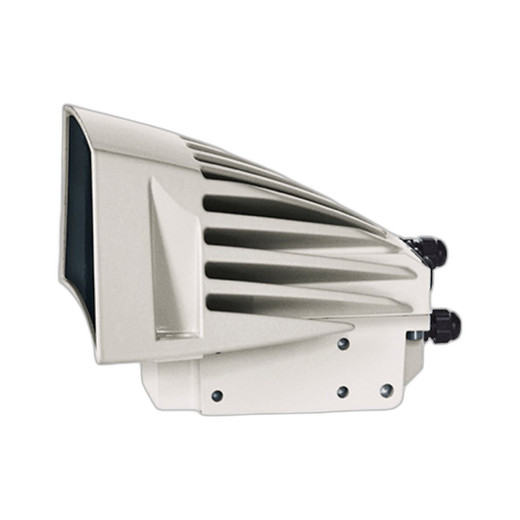

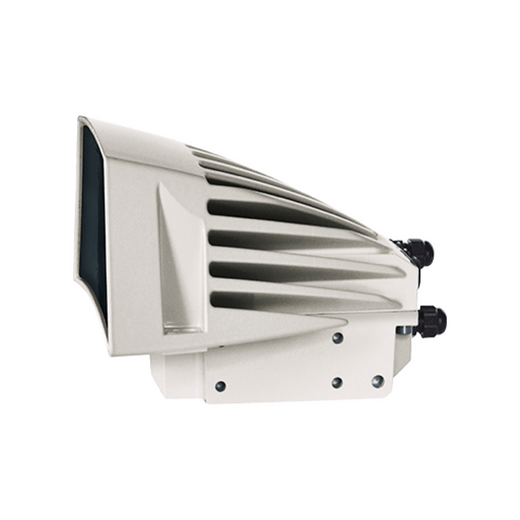

Pelco IRN60A9AS00 940nm Covert IR Illuminator

Pelco IRN60A9AS00 940nm Covert IR Illuminator

The Pelco IRN60A9AS00 is a covert 940nm infrared illuminator engineered for wide-area nighttime surveillance. With a 60-degree beam angle and approximately 60-meter maximum range, this AC-powered accessory floods broad outdoor zones with invisible illumination from a single mounting point, making it ideal for comprehensive perimeter coverage without visible light emission.

Key Features

• 940nm wavelength for covert operation
• 60-degree wide beam angle for expansive coverage
• ~60-meter maximum illumination range
• 100–240 Vac wide-range mains input; direct AC connection eliminates external DC power supplies
• NDAA Section 889 compliant for regulated deployments
• 5-year warranty

Technical Highlights

The 60-degree beam aligns with typical wide-angle camera lenses, covering parking areas, courtyards, and building exteriors in a single sweep. Direct mains connection simplifies installation and reduces system complexity. Mount the illuminator adjacent to or co-axially with your paired Pelco camera for optimal alignment.

At 940nm, sensor response is lower than 850nm alternatives; verify your camera's performance specifications at the required operational range before deployment. For extended-range applications, consider the 30-degree variant (IRN30A9AS00, ~80m) or 10-degree variant (IRN10A9AS00, ~140m). For low-voltage installations, the IRN60B9AS00 operates on 24 Vac or 12/24 Vdc.

Applications

• Parking lot and perimeter surveillance
• Outdoor facility monitoring
• Building exterior coverage
• Enterprise and government security installations
