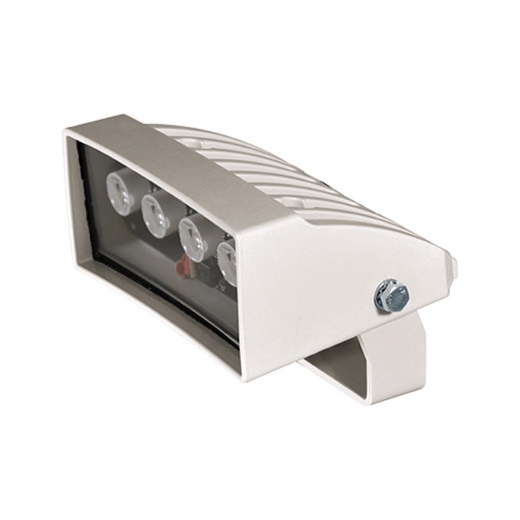

Pelco IRH30H8A High-Power 850nm IR Illuminator

Pelco IRH30H8A High-Power 850nm IR Illuminator

The Pelco IRH30H8A is a high-power infrared illuminator designed to extend night vision range beyond standard camera onboard IR capabilities. Operating at 850nm wavelength with a concentrated 30-degree beam angle, this illuminator delivers effective illumination to 84 meters—a significant performance gain over lower-power alternatives like the IRH30L8A (60m range).

Key Features

• High-power 850nm IR LED technology for extended range performance
• 30-degree narrow beam angle concentrates output for maximum distance
• 84-meter maximum illumination range
• Triple voltage input: 12 Vdc, 24 Vdc, or 24 Vac
• NDAA Section 889 compliant for government installations
• 5-year warranty backed by Pelco global support network

Technical Highlights

The narrow 30-degree beam concentrates infrared output for optimal long-range performance in challenging low-light environments. Flexible input voltage options simplify field deployment across diverse power infrastructures. The 850nm wavelength provides proven performance with modern surveillance cameras while maintaining excellent range characteristics.

Applications

Ideal for security installations requiring extended night vision coverage beyond perimeter boundaries. Compatible with Pelco camera systems and professional surveillance deployments in commercial, industrial, and government applications. Pairs effectively with wide-angle cameras needing supplemental far-field illumination.
