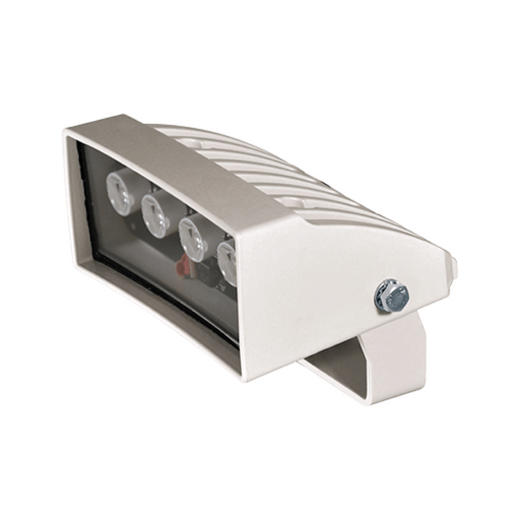

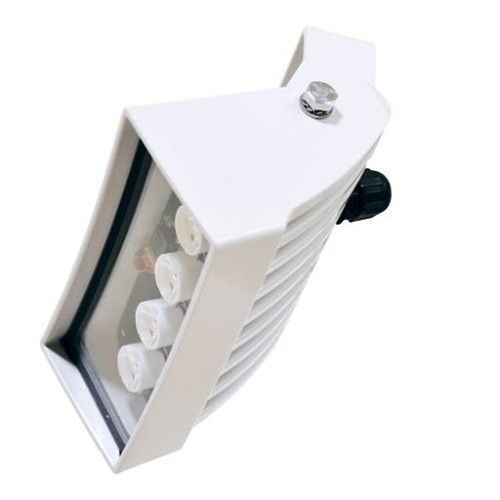

Pelco IRH60H8A High-Power 850nm IR Illuminator 56m

Pelco IRH60H8A High-Power 850nm IR Illuminator 56m

The Pelco IRH60H8A is a high-power 850nm infrared LED illuminator designed to extend night vision capability across wide surveillance areas. With a 60-degree beam angle and 56-meter maximum range, this accessory delivers 40% greater output than the standard IRH60L8A model, making it ideal for applications requiring extended IR coverage without sacrificing beam width.

Key Features

• 850nm infrared wavelength for optimal low-light performance
• 60-degree beam angle for broad scene illumination
• 56-meter maximum effective range
• High-power output 40% greater than standard models
• Triple input voltage support: 12 Vdc, 24 Vdc, or 24 Vac
• NDAA Section 889 compliant for government and regulated installations
• 5-year warranty

Technical Highlights

The IRH60H8A's wide 60-degree beam pattern matches wide-angle camera fields of view, delivering uniform IR illumination across large areas. The flexible input voltage design eliminates the need for separate power conditioning in most field installations. For applications requiring concentrated long-range output, Pelco offers the IRH30H8A alternative with a 30-degree beam and 84-meter range.

Ideal Applications

Loading docks, parking facilities, building perimeters, and entrance areas benefit from the balanced coverage of this illuminator. Enterprise installations requiring NDAA compliance for federal or regulated environments will find this unit suitable for seamless integration with existing Pelco camera systems.
