Discontinued — No Longer Available New
This model has been discontinued by Pelco. Shop current Pelco products → or see the recommended alternatives below.

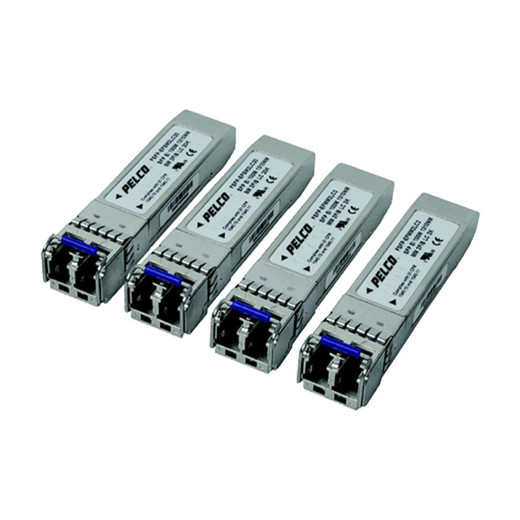

Pelco FSFP-BFSM1LC20 WDM SFP B-Side SM 1550nm LC 20km
The Pelco FSFP-BFSM1LC20 is a Fast Ethernet WDM SFP transceiver module designed for single-fiber bidirectional communication over extended distances. Operating at 1550 nm on the B-side with a maximum reach of 20 km, this module transmits over a single single-mode fiber strand using an LC simplex connector, significantly reducing fiber infrastructure requirements for long-distance surveillance and security deployments.
Key Features
- WDM SFP transceiver for single-fiber bidirectional operation
- 1550 nm transmission wavelength (B-side)
- 100 Mbps Fast Ethernet performance
- 20 km maximum reach over single-mode fiber
- LC simplex connector
- Requires pairing with FSFP-AFSM1LC20 (A-side, 1310 nm TX) for full duplex
- NDAA Section 889 compliant
- 5-year warranty
Technical Highlights
This B-side module leverages wavelength division multiplexing (WDM) technology to enable full-duplex communication across a single fiber strand—halving fiber consumption compared to traditional two-fiber deployments. The 1550 nm wavelength pairs with the complementary A-side unit transmitting at 1310 nm, allowing simultaneous bidirectional data flow.
Applications
Ideal for extended campus perimeters, inter-building security links, and distributed surveillance system deployments where fiber strand availability is limited. Suitable for enterprise security installations requiring NDAA compliance. Compatible with Pelco camera systems and professional security infrastructure.
Integration Requirements
Requires single-mode fiber and LC simplex connectors. Must be paired with FSFP-AFSM1LC20 unit at the opposite end. Verify SFP slot compatibility with your hardware. This module supports 100 Mbps applications; Gigabit single-fiber requirements need alternative SFPs.
