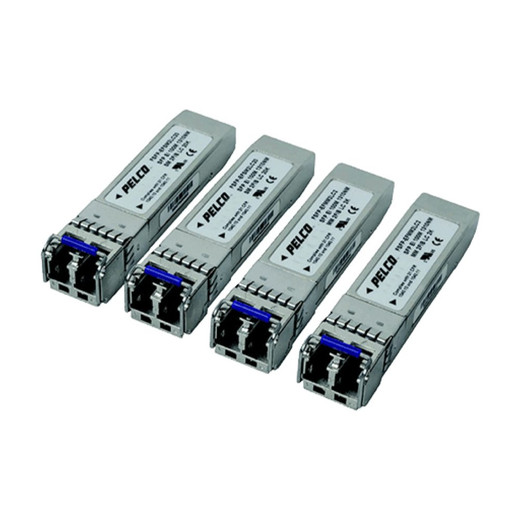

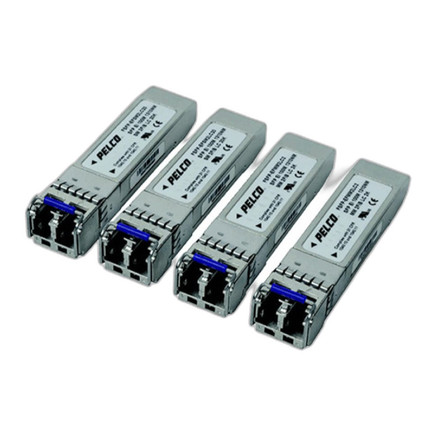

Pelco FSFP-AFSM1LC20 WDM SFP Transceiver Module
The Pelco FSFP-AFSM1LC20 is a Fast Ethernet WDM SFP transceiver designed for long-distance single-fiber video and data transmission in security and surveillance deployments. This A-side module transmits at 1310nm over single-mode fiber with LC simplex connectors, achieving a maximum reach of 20km. When paired with the complementary B-side unit (FSFP-BFSM1LC20, 1550nm TX), it enables full-duplex 100 Mbps communication over a single fiber strand, significantly reducing infrastructure costs on extended-distance runs.
Key Features
- WDM technology enables bidirectional communication over one fiber strand
- 1310nm transmission wavelength optimized for single-mode fiber
- 20km maximum reach for extended perimeter and inter-building links
- LC simplex connector for compatibility with standard single-mode installations
- 100 Mbps Fast Ethernet performance
- Requires pairing with FSFP-BFSM1LC20 B-side unit for full operation
- NDAA Section 889 compliant for government and regulated facilities
Technical Highlights
This module is engineered for professional surveillance and security camera systems where extended cable runs exceed standard duplex fiber capabilities. Single-fiber WDM architecture conserves valuable fiber strands across campus networks, remote sites, and perimeter installations. The module integrates seamlessly with Pelco camera systems and enterprise deployment standards, delivering reliable performance in commercial and industrial surveillance applications.
Applications
- Extended-distance camera system installations
- Inter-building video transmission
- Remote site surveillance links
- Government and NDAA-compliant facilities
- Single-fiber backbone networks
Note: Requires single-mode fiber and compatible SFP slot availability at both ends. Verify hardware compatibility before ordering.
