Discontinued — No Longer Available New
This model has been discontinued by Pelco. Shop current Pelco products → or see the recommended alternatives below.
Pelco FEXTPS-48V 48Vdc Fiber Extender Power Supply
The Pelco FEXTPS-48V is a regulated 48 Vdc power supply designed specifically for Pelco fiber extender modules. This essential accessory delivers the DC power required by fiber extenders that bridge IP camera Ethernet signals across fiber optic links, enabling surveillance deployments far beyond the standard 100-meter copper cable limitation.
Key Features
- 48 Vdc regulated output for Pelco fiber extender units
- Enables extended fiber optic runs for IP camera signals
- Indoor installation rated
- NDAA Section 889 compliant for government and regulated environments
- 1-year manufacturer warranty
Technical Specifications
- Output Voltage: 48 Vdc
- Part Number: FEXTPS-48V
- Type: Power Supply / Power Accessory
- Classification: Accessory
- Installation: Indoor only
- Warranty: 1-year
Application & Deployment

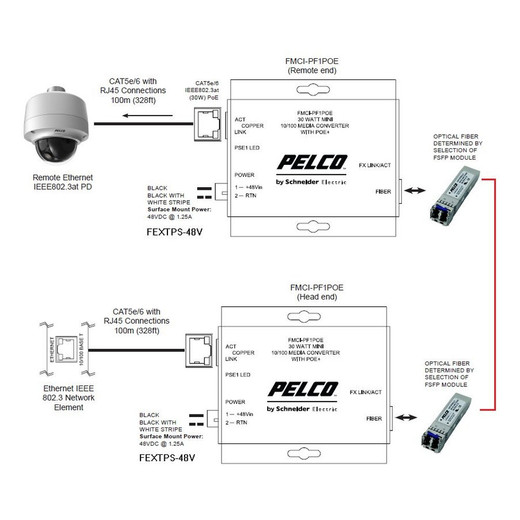

The FEXTPS-48V is essential for fiber extender deployments where camera-end power is required. Fiber extenders at the camera location need local power to convert and bridge Ethernet signals across long fiber optic runs. This supply provides the regulated 48 Vdc input that fiber extender modules demand. Before ordering, confirm that your specific Pelco fiber extender model requires 48 Vdc input, as other extender variants may operate on different supply voltages. Size your AC circuit to accommodate the supply draw with adequate headroom for safe operation.
Ideal for enterprise surveillance installations, government deployments, and industrial monitoring applications requiring extended cable runs beyond traditional copper limits.
