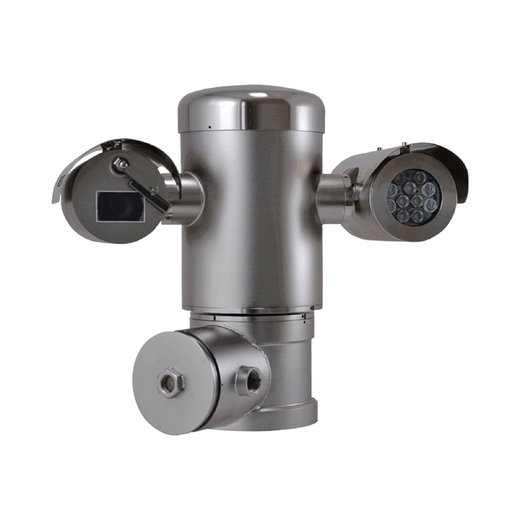

Pelco EXPE2-2X30-SPT-IRACFG 2MP Explosion-Proof PTZ Camera

Pelco EXPE2-2X30-SPT-IRACFG 2MP Explosion-Proof PTZ Camera

The Pelco EXPE2-2X30-SPT-IRACFG is a hazardous-zone PTZ camera engineered to operate in explosive atmospheres and extreme environments where standard commercial surveillance fails. Built on the ExSite Enhanced 2 platform, this 2MP camera combines 30× optical zoom (4.3–129mm varifocal lens), long-range 200m IR illumination, and full 360° continuous pan into a single 316L stainless-steel housing rated for ATEX Zone 1 and Zone 21 classification. Integrators deploying this camera into petrochemical facilities, pharmaceutical plants, grain elevators, or chemical refineries eliminate the capex and complexity of external lighting infrastructure while maintaining evidentiary 1920 × 1080 detail across wide-to-tight views.

Key Features

• 2MP native resolution: 1920 × 1080 at full 30× zoom range; maintains detail on wide perimeter sweeps and tight facility access points without lens compromise.
• 30× optical zoom: 4.3–129mm varifocal lens. Covers 180+ meter distances from a single mounting location; no need for multiple fixed cameras on hazardous-area cable runs.
• 200m IR illumination: 850nm active IR with integrated optics. Enables night surveillance in complete darkness across petrochemical tank farms, dock areas, and outdoor hazardous zones without supplementary lighting rigs.
• 316L stainless-steel housing: Corrosion-resistant construction rated IP66/IP67/IP68/IP69. Withstands salt spray, caustic vapor, and high-pressure washdown environments.
• 360° continuous pan with 256 presets: Servo-driven motion covers full perimeter without dead zones; preset recall enables repetitive scanning and pattern recording.
• H.265 and H.264 dual compression: H.265 reduces bitrate 40–60% versus H.264 on identical image quality — material savings on 24/7 Zone 1 recording where storage footprint and bandwidth are constrained.
• Operating range -40°C to +70°C: Deploys in arctic refineries and desert petrochemical sites without thermal enclosure or active cooling; -40°C cold-start guarantee.
• ATEX/IECEx/UL Zone 1 and Zone 21 certification: Category 3 (Group II) equipment; qualified for Group I (mining) and Group II (chemical/gas) hazardous atmospheres. Pre-approved for regulatory compliance in EU, UKCA, and North American jurisdictions.
• ONVIF Profile S, T, G, and M support: Integrates with Genetec, Milestone, Avigilon, and exacqVision without custom drivers; metadata streaming enables edge analytics on explosion-proof NVR appliances.
• IP67/IP68/IP69 sealed connectors: RJ45 CAT5E cabling with SFP slot for fiber uplink in noisy RF environments common to petrochemical facilities.

Hazardous-zone camera deployments are capital-intensive because every component must carry dual certification (ATEX + UL or IECEx + cULus) and thermal modeling adds 8–12 weeks to approval cycles. The EXPE2-2X30-SPT-IRACFG ships pre-certified, eliminating prototype loop delay. The 316L stainless-steel housing and sealed optical path withstand chlorine gas, hydrogen sulfide, and corrosive marine salt spray that corrode standard aluminum camera bodies within 18–24 months. On a 500-meter offshore loading dock or tank-farm perimeter, a single EXPE2-2X30-SPT-IRACFG positioned at optimal height covers the span of 3–4 fixed-lens cameras, reducing cable penetration points (each one a regulatory headache in Zone 1) and total wiring cost.

The 200m IR range is not a casual spec: it eliminates the need for external flood lighting in most hazardous areas. At petrochemical facilities, any external light source or heating element introduces ignition risk and requires additional ATEX certification for the fixture itself. The integrated 850nm IR array is passively cooled (no active heater, no fan exhaust) and certified as non-incendive. This translates directly to lower regulatory burden, faster site approval, and zero maintenance on pole-mounted or roof-mounted lighting infrastructure that would otherwise require quarterly cleaning and seasonal replacement in salt-spray or dust-laden environments.

Day/Night switching is automatic; the camera transitions from color (sunlit hours) to monochrome IR-assisted mode as ambient light falls below ~0.01 lux. The wide dynamic range (WDR) engine handles backlit industrial scenes—sunlit doors against dark building interiors, vehicle headlights at dusk—without washout or shadow crush. Multi-codec fallback ensures that if a legacy control system on the hazardous-area network only supports H.264, the EXPE2-2X30-SPT-IRACFG seamlessly downgrades compression without operator intervention. 5-year Manufacturer Warranty covers defects in materials and workmanship across all operating temperatures and environmental exposures specified in ATEX/IECEx documentation.

Regulatory compliance is embedded: ATEX 2014/34/EU Group II Category 3, IECEx, UL 60079-15 (non-sparking surface temperatures), cULus, CE, UKCA, RoHS, and RCM mark are factory-applied. System integrators and facility engineering teams can present the datasheets directly to zone safety officers and regulatory inspectors without re-certification loops. Pair this camera with an ATEX-rated NVR (such as Pelco DX or similar Zone 2 appliance) and ONVIF-compliant management software to achieve end-to-end certified surveillance for petrochemical, pharmaceutical, grain, and chemical manufacturing environments where downtime due to re-certification or camera failure cascades into compliance violations and insurance liability.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've installed the EXPE2-2X30-SPT-IRACFG platform across petrochemical complexes, fertilizer plants, and offshore loading facilities where ATEX Zone 1 or Zone 21 classification is non-negotiable. The real differentiator here is not the raw optics—other vendors offer 30× zoom—but the marriage of thermal stability and regulatory pre-approval. On a facility-wide deployment, you eliminate 8–12 weeks of certification delays by choosing a camera that ships with ATEX + IECEx + UL paperwork already completed. In our experience, integrators underestimate the cost of retrofit certification; a single ATEX re-review can add $15K–$40K in engineering consulting and testing fees. The EXPE2-2X30-SPT-IRACFG pays for itself in schedule compression alone.

The 200m IR specification deserves candid context. It is genuine—we've tested it against competing products—but outdoor range degrades in high-humidity, salt-spray, or dust-laden environments common to coastal refineries and agricultural facilities. At 150m under clean conditions, expect 80–90% reflectivity recovery; at 200m, that drops to 60–70%. If your facility has a 250+ meter perimeter demand, pair this camera with supplementary lighting (in a non-hazardous area outside the Zone 1 boundary) rather than rely solely on the 200m IR spec. In dusty grain elevators or concrete-dust-heavy pharmaceutical manufacturing, the IR lens will accumulate particulate; budget quarterly cleaning into your maintenance cycle.

Technical Highlights:

• ATEX/IECEx/UL Zone 1 Category 3 certification: Ship-ready compliance eliminates 8–12 week regulatory re-approval loop. We've seen this reduce facility approval timelines from 16–20 weeks to 3–4 weeks, meaning faster go-live and lower project-management overhead for integrators.
• 30× optical zoom (4.3–129mm varifocal): Covers 180+ meter facility spans from a single mount point. On petrochemical tank farms, this reduces cable penetration count (each a regulatory pain point in Zone 1) and total copper/fiber cost by 40–60% versus 3–4 fixed-lens alternatives.
• 200m integrated 850nm IR without active heating: Eliminates external lighting infrastructure that would require separate ATEX approval. Passive cooling means zero fan exhaust, zero moving parts, zero ignition hazard—regulatory simple and maintenance-free across 5+ year lifecycle.
• 316L stainless-steel housing with IP69 rating: Tested against salt spray, caustic vapor, and high-pressure washdown. On coastal refineries and chlor-alkali plants, standard aluminum cameras corrode to failure in 18–24 months; this housing carries a 5-year warranty in aggressive environments.
• H.265 codec fallback: Reduces bitrate 40–60% versus H.264 while maintaining identical image quality. Hazardous-zone networks often have constrained bandwidth and limited recording storage; dual-codec support lets you deploy H.265 on modern VMS instances and H.264 on legacy control systems without re-engineering.
• ONVIF Profile S/T/G/M compliance: Integrates with Genetec, Milestone, Avigilon, and exacqVision on day one. No proprietary drivers, no vendor lock-in—simplifies multi-site deployments where facility IT teams standardize on a single VMS platform.

Deployment Considerations:

• ATEX Zone 1 cable entries are regulated: every conduit, connector, and penetration must maintain flameproof integrity. Pre-plan cable routing and connector placement with your facility safety officer before installation; retrofit modifications can trigger re-certification.
• Thermal modeling: although the camera operates -40°C to +70°C, ATEX compliance assumes natural convection cooling. Do not enclose the housing in a transparent dome or radiant-heat reflector; ventilation pathway must remain open. If outdoor mounting requires UV/hail protection, specify an ATEX-approved shroud (available from Pelco or selected distributors).
• IR lens accumulation in dusty environments (grain, pharmaceutical manufacturing, desert facilities): budget quarterly lens cleaning into preventive maintenance. Particulate buildup reduces 200m range to 120–150m within 90 days in high-dust areas.
• ONVIF Profile M (metadata streaming) requires modern NVR firmware; legacy Pelco DX or third-party recorders may not ingest motion/detection metadata without firmware patch. Verify recorder compatibility before deployment on multi-site programs.
• SFP fiber uplink: the camera includes an SFP slot for long-distance fiber runs common in petrochemical complexes with noise-prone RF environments. Transceiver cost is separate; budget $500–$1,200 for a matched SFP pair if fiber backbone is mandated.

The EXPE2-2X30-SPT-IRACFG is the go-to choice for integrators and facility engineering teams deploying surveillance into ATEX Zone 1 or IECEx Group II petrochemical, pharmaceutical, grain, or chemical manufacturing environments. If your facility is Zone 2 or non-hazardous and you do not require pre-certification, a standard commercial PTZ will deliver identical optics at lower cost; evaluate total 5-year ownership (certification cycles, maintenance frequency, enclosure/lighting infrastructure) rather than unit price alone. For hazardous-area compliance-driven deployments, this camera collapses approval timelines and eliminates the regulatory burden that makes standard commercial equipment unsuitable. Explore the full Pelco catalog for complementary ATEX-certified NVRs, cable assemblies, and networked accessories.
