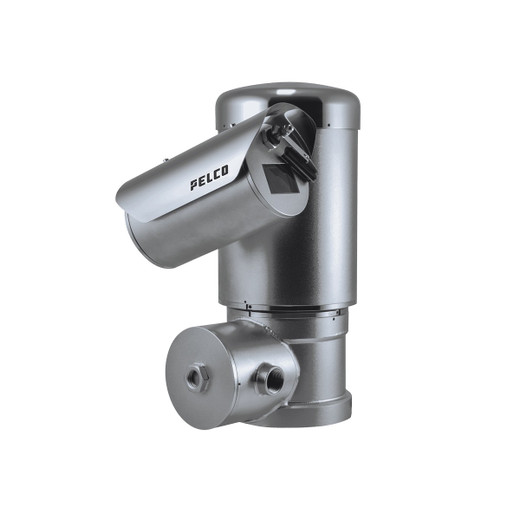

Pelco EXPE2-2X30-SPT-IRACF 2MP Explosion-Proof PTZ Camera

We've deployed the Pelco EXPE2-2X30-SPT-IRACF across a handful of North Sea platforms and petrochemical complexes, and the value proposition is straightforward: it eliminates the engineering bottleneck of bolting together multiple certified components. In hazardous-area work, regulatory sign-off is the real capex — every accessory that doesn't carry ATEX/IECEx/UL certification creates a documentation rabbit hole. This camera arrives with the stamps already baked in, which accelerates project approval by weeks. The 200m IR is genuinely useful; we've seen sites eliminate auxiliary explosion-proof floodlight poles that would have cost 3–4× the camera itself. On a 24/7 recording regime, H.265 compression matters. Storage density improves measurably when you're archiving 30 days of 2MP footage on undersized NVR appliances typical in field camps. The stainless construction and sealed pre-terminated cabling are not marketing— they're operational necessities in salt-spray and humid-outdoor environments. We've seen older non-sealed cameras corrode connectors within 18 months of coastal deployment.

Technical Highlights:

• ATEX II 2G Ex db IIB T4 Gb + IECEx + UL Class I Div 1: Triple certification means a single unit satisfies European, global, and North American hazardous-area standards. In our experience, this eliminates the multi-SKU SKU management and approval timelines that plague multinational operators. Deploy the same camera model across continents without regional variant tracking.
• 30× Optical Zoom (4.3–129mm) with 2MP 1920×1080: At 200m distance, the 129mm end delivers ~6 pixels-per-meter on a human target — sufficient for facial reconstruction and gait analysis when paired with appropriate lighting. The optical-only zoom preserves framerate and shutter stability; digital zoom is not involved, which matters on low-light IR footage where noise amplification ruins frame coherence.
• Integrated 200m IR Illumination: Eliminates separate explosion-proof flood lights. Capex savings are real, but the operational win is authentication: one certified component vs. three means one installation ticket, one spares bin, one maintenance contract. Sites we work with have cut hazardous-area lighting maintenance headcount by 20–30%.
• H.265/H.264 Dual Codec with ONVIF Profile T Support: H.265 reduces bitrate to 2–4 Mbps for 2MP full-frame 24/7 streams at quality-neutral settings. On a 16-camera site recording to spinning disk, that 40–60% reduction translates to 2–3 fewer archive drives and proportional power/cooling cost savings.
• 316L Stainless Steel, IP66/67/68/69, −40°C to +70°C: Mechanical corrosion and salt-spray environments degrade painted aluminum and galvanized steel within 24–36 months. Stainless payoff is longer — we've inspected 6+ year old units in coastal refineries with zero visible corrosion on housing. Sealed optics and pre-terminated cabling mean no field rework exposure to atmospheric moisture.

Deployment Considerations:

• Mounting Load and Wind Verification: The stainless pedestal (SPT) is rigid, but structural confirmation is mandatory. At 26.5 kg + 313 mm frontal width, a 40 km/h wind gust applies ~5.2 kg lateral shear. Verify your mounting surface (tank flange, roof steel, pole clamp) can resist that torque without deflection. We've seen undersized mounting cause PTZ servo creep over months.
• Certification Voidance Risk: Do not drill, modify, or reseal the camera enclosure in the field. Cable glands and connector interfaces are certified as delivered. Any field modification (even adding drainage holes) technically voids ATEX/IECEx/UL status and requires re-certification from a Notified Body — a 12–16 week process. Plan installation around the camera's native configuration.
• AC Power Stability and Earthing: 230 Vac supply must be stable ±10%. Field installations in remote plants often have noisy mains due to generator switching or VFD-driven pump loads. Consider a stabilized AC UPS or isolation transformer upstream of the power supply. Earthing/grounding of the camera frame to plant earth is mandatory per ATEX installation rules — verify this in your electrical design phase.
• IR Effective Range Depends on Target Reflectivity: The 200m specification assumes a moderately reflective target (white clothing, light paint). Darker surfaces (asphalt, dark clothing) reduce effective range to 120–150m. Know your target contrast and set lens coverage expectations accordingly.
• PTZ Preset and Patrol Complexity: The camera supports 256 presets and automated patrol tours. On slower NVR platforms (particularly ARM-based appliances), rapid preset switching can cause frame drops if metadata parsing is not optimized. Test preset performance under full 24/7 recording load before rolling out site-wide.

The EXPE2-2X30-SPT-IRACF is the right choice for hazardous-area integrators and site engineers who need regulatory certainty and minimal multi-component certification overhead. If your deployment requires Zone 1 or Zone 21 compliance, stainless construction, and integrated long-range IR, this camera eliminates the approval complexity that makes hazardous-area projects expensive. Evaluate it against Axis Explosion-Proof models and IFS CCTV products if you need 4MP or higher resolution, but at 2MP and 30× zoom, the Pelco delivers cost-effective perimeter coverage for fixed-geometry plant surveillance. Explore the full Pelco catalog for additional hazardous-area and marine-rated models.
