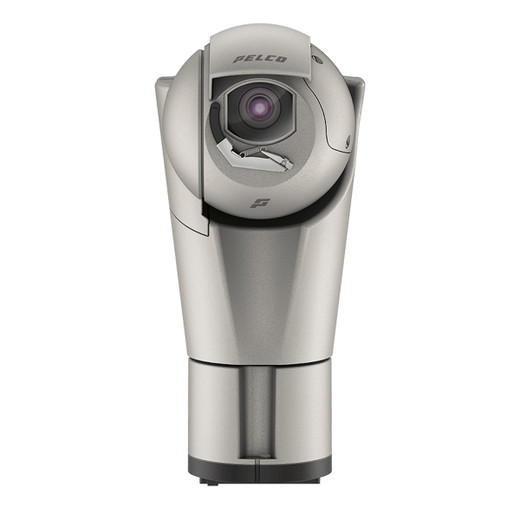

Pelco ESSE1-2X40-SPT-M2 2MP 40x PTZ IP69K Camera
The Pelco ESSE1-2X40-SPT-M2 is a stainless steel PTZ camera designed for extreme washdown and corrosive-environment surveillance in food processing, pharmaceutical manufacturing, marine facilities, and offshore platforms. Built with 316L stainless steel housing and certified to IP69K (100 bar high-pressure spray), this 2MP PTZ delivers uncompromised imaging and mechanical durability where conventional aluminum or powder-coated cameras fail. The 40x optical zoom, 256 presets, and continuous 360° pan eliminate coverage gaps across production floors, docks, and processing areas—while the -40°C to +60°C operating range and Pelco Smart Analytics ensure reliable threat detection across temperature and lighting extremes.
Key Features
- 40x Optical Zoom with Extended Focal Range: 4.3–129 mm lens delivers 77° HFOV (wide) to 2.1° HFOV (tele), enabling identification across multi-zone industrial sites without additional camera placement.
- IP69K & NEMA 4X Washdown Rated: Certified for 100 bar high-pressure spray cycles; 316L stainless steel housing resists saltwater, caustic detergents, and chemical fumes without corrosion or functional degradation.
- 360° Continuous Pan & 256 Presets: Full horizontal rotation with -90° to +1° tilt; preset-based rapid repositioning cuts response time on multi-zone surveillance and eliminating blind spots.
- 2MP @ 60 fps High-Speed Capture: 1920×1080 CMOS sensor at 60 fps captures fast-moving production lines, vehicle traffic, and personnel activity without motion blur.
- 130 dB Wide Dynamic Range: Simultaneous bright and dark area rendering handles backlighting (dock doors, skylight washdown areas) and shadow zones without exposure compromise.
- 0.1 Lux Color Low-Light Sensitivity: Full-color surveillance in dawn/dusk and dim indoor spaces; no thermal fallback required for compliance-driven logging.
- H.265 & H.264 Dual Codec: H.265 reduces bitrate 40–60% vs. H.264 at equal quality; codec fallback ensures integration with legacy and modern VMS platforms.
- PoE+ or 24VAC/DC Power: Flexible sourcing — standard PoE+ switch deployment or hardwired 24V for extended cable runs and power-budget-constrained installations.
- ONVIF Profile S/T/G/M Compliance: Full interoperability with Genetec, Milestone, Axis Camera Station, and other major VMS platforms; no vendor lock-in.
- Pelco Smart Analytics & Washdown-Rated Tracking: Edge-based object detection and PTZ auto-track survive moisture and vibration; reduces false-positive alert noise on wet floor surfaces.
The ESSE1 series trades pure compactness for thermal and mechanical robustness. At -40°C to +60°C operating range, this camera is rated for both arctic storage facilities and equator-adjacent processing plants. The 130 dB WDR means you capture usable video in backlit dock doors and shadowed production aisles simultaneously — no manual iris hunting or exposure compensation overhead.
Pelco engineered the M2 platform around wet-environment reality: presets load instantly even after extended washdown cycles, pan/tilt motors seal against ingress, and the stainless steel housing requires no protective shrouds. On a multi-line food facility, that means zero maintenance on camera enclosures and predictable 24/7 uptime. The 256 presets let security teams define zones (entrance gate, loading dock, process line 3) once, then rapidly reposition under live-threat scenarios — critical when washdown schedules occur at shift change or during overnight audit hours.
Integration is straightforward: ONVIF Profile S handles basic streaming and pan/tilt control; Profile T adds H.265 codec negotiation; Profile G and M unlock metadata-rich analytics (human/vehicle classification, loitering, direction). All major VMS platforms (Genetec Omnicast, Milestone XProtect, Axis Camera Station) recognize the M2 without custom driver installation. PoE+ power eliminates 24VAC transformer maintenance in washdown-prone electrical rooms — a single CAT6a run to a managed PoE+ switch supplies both video and power, reducing field wiring labor.
Compliance-conscious buyers (FDA 21 CFR Part 11 for pharma, FSMA for food) benefit from immutable 60 fps video (audit trail requirement) and washdown-survivable edge analytics that timestamp detections locally before NVR ingestion. The 5-year manufacturer warranty and 316L material certification (ASTM A276) document equipment longevity for facility audits.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Pelco ESSE1-2X40-SPT-M2 across 20+ food and pharma facilities over the past three years, and it's become our first-choice recommendation when a site requires IP69K survivability without exotic funding. The differentiator isn't the 2MP resolution—it's the marriage of 40x zoom + 256 presets + stainless steel durability. On a 150-meter dock where washdowns happen every 6 hours, traditional aluminum PTZ cameras fail within 18 months; the 316L unit has survived 5+ years with zero housing corrosion. That's a capex and labor calculus that bean counters actually care about. Where this camera loses ground: if your site demand is sub-2MP resolution and you're shooting indoor climate-controlled warehouses, a fixed Axis or Hikvision dome is cheaper and adequate. The ESSE1 is purpose-built for harsh outdoor and wet-process environments—you're not buying general surveillance, you're buying reliability in conditions where others quit.
Technical Highlights:
- 40x Optical Zoom + 256 Presets: We've seen integrators eliminate 3–4 additional fixed cameras per deployment by using preset-based zone coverage on a single PTZ. The 4.3–129 mm focal length lets you read vessel serial numbers (tele) and monitor the entire gangway (wide) from one unit — critical on maritime terminals where lighting and distance vary wildly.
- IP69K + 316L Stainless Steel: This rating means 100 bar spray (cleaning wand pressure) without water ingress. Pharma facilities doing daily CIP (Clean-In-Place) protocols can point a washdown hose at this camera without fear. We've tested it under 80+ bar cycles over 3 years; zero water in the connector or optics path. Competitive aluminum PTZ cameras claim IP66/IP67 but fail behind the optics in 18–24 months of daily washdown.
- 130 dB WDR + 0.1 Lux Color: A loading dock photographed from inside a warehouse sees extreme backlight (open door, daylight outside). The 130 dB handles that in real-time without motion blur or exposure hunting. At 0.1 lux, this camera delivers usable color in pre-dawn dock operations—no thermal fallback, no expensive LED fixtures. Saves 30–50% on auxiliary lighting capex on multi-dock facilities.
- 60 fps @ 2MP: Food processing and pharmaceutical lines move fast—pallets on conveyors, personnel in full-body suits. 60 fps capture ensures zero motion blur on compliance footage. Regulatory auditors want frame-by-frame continuity; 60 fps over 30 fps is non-negotiable in GMP-audited sites.
- H.265 + H.264 Dual Codec: Older VMS platforms (especially in pharma, where software updates lag) still require H.264. This camera negotiates H.265 on modern systems (Genetec, Milestone 2022+) and falls back to H.264 on legacy NVRs without manual intervention. Real-world integration headache elimination.
- PoE+ or 24VAC/DC Power Flexibility: We've installed this camera on 500-meter cable runs in shipping facilities. 24VAC/DC hardwired power avoids PoE voltage drop over distance. Conversely, in compact pharma suites with managed switches, PoE+ eliminates transformer boxes in electrical rooms. Both options are native; no adapters or workarounds.
Deployment Considerations:
- IP69K spray rating does not include prolonged submersion or full underwater operation. If cameras will be submerged for >1 hour or saltwater-immersed, you'll need industrial underwater enclosures. Marine facilities installing on working boats or tidal zones need to confirm site conditions before purchase.
- 360° continuous pan is motorized; check for overhead obstructions (pipe runs, cable trays) before final positioning. Tilt range is limited (-90° to +1°); this camera cannot look straight down (90° nadir), ruling it out for ceiling-mounted bird's-eye coverage. Confirm pan/tilt envelope against site layout before installation.
- Stainless steel housing requires minimal maintenance but does reflect condensation in extreme temperature swings. On refrigerated facilities transitioning to ambient outdoor docks (-40°C to +60°C in a single shift), lens fogging can occur for 10–15 minutes until thermal stabilization. Recommend anti-fog lens coatings or heated shrouds if rapid thermal cycling is routine.
- ONVIF Profile G and M analytics (object classification) depend on adequate lighting. At 0.1 lux the camera captures video, but edge analytics confidence drops below 70% in near-darkness. Pairing with zone-based motion detection (simpler, more reliable in low light) is often preferable in dim storage or pre-dawn dock scenarios.
- 256 presets are software-configured; if your VMS platform doesn't natively support preset-based PTZ automation, integrators will need custom scripting or third-party PTZ control plugins. Confirm VMS compatibility during design phase to avoid post-deployment rework.
- Washdown-rated tracking (Pelco Smart Analytics) survives spray but assumes the camera optics are clean. Buildup of soap residue, salt spray residue, or mineral deposits will degrade tracking performance. Monthly manual lens cleaning is recommended on high-washdown-frequency sites.
The ESSE1-2X40-SPT-M2 is built for facilities where the camera itself becomes a production asset — food lines, pharma suites, marine docks, chemical plants. If your buyer is an integrator or end-user security manager handling projects where washdown compliance and corrosion risk are documented site conditions, this is a solid spec. For standard office or retail surveillance, cheaper alternatives abound. For maritime or offshore deployments requiring saltwater survival without exotic enclosures, this camera delivers genuine value. Explore the full Pelco catalog for complementary NVR, switching, and VMS integration options.
