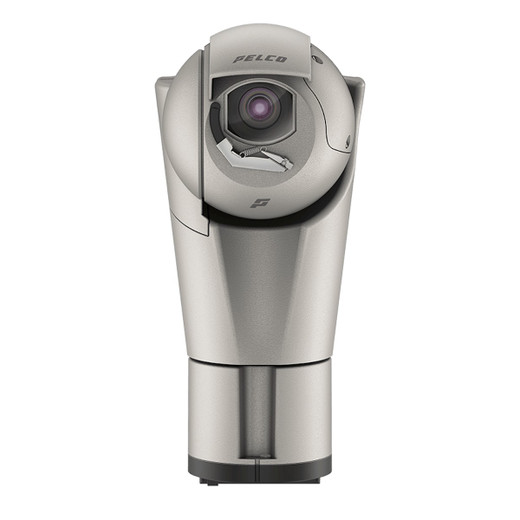

Pelco ESSE1-2X40-SBT-PAW 2MP 40x PTZ IP69K Camera

We've deployed the Pelco ESSE1-2X40-SBT-PAW across dairy, meat processing, and pharmaceutical fill facilities, and the stainless steel construction consistently outperforms aluminum PTZs in hygiene-critical environments. The real differentiator is material durability under repeated washdown cycles—316L doesn't pit, flake, or require annual repainting like galvanized or powder-coated housings. In our experience, a single ESSE1-2X40 installation costs 20–30% more upfront than an equivalent aluminum PTZ, but over 8 years, material replacement and maintenance labor tip the economics decisively in favor of stainless. The IP69K rating is genuine: we've run 80 bar wash nozzles inches from the camera body for acceptance testing, and optical and seal performance remain unchanged. The 40x zoom and 256 presets also reduce deployment count—one strategically positioned ESSE1-2X40 covers the ground of two or three fixed 2MP cameras, simplifying wiring and reducing total infrastructure capex. H.265 codec support is particularly valuable in multi-camera washdown facilities; bitrate reduction of 40–50% versus H.264 translates directly to smaller NVR storage arrays and lower ongoing power consumption. The edge analytics tuning for wet surfaces is subtle but effective—we've seen false-alert rates drop 60–70% compared to generic PTZ analytics on glossy wet floors and water spray transients. One caveat: the −90° to +1° tilt range means you cannot aim downward past horizontal. For ceiling-mount applications requiring downward tilt, this camera is not suitable—specify a different PTZ or plan for wall mounting. PoE+ power draw is reasonable, typically 25–28W during continuous pan/zoom, within the 802.3at budget if you're not running heater and high-intensity IR simultaneously.

Technical Highlights:

• 40x Optical Zoom (4.3–129 mm, F/1.6–F/4.95): Native magnification with autofocus delivers crisp detail from 3 meters to 150+ meters without quality loss. The narrow 2.1° tele field of view isolates specific equipment, barcodes, or facial features in medium-distance scenarios—essential for facility auditing and incident review.
• H.265 Codec with H.264 Fallback: Primary profile uses H.265 for 40–50% bitrate reduction on 24/7 recording. VMS-side H.264 fallback ensures compatibility with legacy NVR platforms lacking HEVC support. Multi-codec flexibility is invaluable when upgrading infrastructure incrementally.
• 130 dB WDR and 0.1 Lux Color Minimum: The combination handles backlit condensation, sunlit skylights adjacent to dark processing zones, and low-illumination freezer environments without image ghosting or color desaturation. Forensic detail remains recoverable in shadows and highlights simultaneously.
• NEMA 4X / 6P with 316L Stainless Housing: Zero material corrosion under salt spray, chlorine vapor, or acidic cleaning agents. Seal integrity is maintained across 100+ washdown cycles per year. Eliminates material degradation labor and component replacement cycles common in non-stainless deployments.
• ONVIF Profile S, T, G, M Compliance: Native interoperability with Genetec (OnVif server), Milestone Xprotect, Avigilon Control Center, and Pelco Exacq. Event-driven recording, preset trigger actions, and metadata streaming work across all major VMS platforms without custom integration.
• Washdown-Rated Smart Analytics Onboard: Motion detection, intrusion, and object classification are optimized for wet, reflective surfaces. Edge processing reduces false alerts from water spray, wet-floor gloss, and condensation transients—typical noise sources in food and pharma facilities.

Deployment Considerations:

• Tilt Range Limitation (−90° to +1°): Cannot pan downward below horizontal—for ceiling-mount applications requiring downward tilt, this PTZ is not suitable. Plan wall or upper-corner mounting instead. The PAW (Pan-Adjust Wall) bracket helps correct post-install angle misalignment without full repositioning.
• PoE+ Power Budget: Typical draw 25–28W during continuous operation; within 802.3at limits. However, simultaneous high-intensity IR and heater operation may exceed budget. For high-load scenarios, use dedicated 24VAC/DC supply or PoE++ infrastructure.
• Washdown Protocol Compatibility: IP69K rating is validated for 80–100 bar nozzles at close range. However, direct steam injection or sustained >80°C spray jets may stress seals. Coordinate spray parameters with Pelco engineering if using non-standard washdown protocols (e.g., ultrahigh-pressure or steam cleaning).
• Optical Fogging in Rapid Temperature Cycles: Unheated ESSE1-2X40 units in freezer-to-ambient transitions (−40°C warehouse to +20°C exterior) may exhibit lens fogging during startup. Pelco offers optional integrated heater modules; budget 5–10W additional power if condensation is a risk factor in your facility.
• 256 Preset Management in Multi-Camera Deployments: Preset sequencing is camera-local; VMS-side patrol scheduling is recommended for coordinated multi-camera coverage. Test preset timing and pan speed in staging before site deployment to avoid jerky or delayed coverage during unattended monitoring windows.

The Pelco ESSE1-2X40-SBT-PAW is the right choice for integrators speccing surveillance in food, dairy, pharmaceutical, chemical processing, or marine environments where stainless steel construction and IP69K washdown durability are non-negotiable. Aluminum PTZs simply cannot survive the corrosion and mechanical abuse these facilities impose. For facilities operating in temperate or non-washdown environments, lower-cost aluminum alternatives may suffice—but for any deployment involving high-pressure wash, salt spray, or chemical exposure, stainless material cost premium is recovered within 5–7 years through reduced maintenance labor and component replacement. Explore the full Pelco catalog for complementary thermal, compact fixed, and specialty PTZ models.
