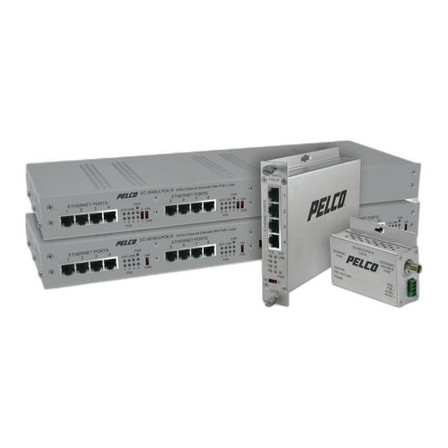

Pelco EC-1508UL-R 8-Port PoE Extender 1RU
The Pelco EC-1508UL-R is an 8-port Power over Ethernet (PoE) extender designed to expand camera deployments beyond the standard 100-meter Ethernet distance limitation. Built in a compact 1RU rack-mount chassis, this network accessory accepts a single PoE uplink and distributes both power and data to eight downstream camera ports, making it ideal for centralized distribution in IDF closets and head-end rooms supporting larger camera clusters.
Key Features
- 8 PoE output ports with up to 15W per port
- Extends PoE delivery beyond standard 100-meter Ethernet limit using CAT5e cabling
- 1RU rack-mount form factor for standard 19" equipment racks
- Single PoE uplink input for centralized power and data distribution
- NDAA Section 889 compliant for government and regulated installations
- Compatible with Pelco Camera Systems
Technical Highlights
The EC-1508UL-R leverages CAT5e cabling to extend PoE delivery while maintaining power delivery to eight camera ports simultaneously. With 15W per port, it supports standard fixed cameras and compact dome units. For higher-power applications requiring 30W per port—such as PTZ domes or motorized pan-tilt-zoom cameras—Pelco offers the EC-3004 series as an alternative solution.
Installation and Integration
This extender integrates seamlessly with Pelco Camera Systems and supports professional installation workflows in enterprise surveillance deployments. Pair with midspan injectors or PoE switches rated for the total wattage draw of your connected camera array to ensure adequate power delivery at the head-end.
Warranty and Support
Backed by a 1-year warranty and supported through Pelco's authorized distributor network, this accessory includes priority technical support for enterprise customers and streamlined RMA processes through authorized reseller partners.
