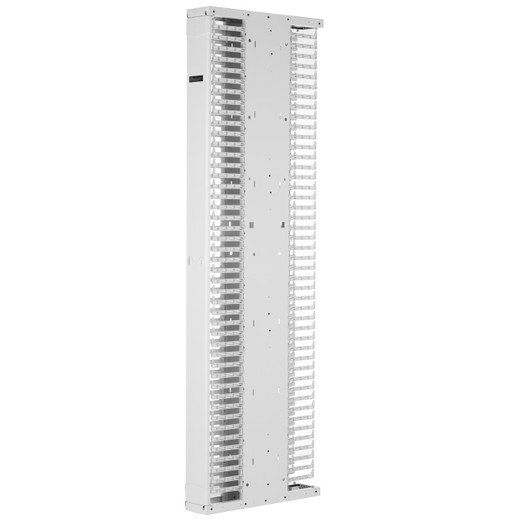

Panduit PE2VSD06WH PatchRunner™ 2 Dual-Sided Vertical Cable Manager
The Panduit PE2VSD06WH PatchRunner™ 2 Enhanced vertical cable manager delivers zero-U cable routing for 45U racks without consuming valuable equipment mounting space. This dual-sided unit combines a steel frame with molded plastic cable fingers and a full-length hinged metal door, providing organized front and rear cable pathways in a 6-inch wide footprint. Pre-assembled construction accelerates deployment in data centers, telecom rooms, and high-density network environments where structured cabling discipline prevents service interruptions and simplifies MACs (moves, adds, changes). UL 2416 and CSA C22.2 listings meet fire safety and electrical enclosure requirements for commercial installations.
Key Features
- Zero-U mounting design — installs vertically alongside rack rails without occupying equipment RU space
- Dual-sided cable routing — independent front and rear pathways for patch cords and trunk cables
- 45U capacity (83.9" height) — spans full-height racks with 6 additional vertical U for cable slack management
- 6-inch width (152.4 mm) — balances high-density capacity with aisle clearance in tight datacenter rows
- Metal frame with molded plastic fingers — steel structure supports cable weight; flexible fingers guide bundles without sharp edges
- Full-length hinged door with snap closure — double-hinged metal door secures cables, prevents accidental disconnects, opens both directions for access
- Partially pre-assembled — reduces field labor, ships ready for fast rack mounting
- UL 2416 and CSA C22.2 listed — meets North American safety and fire enclosure standards for IT spaces
- RoHS compliant — lead-free construction for environmental disposal regulations
- White finish — matches common rack and cabinet colors in clean-room or office-visible installations
The PE2VSD06WH's zero-U architecture solves a common high-density problem: in racks packed with 1U switches, patch panels, and blade servers, traditional horizontal cable managers consume 2-4U per tier, reducing usable equipment capacity by 10-15%. This vertical manager mounts to the side of standard 19-inch or 23-inch EIA racks using the existing threaded holes, running the full 45U height (2131.1 mm) without blocking a single equipment slot. The dual-sided design provides independent cable pathways on both the front (equipment side) and rear (trunk side), letting you separate short patch cords from long backbone runs — critical when troubleshooting or replacing failed links without disturbing adjacent circuits. The 6-inch width holds 200+ Cat6A cables per side in typical deployments, while the molded plastic fingers (replaceable if damaged) feature rounded edges that prevent jacket abrasion on frequent adds/changes. The full-length metal door is double-hinged, meaning it opens left or right depending on aisle access, and the snap closure holds it shut without requiring tools — installers can open it one-handed while holding a cable bundle. Six additional vertical U at the top provide slack storage for service loops, ensuring you have enough length to re-terminate connectors or move cables between panels without re-pulling from the cable tray.
Deploy the PE2VSD06WH in any environment where cable count exceeds what horizontal managers can handle without sacrificing rack space: core datacenter rows with 10G/25G/40G top-of-rack switches, telecom central offices with dense DWDM and carrier aggregation gear, or enterprise IDF closets running 300+ access-layer ports per rack. The zero-U footprint is particularly valuable in colocation facilities where rack space is billed per U — you gain the cable management required by most colo contracts (to prevent airflow blockage and NRC violations) without paying for non-revenue space. The white finish integrates with white racks common in healthcare IT rooms, financial trading floors, and corporate headquarters where equipment visibility matters. Pre-assembly means most integrators mount two of these managers (one per side of a 4-post rack) in under 20 minutes, compared to 45-60 minutes for field-assembled vertical managers that ship as loose parts. The hinged door keeps cables secure during cleaning or HVAC maintenance, preventing accidental tugs that unseat SFP+ transceivers or yank patch cords from keystone jacks — a common cause of "phantom" network drops that waste hours of troubleshooting time.
UL 2416 certification confirms the PE2VSD06WH meets flame-spread and fire-enclosure requirements for cable management installed in plenum-adjacent spaces, a mandatory checkpoint for inspections in hospitals, airports, and any facility under NFPA 75 (data center fire protection). CSA C22.2 certification covers Canadian installations, and RoHS compliance satisfies procurement rules in public-sector and multinational enterprise IT. For integrators managing 500+ cable terminations per rack, or datacenter operators where every lost RU costs revenue, this dual-sided vertical manager delivers the capacity, access, and standards compliance that turn chaotic cable nests into maintainable infrastructure. Ships as a single unit; confirm your rack has accessible side-mounting holes and at least 7 inches of clearance on the installation side before ordering.
