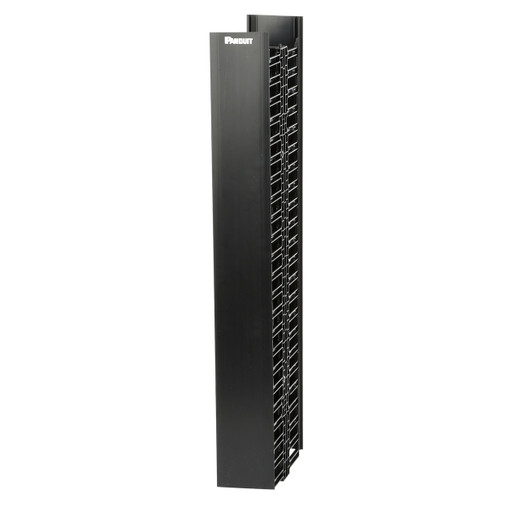

Panduit WMPV45E NetRunner™ 45U Dual-Sided Vertical Cable Manager
The Panduit WMPV45E NetRunner™ vertical cable manager delivers professional-grade cable organization for high-density rack environments. This 45-rack-unit (83-inch) dual-sided manager addresses a critical problem in datacenter and telecom installations: maintaining cable bend radius compliance while keeping hundreds of network, power, and fiber runs accessible during adds, moves, and changes. Designed for 19-inch open-frame or enclosed racks, the 4.9-inch-wide profile maximizes usable rack width while providing 12 inches of cable management depth on each side. IT infrastructure teams, datacenter contractors, and telecom integrators rely on the NetRunner series when cable density demands structured pathways that won't compromise performance or create maintenance bottlenecks.
Key Features
- Dual-sided design manages cables on both sides of the rack in a single 4.9" wide footprint, maximizing aisle space efficiency
- 45 RU (83") height matches full-height server and network racks without mid-span termination
- Integrated cable management fingers guide cables during installation and prevent bundle migration during maintenance
- Double-hinged covers on each side provide tool-free access to cabling without disturbing adjacent runs
- Built-in bend radius control prevents Cat6A/fiber kinking that degrades signal integrity and causes intermittent faults
- 12" management depth accommodates high-volume copper and fiber bundles without forced compression
- Black powder-coat finish resists scratches during installation and blends with standard rack equipment
- RoHS-compliant construction meets datacenter procurement and environmental disposal requirements
The WMPV45E's dual-sided architecture eliminates the need for separate left and right managers, cutting hardware costs and simplifying rack layouts in dense rows. Cable management fingers—molded horizontal supports spaced vertically along the manager—allow installers to route individual cables or small bundles without zip ties or velcro during the initial pull, then revisit and reorganize as the rack fills out over time. This is critical in colocation environments where racks rarely reach full occupancy on day one. The double-hinged covers swing open from either side without removing fasteners, so technicians can trace a cable run or add a new drop without exposing the opposite side's bundles—a workflow advantage when racks back up to hot aisles or are positioned against walls. The 12-inch depth prevents the cable compression and forced bends that occur when shallow managers are overloaded; Cat6A patch cables with their larger-diameter conductors and tighter twist ratios are especially vulnerable to performance loss when squeezed into inadequate management channels.
Datacenter operators deploying 10GBASE-T or 25/40/100G fiber infrastructures depend on vertical cable managers to maintain the minimum bend radius specs published by TIA-568 and manufacturer data sheets. A single kinked Cat6A cable can downgrade a 10G link to 1G or introduce packet loss that's difficult to trace; a pinched OM4 fiber can attenuate a 40G QSFP+ link below error-correction thresholds. The NetRunner design's generous bend radius control keeps cables in compliant curves rather than sharp angles. Integrators installing Axis network camera systems, access control panels, and PoE lighting controllers into datacenter backbone racks use the WMPV45E to separate low-voltage control wiring from high-current PDU feeds, reducing EMI risk and simplifying code-required separation. The manager's 4.9-inch width leaves 14+ inches of usable rack width for equipment mounting—critical when installing 17-inch chassis switches or UPS units with side-mounted service panels.
RoHS compliance ensures the WMPV45E meets lead-free and hazardous-substance restrictions required by federal datacenter construction contracts and Fortune 500 procurement policies. Panduit's NetRunner series is engineered for installations where cable plant longevity matches the 15-20 year lifespan of the rack infrastructure itself—vertically integrated designs that eliminate the finger breakage, hinge fatigue, and cover-warp common in economy managers sourced from secondary suppliers. This manager is the go-to choice for integrators building out enterprise datacenter rows, carrier hotel cross-connects, or MSP colocation cages where structured cabling directly impacts SLA performance and client uptime guarantees.
