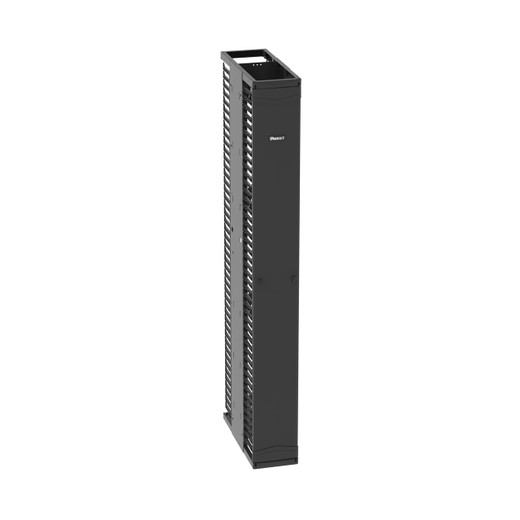

Panduit PE2VSD10 45U Dual-Sided Vertical Manager

Panduit PE2VSD10 PatchRunner 2 Enhanced Dual-Sided Vertical Cable Manager

The Panduit PE2VSD10 delivers high-density cable management for network and datacenter racks where port counts and patch-cable routing create real airflow and access problems. This 45U dual-sided vertical manager combines a reinforced metal frame with molded plastic cable fingers and a full-length hinged metal door, providing zero-U patching capability without consuming valuable rack space. Pre-assembled construction speeds deployment, while the 10-inch width handles dense 10GbE/25GbE switch environments and high-count fiber runs where standard 6-inch managers fall short.

Key Features

• Dual-sided zero-U design — route patch cables vertically without consuming rack units, maximizing usable equipment space in 45U frames
• 10-inch (254mm) width — accommodates high port-count switches, dense fiber cassettes, and large-diameter Category 6A/8 cables that exceed narrow manager capacity
• Metal frame construction — steel structure supports cable loads in fully populated racks; molded plastic fingers protect cable jackets and maintain bend-radius compliance
• Full-length hinged metal door — snap-closure design provides quick access for adds/moves/changes without removing panels or disturbing adjacent cable runs
• 12U additional vertical capacity — extends routing height beyond the standard 45U frame, supporting overhead cable entry or basement conduit feeds
• Pre-assembled for fast deployment — ships partially built to reduce on-site assembly time during rack buildouts and network refresh projects
• Compliance certifications — UL 2416 cable management, CSA C22.2, RoHS compliant for projects with structured cabling standards and environmental procurement requirements

The PE2VSD10's zero-U architecture addresses a core problem in high-density networking: patch-cable routing that doesn't steal rack space from revenue-generating equipment. Traditional horizontal managers consume 1U or 2U per switch, compounding across multi-switch stacks. This vertical approach routes cables along the sides of the rack frame, leaving all 45U available for switches, routers, and patch panels. The dual-sided design handles cables entering from both the front (user-facing patch panels) and rear (switch uplinks, cross-connects), creating clean separation between access-layer and distribution-layer cabling. In 10GbE and 25GbE environments where every switch may terminate 48 or 96 ports, this separation prevents the cable snarl that blocks airflow and makes troubleshooting impossible.

The 10-inch width distinguishes this manager from narrower 6-inch models that handle legacy Category 5e installs but struggle with modern cable diameters and bend-radius rules. Category 6A cables, OM3/OM4 fiber trunks, and shielded twisted-pair runs require more space to maintain the 4× diameter bend radius that prevents performance degradation and TIA/ISO compliance failures. The PE2VSD10's plastic fingers guide these larger cables without pinch points, while the metal frame supports the cumulative weight of a fully dressed rack—critical in datacenters where a single 45U frame may house six top-of-rack switches and 288 copper or fiber connections. The hinged metal door keeps cables contained during transport and provides a finished appearance for customer-facing environments, but snaps open instantly when a patch change or troubleshooting session requires access to the vertical run.

The 12U additional vertical capacity extends routing beyond the 45U rack footprint, accommodating cable entry from overhead ladder racks in datacenter hot-aisle deployments or from raised-floor conduits in legacy installations. This extra height prevents the sharp bends that occur when cables transition from vertical to horizontal planes at the top or bottom of the rack frame—a common failure point in structured cabling audits. For integrators building network closets, datacenter rows, or AV equipment rooms where cable management directly affects both performance and the site's ability to pass inspection, the PE2VSD10 combines the capacity, access, and build quality that high-density environments demand without consuming rack units that could otherwise house billable equipment.
