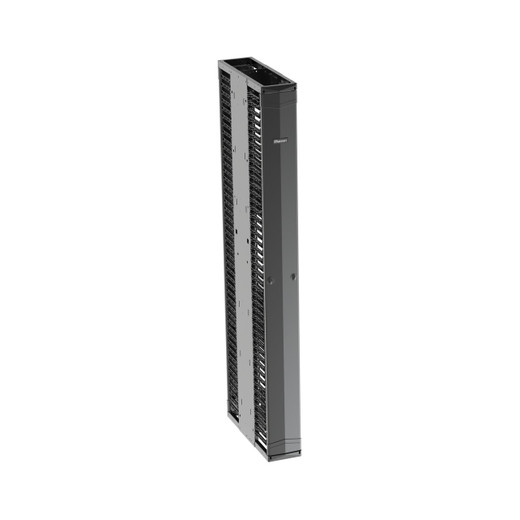

Panduit PE2VD06 Double-Sided Vertical Cable Manager, 45U, 6-Inch Wide
Overview
The Panduit PE2VD06 is a 45U double-sided vertical cable manager from the Panduit PatchRunner™ 2 Enhanced line, engineered for high-density data center and enterprise rack environments where cable organization directly affects airflow, serviceability, and long-term management overhead. At 83.9 inches tall (2,131 mm) and 6 inches wide, it spans a full 45U rack with an additional 6U of vertical clearance — giving you routing room above and below the patch field without dead zones. If your environment runs dense fiber or copper patch panels across multiple adjacent racks, this is the unit built for that workload.
The PE2VD06 ships partially pre-assembled, which cuts installation time meaningfully on large deployments where you're standing up a row of racks in sequence. Both sides are active routing surfaces, so you're managing ingress and egress cable paths on a single vertical unit — a real factor in 10G/25G structured cabling environments where cable volumes per rack are climbing.
Key Features
- Zero-U Cable Routing: The PatchRunner™ 2 Enhanced design routes cables vertically in zero rack units — preserving every usable U-space in the rack for active equipment. In a fully populated 42U–48U cabinet, that's the difference between a clean build and losing 2–4U to cable management hardware.
- 45U Height + 6U Supplemental Clearance: At 83.9 inches overall, the PE2VD06 extends beyond the standard 42U rack frame, providing 6 additional vertical units of routing capacity above the top panel. That extra headroom is where horizontal-to-vertical cable transitions typically bunch up — having structured space there prevents cable stress at the bend point.
- 6-Inch Width: The 152.4 mm (6-inch) width accommodates high cable counts — both high-density fiber trunk breakouts and bundled copper patch runs. Narrower 4-inch units fill faster under dense patching loads; the 6-inch profile gives you the capacity margin for high-density vertical cable management without mid-project retrofits.
- Dual-Sided Metal Structure with Molded Plastic Fingers: The steel frame holds dimensional stability in fully loaded racks, while the molded plastic cable fingers guide bundles without sharp edges that could damage jacket integrity. This matters especially on bend-radius-sensitive fiber runs where a rigid metal finger would create a point-load stress.
- Two Full-Length Dual-Hinge Doors with Snap Closure: Both front and rear doors run the full 83.9-inch height and use a dual-hinge mechanism — meaning they open wide without binding even when the adjacent vertical is also populated. Snap closure keeps doors secured without tools, which speeds repeated access during MACs (moves, adds, changes).
- Partially Pre-Assembled: Factory pre-assembly reduces on-site build time, a real efficiency factor when deploying data center infrastructure at scale. Installers finish mounting and dressing rather than assembling finger sets from scratch at the rack.
- RoHS Compliant: Meets RoHS (Restriction of Hazardous Substances) standards — a procurement requirement for data centers operating under EU environmental directives or for enterprise customers with corporate sustainability mandates. Verify this against your project's compliance checklist at the BOM stage.
- Black Finish: Standard black finish matches the majority of commercial rack enclosures and provides a clean visual baseline for cable labeling and color-coded patch identification schemes.
Integration & Compatibility
The PE2VD06 is designed to mount alongside standard 19-inch rack infrastructure in cabinets and open-frame racks. The 45U + 6U extended height accommodates both standard 42U enclosures and taller 45U–48U frames common in enterprise rack and enclosure deployments. The competitor cross-reference for this unit is the VCM-6D, making it a direct drop-in consideration in projects specifying that alternative. Both sides provide independent routing channels, supporting structured separation of patch cord runs from horizontal cable entry — a cabling best practice in environments running mixed fiber and copper in the same rack.
Combine this unit with horizontal cable managers at every patch panel row and overhead ladder rack or cable tray to complete the pathway from equipment port to main distribution area. Vertical managers like the PE2VD06 handle the within-rack vertical run; the horizontal and overhead elements complete the structured pathway beyond the cabinet.
Frequently Asked Questions
Q: What is the overall height of the PE2VD06 and how does that map to rack unit capacity?
A: The PE2VD06 stands 83.9 inches (2,131 mm) tall, providing 45U of rack-aligned routing capacity plus an additional 6U of supplemental vertical clearance above and below the standard rack panel area.
Q: Is the PE2VD06 RoHS compliant?
A: Yes, the PE2VD06 meets RoHS (Restriction of Hazardous Substances) compliance standards.
Q: What is the width of the PE2VD06 and what cable volumes does it support?
A: The PE2VD06 is 6 inches (152.4 mm) wide. This profile is suited for high-density patching environments — both high-count fiber trunk breakouts and bundled copper patch runs — where a narrower 4-inch unit would fill prematurely.
Q: Does the PE2VD06 come partially assembled?
A: Yes, the PE2VD06 ships partially pre-assembled to reduce on-site installation time and support faster rack deployment in large-scale structured cabling projects.
Q: What is the competitor cross-reference for the PE2VD06?
A: The PE2VD06 cross-references to the VCM-6D from competing product lines, making it a direct consideration in projects specifying that unit.
Q: How many doors does the PE2VD06 have, and how do they operate?
A: The PE2VD06 includes two full-length dual-hinge metal doors — one per side — running the full 83.9-inch height with snap closure for tool-free access during moves, adds, and changes.
The PE2VD06 is the unit I spec when a project calls for high-density vertical cable management and I need zero compromise on usable rack space. The zero-U routing geometry is the key spec here — you get full 45U plus 6 supplemental vertical units at 83.9 inches without giving up a single rack unit to the manager itself, which matters the moment you're trying to populate a 48U cabinet with active gear and still dress the cabling correctly.
Technical Highlights:
- 83.9-inch / 2,131 mm Height: Covers 45U plus 6U of extended clearance — handles full-height rack builds and gives structured routing space at the top and bottom transitions where cable stress typically accumulates.
- 6-inch (152.4 mm) Width: The extra width over a 4-inch unit is the right call in high-density fiber or copper environments; you avoid mid-deployment capacity problems when patch counts climb past initial projections.
- Dual-Hinge Full-Length Doors with Snap Closure: Both doors run the full unit height and open wide — practical detail when you're doing MACs in a fully populated row and adjacent verticals are also dressed. Snap closure means no tool fumbling during routine access.
Deployment Considerations:
- The partial pre-assembly is a real time-saver on large row deployments — confirm your rack frame height before ordering to ensure the 83.9-inch profile clears the top panel and overhead pathway hardware without interference.
- Watch out: the PE2VD06 is designed for standard 19-inch rack infrastructure. Verify cabinet compatibility (especially with non-standard open-frame configurations) before ordering in quantity on a multi-rack project.
Best fit for enterprise data center builds and large structured cabling deployments — specifically high-density MDA or HDA rows where cable volume per cabinet is high, MACs happen frequently, and you can't afford a cable manager that limits your usable rack space or fails under full load.
