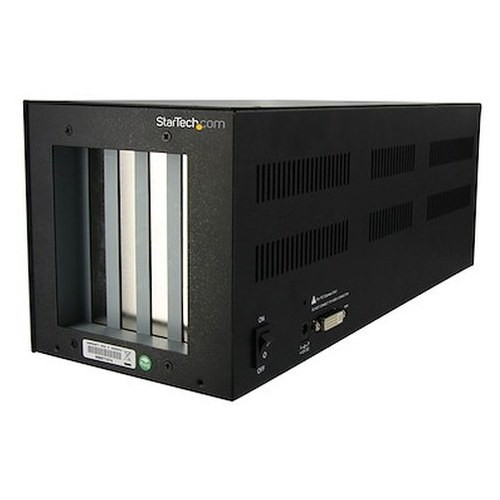

StarTech PEX2PCIE4L PCIe to PCI and PCIe Slot Expansion System

Overview

The StarTech PEX2PCIE4L solves a straightforward but frustrating problem: you have legacy PCI cards and newer PCIe x1 cards that need to coexist in a host system that may only have one spare PCIe slot to give up. By connecting to a single PCIe x1 slot on the host, this external expansion chassis delivers two 32-bit/33MHz PCI slots and two PCIe x1 slots — giving integrators and IT architects a clean path to extending older surveillance hardware, capture cards, serial adapters, or I/O cards without swapping motherboards or rebuilding systems.

Built around the Texas Instruments xIO200A and xIO3130 chipsets, the PEX2PCIE4L is a purpose-built steel enclosure designed for commercial environments where reliability over time matters more than raw throughput. With a rated MTBF of 135,012 hours — roughly 15 years of continuous operation at spec — this is not a hobbyist riser card. It is a deployable infrastructure component.

Key Features

• 2 PCI + 2 PCIe x1 Expansion Slots: Adding four expansion slots from a single PCIe host connection is the core value here. Systems running mixed card inventories — a legacy frame grabber alongside a newer network adapter, for example — no longer require a platform rebuild. Both slot types are active simultaneously.
• PCI 2.3 Specification, 32-bit/33MHz: Maintains full compatibility with the broad installed base of 32-bit PCI cards. Dual voltage support (5V and 3.3V) means you can seat either older 5V-only cards or modern 3.3V cards without an adapter — relevant when pulling cards from mixed-generation hardware pools.
• PCIe 1.1 at 250 MB/s: The PCIe x1 slots run at PCIe Gen 1.1, delivering up to 250 MB/s per direction. That is adequate for most surveillance I/O cards, serial controllers, and low-bandwidth capture devices. It is not sized for GPU or NVMe — set expectations accordingly for bandwidth-hungry workloads.
• Card Length Support up to 35cm: Full-length cards (up to 350mm) fit inside the enclosure. This matters for dual-slot or longer capture cards that would not fit in a half-height or low-profile riser — a common frustration in video surveillance and industrial I/O expansion scenarios.
• 15W Total Power Output (5V @ 3A, 3.3V @ 4.5A): The integrated power supply delivers 15W across the expansion slots. Cards drawing significant current from the slot — multi-port serial adapters, frame grabbers with onboard processing — can be powered without external supplemental connectors. Know your card's slot power draw before loading all four bays simultaneously.
• Integrated 100–240V AC Power Supply (12V DC @ 3A output): The chassis runs off a universal AC input, outputting 12V DC at 3A internally. Total system power consumption is rated at 36W under load, which is modest enough for branch office UPS budgets. No separate power brick to source or replace.
• Steel Construction with MTBF of 135,012 Hours: The all-steel enclosure is not incidental — it provides RFI shielding for adjacent cards, physical protection for card PCBs, and a thermal mass that contributes to the long MTBF figure. For 24/7 surveillance server rooms, that rated service life matters.
• Operating Temperature 0°C to 55°C: Covers standard conditioned server room and equipment closet environments. Not rated for outdoor or uncontrolled industrial environments — factor this in if deploying in edge locations without climate control.
• Texas Instruments xIO200A and xIO3130 Chipsets: Both chipsets are well-documented in enterprise hardware, with stable driver support across Windows and Linux environments. Driver availability for legacy OS versions should be confirmed for your specific host platform, but the TI chipset heritage reduces that risk compared to lesser-known bridge silicon.

Integration and Compatibility

The PEX2PCIE4L connects to the host system via a PCIe x1 interface — any PCIe x1, x4, x8, or x16 slot on the motherboard will accept the connection physically, as PCIe slots are backward-compatible with smaller form factor cards. The expansion unit then presents the PCI and PCIe slots to the host OS as standard bus devices, meaning existing drivers for cards seated in the expansion chassis remain unchanged.

For StarTech expansion and connectivity products, this unit fits within a broader family of slot expansion solutions designed for commercial integrators who need to extend legacy hardware without full platform migration. If you are architecting a network video recorder build around legacy capture cards or planning an enterprise switch deployment that requires additional I/O, the PEX2PCIE4L can bridge the gap between current host hardware and older peripheral cards that are not yet ready for retirement.

Integrators working with mixed PCI and PCIe card inventories should review our expansion card selection guide for slot pairing recommendations. If your project requires only PCIe x1 expansion without legacy PCI slots, consider a dedicated PCIe expansion chassis in the same family that may offer higher slot density per host connection.

Frequently Asked Questions

Q: What host slot does the PEX2PCIE4L require on the motherboard?

A: The PEX2PCIE4L connects to the host via a PCIe x1 interface. Because PCIe slots are physically compatible upward, you can seat the x1 host card in an x4, x8, or x16 slot on the motherboard — it will operate at x1 bandwidth regardless of slot size.

Q: Can I use full-length PCI or PCIe cards in this expansion chassis?

A: Yes. The PEX2PCIE4L supports card lengths up to 35cm (350mm), which covers standard full-length cards. Verify your specific card's physical length and power draw against the chassis specs before installing.

Q: How much power can the expansion slots deliver to installed cards?

A: The chassis provides a total of 15W across its expansion slots — 5V at 3A and 3.3V at 4.5A. If you are populating multiple power-hungry cards simultaneously, calculate the combined slot power draw against these limits before deployment.

Q: What operating environment is the PEX2PCIE4L rated for?

A: The unit is rated for 0°C to 55°C operating temperature and 5% to 95% relative humidity (non-condensing). It is intended for conditioned indoor environments such as server rooms and equipment closets — not for uncontrolled outdoor or industrial edge locations.

Q: What is the warranty on the PEX2PCIE4L?

A: StarTech provides a 2-year manufacturer warranty on the PEX2PCIE4L.

Q: What chipsets does the PEX2PCIE4L use, and does that affect driver support?

A: The unit uses Texas Instruments xIO200A and xIO3130 chipsets. These are well-established in enterprise hardware with stable driver support across major operating systems. Confirm driver availability for your specific OS version, particularly if running legacy or embedded platforms.

Jerry Tildsen

The PEX2PCIE4L comes up regularly in projects where a surveillance server or NVR build has legacy PCI capture or I/O cards that still need to run alongside newer PCIe peripherals — and the host motherboard simply does not have enough slots to accommodate both generations simultaneously. The rated MTBF of 135,012 hours is the number I point to when a client questions whether an external expansion chassis is a long-term-viable approach: that is roughly 15 continuous years at spec, which outlasts most platform refresh cycles.

Technical Highlights:

• Dual Voltage PCI Support (5V and 3.3V): Eliminates a common gotcha when pulling cards from mixed-generation hardware pools — both older 5V-keyed cards and newer 3.3V cards seat and operate correctly without requiring slot adapters or card modifications.
• 15W Slot Power Budget (5V @ 3A, 3.3V @ 4.5A): Adequate for most surveillance I/O and capture cards, but this is the ceiling across all four slots combined. If you are loading a multi-port frame grabber in one PCI slot and two active PCIe cards, add up the slot power draw figures from each card's datasheet before commissioning.
• Universal AC Input (100–240V, 36W system draw): The self-contained power supply means no separate wall adapter to source, label, or replace. At 36W total system consumption, it fits comfortably within standard branch circuit and UPS capacity planning for equipment rooms.

Deployment Considerations:

• The PCIe x1 host connection caps throughput at 250 MB/s — all four expansion slots share that upstream bandwidth. For surveillance capture cards with modest data rates this is rarely a bottleneck, but high-frame-rate multi-channel capture scenarios should be validated against that ceiling before committing to the architecture.
• Operating temperature tops out at 55°C. Deploying this in an unconditioned closet or edge cabinet in a warm climate without active cooling is a risk — stay inside the thermal envelope or add a supplemental fan tray to the enclosure.

For branch office NVR builds or mixed-generation surveillance server consolidations where legacy PCI capture cards and current PCIe I/O cards must coexist in a single conditioned equipment room, the PEX2PCIE4L handles that specific use case cleanly without requiring a platform redesign.
