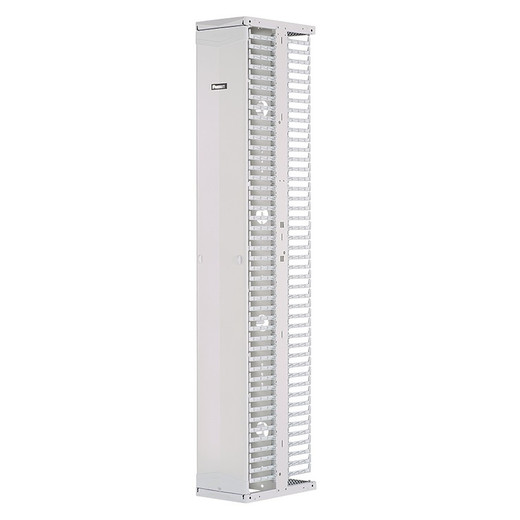

Panduit PR2VSD08WH PatchRunner 2 Vertical Dual-Sided Cable Manager

The Panduit PR2VSD08WH vertical cable manager addresses high-density datacenter deployments where floor space commands premium pricing and cable pathway capacity directly limits rack utilization. This 45RU dual-sided design consolidates front and rear cable routing into a single 8-inch-wide footprint, delivering twice the pathway capacity of traditional single-sided managers while occupying the same vertical real estate. The fully pre-assembled construction eliminates field assembly labor—mount the backbone, secure to rack rails, and begin dressing cables. For integrators managing multi-rack row deployments or retrofitting legacy infrastructure, this manager provides structured pathways that prevent the service-loop tangles and bend-radius violations that plague ad-hoc wire management.

Key Features

• Dual-sided design with independent front and rear cable pathways, each served by molded plastic fingers on a rigid metal backbone—supports simultaneous patch panel and switch-to-switch routing without cross-contamination
• Full-length metal dual-hinging door with push-to-close latch mechanism provides tool-free access to either pathway side while maintaining cable retention during service events
• 45 RU height (83.88 inches) spans full-height racks in standard datacenter and telecom installations, eliminating mid-rack transitions that create vulnerability points
• 8-inch width (203.2 mm) fits standard 19-inch and 23-inch EIA rack spacing with clearance for adjacent equipment—tested dimensional compatibility prevents the interference issues common with oversized aftermarket accessories
• White powder-coat finish matches Panduit and third-party white rack ecosystems, maintaining visual consistency in customer-facing server rooms and NOC environments
• UL 2416 and CSA C22.2 safety certifications for use in rated electrical equipment assemblies—meets the compliance requirements for insurance and municipal inspections in commercial facilities
• RoHS compliant construction for installations subject to environmental substance restrictions in EU markets and government contracts

The PatchRunner 2 architecture solves the capacity-versus-accessibility tradeoff inherent in vertical cable management. Traditional single-sided managers force integrators to choose between high finger density (which creates service bottlenecks) or low density (which wastes pathway capacity). This dual-sided topology separates concerns: front fingers handle patch panel connections to active equipment, rear fingers manage inter-rack trunk cables and power distribution—each pathway remains accessible without disturbing the other. The metal backbone provides the structural rigidity required to prevent sag under load; datacenter environments routinely see 200+ Cat6A cables per manager, where inferior plastic-only designs deform and bind. The molded fingers use a curved profile that guides cables through natural bend radii, preventing the kinking and jacket stress that occurs with sharp-edged stamped metal alternatives. During MAC (moves, adds, changes) operations, the dual-hinging door opens from either side depending on rack orientation—critical in row deployments where one side may face a hot aisle with limited clearance. The push-to-close latch eliminates the loose fasteners and alignment frustration common with screw-retained doors; technicians working from ladders in ceiling-height racks can secure the door one-handed.

Deployment contexts where the PR2VSD08WH delivers measurable ROI include high-density server consolidation projects (where blade chassis and 1RU switches generate 40+ connections per rack), enterprise campus distribution closets (where horizontal cable bundles from ceiling pathways transition to vertical runs), and telecom facilities (where TIA-568 and TIA-942 pathway fill-ratio requirements mandate structured managers for compliance). The 45RU height aligns with standard 42U-48U rack configurations plus overhead cable entry, eliminating the gap-filling complications that occur when managers under-span available height. Integrators retrofitting legacy installs will find the 8-inch width fits the mounting real estate previously occupied by ladder rack or J-hook pathways, providing a structured upgrade path without rack replacement. The white finish specifically addresses healthcare, education, and corporate environments where exposed black infrastructure reads as unfinished; maintaining color consistency across racks, managers, and overhead pathways presents a cohesive appearance during facility tours and inspections. For projects requiring seismic or NEBS (Network Equipment-Building System) compliance, verify local testing requirements—the manager itself carries UL/CSA electrical safety ratings, but seismic certification applies to the complete rack assembly including anchoring methods.

This manager meets UL 2416 standards for cable management accessories used in information technology equipment assemblies, a requirement often overlooked until AHJ (authority having jurisdiction) final inspections flag non-listed components in rated installations. CSA C22.2 certification extends compliance coverage to Canadian projects and facilities operating under NFPA 70 NEC adoption jurisdictions that recognize CSA marks. The RoHS designation addresses the EU Restriction of Hazardous Substances directive, relevant for multinational deployments, government contracts subject to FAR environmental clauses, and organizations with corporate sustainability mandates. The pre-assembled delivery model reduces install labor by an estimated 45-60 minutes per unit compared to field-assembled alternatives—on a 10-rack deployment, that difference represents a full technician-day of labor cost savings, directly improving bid competitiveness on fixed-price projects. The combination of dual-sided capacity, tool-free door access, and dimension-tested rack compatibility makes this manager the standard specification for integrators who cannot afford the callback costs associated with inadequate cable pathways or the accessibility problems that turn routine adds into rack-depopulation events.
