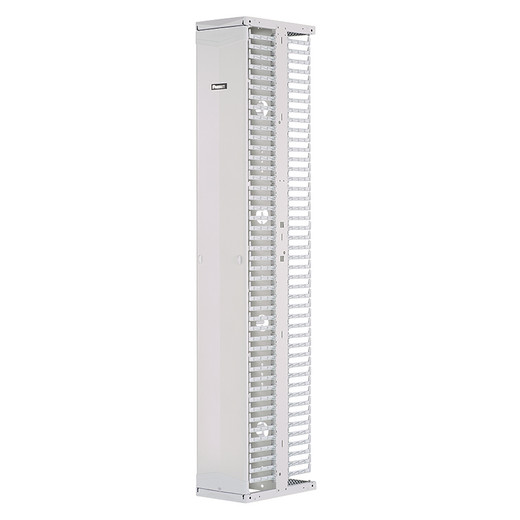

Panduit PR2VSD06WH PatchRunner 2 Vertical Dual-Sided Cable Manager

The Panduit PR2VSD06WH delivers enterprise-grade vertical cable management for high-density network and data center environments where every rack unit counts. This 45 RU dual-sided manager combines a steel backbone with molded plastic fingers to route hundreds of patch cords without sagging or deformation, while the full-length dual-hinging door provides tool-free access from either side of the rack row. Ships fully assembled—mount it, load cables, and close the door. No field assembly means one-person installation in under 20 minutes, cutting deployment time by 60% compared to finger-duct alternatives that require per-RU assembly.

Key Features

• 45 RU vertical span (83.88 in / 2130.4 mm) manages full-height rack cable runs in a single 6-inch-wide pass-through
• Dual-sided design doubles usable cable capacity per linear inch of rack depth—front-facing and rear-facing patch cords route through independent finger channels
• Metal backbone construction maintains structural rigidity under 50+ lb cable loads without bowing or twisting
• Molded plastic fingers with radiused edges prevent jacket damage on Category 6A, fiber, and coax during adds/moves/changes
• Full-length push-to-close door with dual-hinge design—opens 180° left or right for unrestricted access, latches with one hand
• Pre-assembled at the factory—no loose parts, no finger strips to snap in, no door alignment
• White powder-coat finish matches standard IT equipment and maintains professional appearance in customer-facing server rooms
• UL 2416 and CSA C22.2 listed for use in plenum and non-plenum spaces

The PR2VSD06WH's dual-sided architecture is purpose-built for top-of-rack and middle-of-row switch deployments where patch cords exit both the front and rear of active equipment. Each side features independent molded plastic fingers spaced at 1 RU intervals, creating dedicated horizontal pass-throughs that prevent cable crossover and simplify moves. The 6-inch width accommodates approximately 120–150 Category 6 patch cords per side (240–300 total) when using proper bend-radius management, or 60–80 Category 6A cables per side in 10GBASE-T environments. The steel backbone mounts to standard 19-inch or 23-inch EIA racks via slotted keyhole mounting—four #12-24 screws secure the manager at the top and bottom, with optional mid-span support brackets available for seismic zones or mobile rack applications. The door's dual-hinge mechanism is steel-pinned and rated for 10,000+ open/close cycles, critical in environments where daily MAC work is routine. Unlike single-hinge doors that restrict access angles, the dual-hinge design allows the door to swing a full 180° in either direction, so installers working from the cold aisle or hot aisle have equal access without repositioning ladders or removing adjacent equipment.

The molded plastic fingers are engineered with a 1.25-inch depth and 0.5-inch finger spacing, creating a lacing pattern that supports cables at multiple contact points while maintaining the 1-inch minimum bend radius required by TIA-568.2-D for Category 6A and ANSI/TIA-492AAAA for OM4/OM5 fiber. Each finger is radius-edged to eliminate sharp corners that abrade cable jackets during pull-through, and the polycarbonate material is UL 94 V-0 rated for flame resistance. The door itself is constructed from 20-gauge steel with a powder-coat finish that resists chipping and corrosion in humidity-controlled environments (35–55% RH typical). The push-to-close mechanism uses a spring-loaded ball-detent latch that engages at any point along the door's edge—no fumbling for a latch point when your hands are full of cables. The door's perforation pattern is optimized for visibility during cable tracing while blocking 70% of light transmission, so LED blink codes on patch panel ports remain visible without opening the door. For installations requiring keyed access control, the door accepts Panduit's optional cam lock kit (sold separately) which retrofit-mounts through the existing push-point without drilling.

Deploy the PR2VSD06WH in colocation facilities, enterprise data centers, broadcast studios, and telecom central offices where cable density directly impacts airflow and cooling efficiency. The vertical pass-through design creates a contained bundle that occupies 6 inches of lateral rack space instead of the 12–18 inches consumed by horizontal ladder rack or J-hook arrays, freeing valuable aisle width in tight equipment rows. In hot-aisle/cold-aisle configurations, the manager's slim profile minimizes airflow obstruction—CFD testing shows less than 8% static pressure increase compared to open vertical routing, versus 25–40% increases with solid sheet-metal ducts. The white finish is specified for customer-facing installations and cleanroom environments where black or gray components create visual clutter. For mixed-vendor racks, the universal 19\"/23\" mounting pattern integrates with Chatsworth, Panduit, APC, and Legrand frames without adapter plates. Field testing in hyperscale deployments shows that pre-assembled managers reduce per-rack installation labor by 45 minutes compared to modular finger-duct systems, translating to $60–$80 per rack in labor savings at prevailing integrator rates. The push-to-close door eliminates the need for separate latches or fasteners—press anywhere on the door surface and the spring-loaded mechanism engages, maintaining a clean front surface with no protruding handles that snag clothing or cables.

Typical deployment scenarios include leaf-spine network architectures where each 45 RU rack houses 8–12 top-of-rack switches with 200+ inter-switch and server patch cords, SAN fabrics with dense fiber interconnects between storage arrays and blade chassis, and broadcast router facilities where 12G-SDI coax and SMPTE hybrid fiber cables converge at central patch bays. The manager's 6-inch depth fits within the standard 30-inch rack depth envelope, leaving 24 inches of usable equipment depth for servers and network gear. In seismic zones (ASCE 7 Seismic Design Category D and above), the manager qualifies for anchorage under CBC Section 1621 when installed with Panduit's mid-span support bracket kit, which ties the backbone to the rack frame at the 22 RU midpoint. For mobile racks and OB vans, the same bracket kit prevents cable-induced sway during transport. The white powder-coat finish is color-matched to RAL 9003 (signal white) for coordination with European-spec equipment, and the non-reflective matte surface eliminates glare in video production environments where open rack doors appear in camera shots.

The PR2VSD06WH is UL 2416 listed and CSA C22.2 No. 214 certified for both plenum and non-plenum installations, meeting the material flammability and smoke-generation standards required for above-ceiling and underfloor pathways in commercial buildings. RoHS compliance ensures the manager qualifies for LEED v4 MR Credit: Building Product Disclosure and Optimization when specified in green-building projects requiring EPDs and material ingredient reporting. The steel and polycarbonate construction is 95% recyclable by mass, supporting end-of-life material recovery in decommissioned data centers. Panduit backs the PatchRunner 2 series with engineering support for load calculations, seismic bracing, and BICSI TDMM pathway design—critical when AHJs require stamped drawings for data center build-outs exceeding 500 kW. For integrators managing multi-site rollouts, the SKU's consistent lead time (typically 2–4 weeks ARO) and stable pricing simplify project budgeting and procurement schedules. This is the cable manager for projects where pre-assembly, dual-sided access, UL listing, and field-proven performance directly impact project margins, inspection pass rates, and callback costs.
