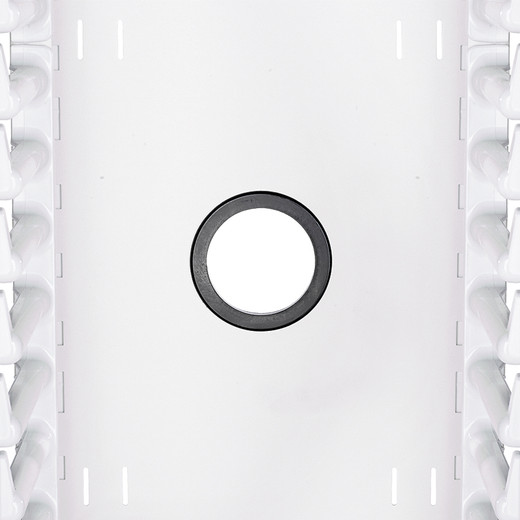

Panduit PR2VGK PatchRunner 2 Bend Radius Grommet
High-density vertical cable managers create a critical vulnerability at backbone pass-through points where cables transition from front to back. Without edge protection, Cat6A and fiber bundles scrape against sharp metal edges during installation and moves-adds-changes, degrading jacket integrity and violating minimum bend radius specs. The Panduit PR2VGK grommet solves this by providing a rubber-lined 3-inch pass-through insert that guides cables safely through PR2V vertical manager openings while maintaining TIA-568.2-D compliant bend geometry. Each pack includes five grommets—enough to outfit a full 45RU or 52RU manager with front-to-back routing at standard intervals.
Key Features
- Rubber edge protection prevents cable jacket damage at backbone pass-through points
- Maintains TIA-568 compliant bend radius for Cat6A, fiber, and high-performance copper
- Snap-in installation in 3\" diameter openings—no tools or fasteners required
- Five grommets per pack cover typical requirements for 45RU and 52RU vertical managers
- Black finish matches Panduit PatchRunner 2 aesthetics in data center hot/cold aisle deployments
- RoHS compliant for projects with environmental procurement requirements
The PR2VGK addresses a specific failure mode in structured cabling: premature cable wear at manager transitions. Installers running 200+ cables through a vertical manager face two competing pressures—maximizing density while preserving performance. Metal pass-through edges, even with deburred factory prep, concentrate stress on outer jacket layers during pulls and service loops. Over 18-36 months, vibration from HVAC and repeated MAC work fatigues the jacket at these contact points, exposing conductors to moisture ingress and creating potential pathway loss. The rubber grommet eliminates the hard edge entirely, distributing contact force across a 3.5-inch diameter surface. Material durometer is calibrated to grip the manager opening without requiring adhesive, yet flex enough to accommodate bundle swell when cables are dressed. Installation takes under 10 seconds per grommet—align the outer flange with the pass-through hole and press until the retention lip clicks into place.
Use PR2VGK grommets in any deployment where cables cross the vertical manager backbone: front-mounted patch panels feeding rear-mounted switch infrastructure, vertical riser distribution to horizontal overhead cable trays, or zone cabling architectures where a single manager serves multiple equipment rows. The 3-inch opening diameter supports bundles up to roughly 40-50 Cat6A cables or 12-fiber trunk assemblies, depending on jacket OD and bend radius multiplication factor. For projects subject to TIA-569 pathway standards or manufacturer warranty terms that void coverage on kinked cables, these grommets provide auditable evidence of proper installation practice. They're particularly critical in 10GBASE-T and 25G/40G Ethernet environments where alien crosstalk and return loss margins are tight—any jacket deformation that compresses pair geometry translates directly to failed channel certification.
Each PR2VGK pack contains five grommets and meets RoHS material restrictions for EU and California installations. Compatible with all Panduit PatchRunner 2 vertical cable managers (45RU and 52RU heights) featuring 3-inch backbone pass-through punches. For smaller 2-inch openings or custom manager configurations, consult Panduit's cable management accessory matrix to identify the appropriate grommet SKU.
