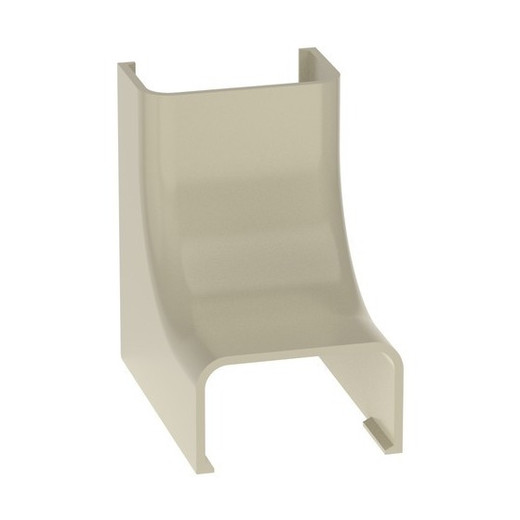

Panduit ICFC10EI-X Inside Corner Bend Radius Fitting for Pan-Way LD10 Raceway
The Panduit ICFC10EI-X is an inside corner bend-radius control fitting for Pan-Way™ LD10 and LDPH10 single-channel surface raceway. When low-voltage cabling has to navigate an interior wall corner, this fitting locks the bend geometry to a consistent 1-inch radius — preventing kinks, protecting cable jackets, and keeping the finished installation looking intentional rather than improvised. At 1.62 in. wide and 0.93 in. tall, it matches the LD10/LDPH10 profile exactly and snaps into place without tools.
Key Features
- 1-Inch Controlled Bend Radius: Forces cable to follow a defined arc at interior corners rather than a sharp fold. On Cat6 or coax runs, a too-tight bend degrades signal — this fitting enforces the geometry automatically so there's no guesswork during installation.
- Snap-Lock Installation: No screws, no adhesive. The fitting locks directly onto LD10 or LDPH10 raceway sections, which makes it practical for finishing corner transitions on a live site without stopping to find a screwdriver.
- ABS Construction, UL94V-0 Rated: The ABS plastic meets UL94V-0 flame spread requirements and FT4 cable-tray flame ratings — relevant anywhere the raceway runs through a plenum-adjacent or code-sensitive ceiling or wall cavity.
- TIA/EIA and UL5A Compliance: The fitting meets TIA/EIA structured cabling pathway standards and carries UL5A listing, which satisfies inspectors and AHJs in commercial and institutional projects without requiring a variance or substitution request.
- Electrical Ivory (Marfil Eléctrico) Finish: Matched to the LD10/LDPH10 color family for a consistent appearance on painted drywall or finished interior surfaces — important on above-desk or conference room installations where the raceway is visible.
- Pack of 10, Carton of 50: Sold in 10-piece packs. For a multi-room deployment with a dozen or more interior corners, ordering by the carton (50 pieces) avoids running short mid-project.
- Compact Profile — 2.49 in. Length: The 2.49-in. overall length keeps the fitting footprint tight at each corner, which matters in installations where raceway runs close to door frames, outlet boxes, or other wall hardware.
Integration & Compatibility
The ICFC10EI-X (often searched as ICFC10EI X) is purpose-built for Panduit Pan-Way LD10 and LDPH10 single-channel raceway. It is not cross-compatible with wider or deeper Panduit raceway families — confirm your installed raceway model before ordering. For complete surface raceway systems, pair with the matching outside corner, flat elbow, tee, and end cap fittings in the LD10 accessory family to maintain code compliance at every transition point. Consult a wire management planning guide if you are routing structured cabling in a mixed-raceway environment to verify fitting selection at each transition.
What's in the Box
- 10x Panduit ICFC10EI-X inside corner bend radius fittings (electrical ivory)
Frequently Asked Questions
Q: What raceway channels is the ICFC10EI-X compatible with?
A: The ICFC10EI-X is designed specifically for Panduit Pan-Way LD10 and LDPH10 single-channel surface raceway. It is not listed for use with other raceway widths or depths in the Panduit line.
Q: How is the ICFC10EI-X installed — does it require adhesive or screws?
A: No. The fitting uses a snap-lock (quick-close) mechanism that attaches directly to the raceway without tools, adhesive, or fasteners.
Q: What flame and safety ratings does the ICFC10EI-X carry?
A: The fitting meets UL94V-0 (flame spread), FT4 (cable tray flame), TIA/EIA structured cabling pathway standards, and carries UL5A listing.
Q: How many fittings come in a package, and what is the carton quantity?
A: Each package contains 10 fittings. The full carton contains 50 fittings (5 packs).
Q: What color is the ICFC10EI-X?
A: Electrical ivory (marfil eléctrico), matched to the LD10/LDPH10 raceway color family for a consistent finished appearance.
The ICFC10EI-X is the fitting I reach for when a Pan-Way LD10 run hits an interior wall corner and the crew needs to keep moving without hunting for tools. The snap-lock attachment is genuinely fast — no screws, no adhesive — and the 1-inch controlled bend radius is the spec that actually protects the cable, not just the aesthetics of the run.
Technical Highlights:
- UL94V-0 / FT4 Flame Rating: ABS at this rating handles the code requirements for most commercial interior installations, including runs near drop ceilings and plenum-adjacent cavities, without needing a separate fire-stop fitting at the corner.
- UL5A Listing + TIA/EIA Compliance: These two together are what the inspector is looking at on a structured cabling walkthrough. Having both on a single fitting eliminates the conversation about substitution approvals on the day of inspection.
- Pack-of-10 / Carton-of-50 Sizing: On a 20-room office fit-out with two interior corners per room, you are at 40 fittings minimum before accounting for rework. Ordering by the carton (50 pieces) is the correct call — running short on a finish fitting mid-job is an avoidable delay.
Deployment Considerations:
- Confirm raceway model before ordering: the ICFC10EI-X fits LD10 and LDPH10 only. It will not seat correctly on wider Panduit families like the LD5 or LD10X — check the raceway label before specifying.
- Color match matters more than it seems on above-desk runs. The electrical ivory finish is specific to the LD10 color family — if your raceway is a different Panduit color variant, order the matching color fitting or the transition will stand out on every wall.
For commercial office, education, or healthcare low-voltage cabling projects where LD10 raceway is already spec'd and interior corners are frequent, the ICFC10EI-X keeps the installation clean, code-compliant, and moving at pace.
