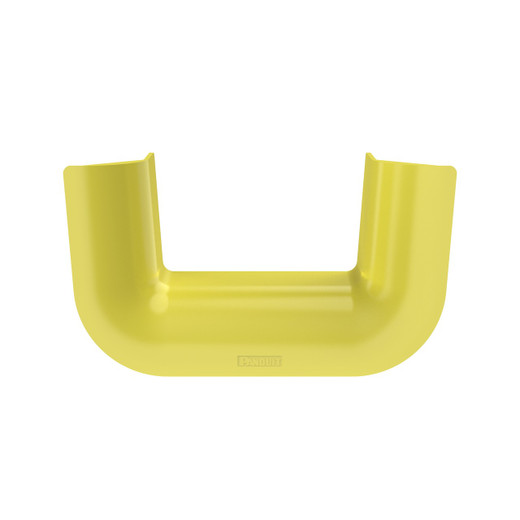

Panduit FRTR6X4LYL FiberRunner® 6x4 Bend Radius Control Trumpet

The Panduit FRTR6X4LYL is a bend radius control trumpet designed to protect fiber optic cables at critical exit points in 6x4 FiberRunner channel systems. This yellow polycarbonate/ABS component enforces a minimum 3-inch (76.2mm) bend radius when cables transition from the 6x4 horizontal pathway or tee fitting, preventing the micro-bending and signal attenuation that occurs when fiber is routed too tightly. In data centers and telecom central offices running high-density single-mode or multimode fiber trunks, maintaining manufacturer-specified bend radius limits is non-negotiable — violations degrade optical performance, increase bit error rates, and can cause permanent cable damage. The FRTR6X4LYL integrates directly into Panduit's FiberRunner infrastructure to provide passive, tool-free bend protection at every horizontal-to-vertical transition.

Key Features

• Enforces 3-inch minimum bend radius at 6x4 FiberRunner channel exits and horizontal tee fittings
• Polycarbonate/ABS construction for impact resistance and long-term dimensional stability in plenum and riser environments
• High-visibility yellow finish for rapid identification during MACs and troubleshooting
• UL Listed to Standard 2024 (Optical Fiber Cable Routing Assemblies) and compliant with Telcordia GR-63-CORE NEBS Level 3
• RoHS compliant for environmentally responsible installations
• Direct-fit design for Panduit 6x4 FiberRunner channel — no brackets or adapters required
• 5.96" height × 10.89" width footprint accommodates high-fiber-count bundles

Fiber optic cable performance is directly tied to bend radius compliance. Single-mode fiber typically requires a minimum dynamic bend radius of 20× cable diameter (often 2–3 inches for distribution cables), while OM3/OM4 multimode fiber standards specify similar limits to prevent modal dispersion and insertion loss spikes. The FRTR6X4LYL trumpet provides a smooth, radiused guide surface that physically prevents cables from exceeding these thresholds during installation or when bundles shift due to adds and changes. This is especially critical in overhead ladder rack and cable tray transitions where installers might otherwise create sharp 90° bends to drop into equipment racks. The trumpet's 3-inch control radius meets TIA-568 and manufacturer warranty requirements for both single-mode OS2 and multimode OM3/OM4 trunk cables, ensuring that your 40G/100G/400G fiber links maintain spec'd insertion loss budgets and pass OTDR certification testing.

Designed for hyperscale data centers, colocation facilities, and telco central offices deploying structured fiber backbones, the FRTR6X4LYL mounts at every point where the 6x4 FiberRunner horizontal pathway intersects with vertical cable managers, ladder racks, or equipment cabinets. Pair it with Panduit's 6x4 FiberRunner channel, tee fittings, and vertical cable managers to build a complete pathway system that guides fiber from entrance facilities and MDA/IDA cross-connects down to EOR/TOR switch cabinets without a single radius violation. The yellow colorway matches Panduit's standard FiberRunner palette for single-mode systems (though it works equally well with multimode), making it easy for technicians to visually trace pathways during MAC work or when diagnosing link issues. The polycarbonate/ABS blend resists the UV exposure, temperature swings, and mechanical abuse common in raised-floor data centers and outdoor-rated telco huts.

The FRTR6X4LYL is UL Listed to Standard 2024 for optical fiber cable routing assemblies and meets all applicable tests in Telcordia GR-63-CORE (NEBS Level 3), the gold standard for telecom equipment subjected to earthquake, fire, and airborne contaminant exposure. This compliance is required for installations in Tier III/IV data centers, carrier hotels, and any facility pursuing LEED or Uptime Institute certification. Ships in cartons of 5 units (package quantity: 1 trumpet per unit) for multi-row deployments. Integrates exclusively with Panduit 6x4 FiberRunner channel and horizontal tee assemblies — verify your pathway dimensions before ordering, as this trumpet is not compatible with 4x4, 2x2, or non-Panduit fiber management systems.
