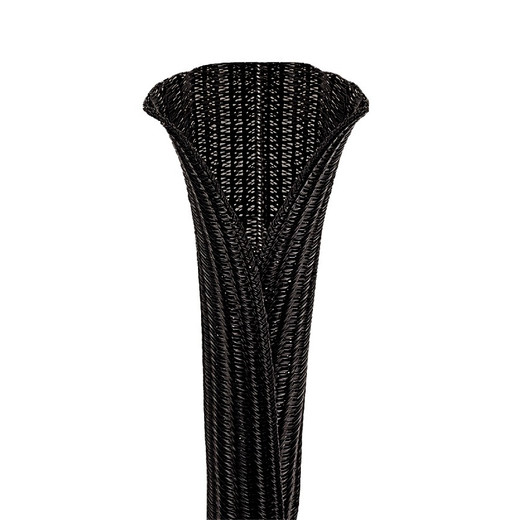

Panduit SE125PS-LQR0 Pan-Wrap™ Split Braided Sleeving

The Panduit SE125PS-LQR0 Pan-Wrap™ split braided sleeving solves a recurring installation problem: protecting cable runs that are already routed and terminated. Unlike traditional sleeving that requires threading from an end point, this 1.25" nominal diameter PET sleeve features a split construction that wraps around existing bundles—eliminating the need to disconnect terminations or pull through tight spaces. The 75-foot spool delivers continuous abrasion protection across long runs in transportation, marine, and industrial environments where cable damage translates to downtime and expensive service calls. UL 94 V-0 flammability rating and halogen-free construction meet stringent passenger rail standards in both U.S. and European jurisdictions.

Key Features

• Split construction enables installation on terminated cable assemblies without disconnection
• 1.25" (31.8 mm) nominal diameter accommodates bundled power, data, and control cables
• Polyethylene Terephthalate (PET) braided weave provides continuous abrasion resistance over irregular cable shapes
• Open weave design allows heat dissipation and moisture escape—critical for enclosed equipment bays and outdoor runs
• Operating temperature range -94°F to 257°F (-70°C to 125°C) spans Arctic cold starts through engine compartment heat exposure
• UL 94 V-0 flammability rating, CSA certified, UL Recognized E116868, RoHS compliant, halogen-free
• 75-foot (22.86 m) continuous length minimizes splices on long equipment runs
• Black finish provides professional appearance and UV fade resistance in exposed installations

The split-weave architecture addresses two deployment challenges integrators face with conventional sleeving: retrofit accessibility and thermal management. In marine electronics cabinets, AV equipment racks, or vehicle wire harnesses, cables are typically bundled and terminated before protection needs become apparent—corrosion from salt spray, abrasion from vibration, or damage during subsequent service work. Threading solid sleeving over DB connectors, RJ45 boots, or terminal blocks is impractical; this split design simply wraps around the bundle and self-closes through the braid tension. The open PET weave allows convection cooling across the protected bundle rather than trapping heat like solid jacketing—important when protecting high-current DC power feeds to PoE switches or densely packed Cat6A data trunks where heat buildup degrades performance. The braid flexes around bends and branches without kinking, maintains protection through repeated flexing cycles (cable trays to moving gantries), and resists fraying at cut ends better than nylon alternatives.

Compliance profiles matter in passenger-carrying installations. The UL 94 V-0 flammability classification indicates self-extinguishing behavior within 10 seconds and no flaming drips—required by Amtrak, commuter rail authorities, and marine certifiers (USCG, IMO) for cable protection in occupied spaces. Halogen-free formulation eliminates corrosive acid gases during fire conditions that damage adjacent electronics and create toxic smoke. RoHS compliance and UL Recognition (E116868) simplify specifications for integrators working under LEED mandates or federal contract requirements. The material remains flexible and abrasion-resistant across the full -94°F to 257°F range: installations span unheated outdoor camera pedestals in northern climates (cold-soak startup) through wire bundles routed near diesel generator exhaust manifolds or HVAC equipment. PET's moisture resistance prevents wicking and mildew growth in marine bilge environments or outdoor conduit sweeps where condensation occurs.

Each 75-foot spool covers typical cabinet-to-cabinet runs or vehicle equipment bay spans without mid-run splices that create catch points during cable pulls or service access. The 1.25" nominal diameter suits bundles of 6-12 Cat6 cables, mixed power/data assemblies to access control panels, or grouped coax/ethernet/power drops to IP camera arrays. Installation pairs with Panduit's sleeving tools (sold separately) that spread the braid for fast loading, or hand-install by rotating the sleeve around the bundle. For integrators managing transportation projects (rail CCTV, fleet telematics, marine navigation systems), AV installations with frequent re-termination needs, or industrial control panels where cable protection must survive vibration and temperature cycling, this split sleeving delivers field-proven abrasion resistance and regulatory compliance in a retrofit-friendly package. Packaged as a single 75-foot spool, carton quantity 2 for volume projects.
