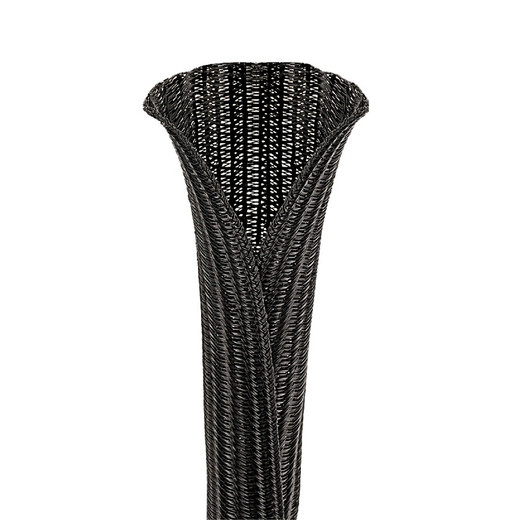

Panduit SE125PSFR-LQR0 Pan-Wrap Flame-Retardant Braided Sleeving

The Panduit SE125PSFR-LQR0 delivers continuous abrasion protection for wire bundles, cables, hoses, and tubing in transportation, marine, and industrial environments where flame spread is a critical concern. This 1.25-inch diameter braided expandable sleeving uses flame-retardant polyethylene terephthalate (FR PET) in an open-weave construction that shields against mechanical wear while maintaining airflow and flexibility. Each 75-foot reel provides enough coverage for mid-sized cable runs in transit vehicles, vessels, or equipment rooms where halogen-free materials and rail-compliance certifications are specified.

Key Features

• 1.25" (31.8mm) nominal diameter accommodates bundled cables and irregular shapes
• Flame-retardant PET construction meets UL 1441 VW-1 and EN 45545-2 rail standards
• Open-weave design prevents heat and humidity buildup in enclosed routing paths
• Halogen-free formulation complies with European passenger rail and marine safety codes
• Black with white tracer for visual identification in mixed cable environments
• Highly flexible braided structure expands and contracts around connectors and splices
• 75-foot reel length suits transit vehicle installations and equipment cabinet builds
• CSA certified and UL Recognized (E116868) for North American projects

Open-weave braided sleeving solves a persistent problem in mobile and marine installations: you need abrasion protection, but traditional solid-wall conduit or heat-shrink tubing traps heat, adds weight, and can't flex around moving cables or irregular bundles. The SE125PSFR-LQR0's expandable PET braid conforms to bundle shapes without collapsing airways, allowing ventilation and moisture escape while shielding against chafing on metal edges, vibration wear, and accidental tool strikes. The split construction expands to nearly double its nominal diameter during installation, then contracts around the protected bundle—no need to disconnect terminals or remove connectors. For retrofit jobs on existing rail cars, buses, or marine control panels, this means you can add protection without tearing down complete harnesses.

Transportation and marine integrators specify this sleeving because it checks multiple compliance boxes in a single product. EN 45545-2 certification qualifies it for European passenger rail interiors where smoke density and flame spread are regulated. UL 1441 VW-1 flammability rating meets North American transit authority requirements for wire covering materials. The halogen-free formulation prevents corrosive smoke in fire scenarios—critical in enclosed vehicle cabins or below-deck equipment spaces where evacuation is constrained. CSA and UL recognition streamline specification approval for projects crossing multiple jurisdictions. The black-with-white-tracer colorway provides visual coding for maintenance crews: white stripe indicates protected runs vs. standard black sleeving on non-critical circuits.

Installation ergonomics matter on large cable builds. The Pan-Wrap construction allows a single technician to load cables into the sleeving by feeding the bundle through while the braid expands, then releasing to let the weave contract around the wires. Optional Panduit installation tools (sold separately) further reduce loading time by holding the sleeving open while you insert the bundle. Each 75-foot reel delivers enough material for two typical bus camera runs (rear camera to front DVR) or three marine instrument panel feeds, minimizing mid-run splices and reducing inventory SKU count. The lightweight PET material doesn't add significant weight to overhead cable trays in rail cars or ceiling-mounted conduit in vessels—an advantage over braided metal sleeving in weight-sensitive applications.

Durability testing shows PET braided sleeving withstands UV exposure, salt spray, and hydrocarbon fuels better than nylon alternatives, making it the right choice for exterior routing on deck equipment, rooftop HVAC controllers, or engine-room sensor cables. The material won't wick moisture into the bundle the way fabric sleeving can, and it resists fraying at cut ends without requiring heat-sealing or end caps. For integrators building custom cable assemblies, this translates to faster termination and lower rework rates. The 1.25-inch diameter suits bundles in the 0.75- to 1.5-inch range—typical for six to twelve 18 AWG control wires, four shielded Cat6 cables, or a mixed bundle of power and signal lines feeding a vehicle multiplexer.

This sleeving ships in carton quantities of two reels and is RoHS-compliant for projects with European directives or California Prop 65 considerations. The UPC barcode (061305679644) integrates with inventory management systems for transportation fleet maintainers and marine service depots stocking common repair materials. When you're specifying protection for cable runs in rail vehicles, buses, ferries, or industrial mobile equipment, and the job requires documented compliance with passenger-safety flammability standards plus halogen-free materials, the SE125PSFR-LQR0 provides the mechanical protection, regulatory approvals, and installation efficiency to meet spec without custom fabrication or multiple product sourcing.
