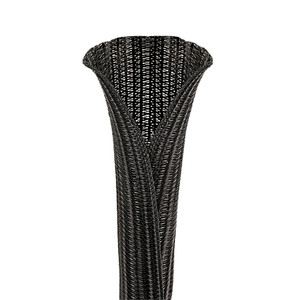

Panduit SE100PS-CR0 Pan-Wrap Split Braided Sleeving
The Panduit SE100PS-CR0 delivers post-installation cable protection for security and low-voltage runs where re-entry access matters. This 1-inch diameter PET braided sleeving ships in 100-foot rolls and installs over terminated cables through its lengthwise slit—no need to disconnect endpoints or pull connectors through tight weave. Integrators working retrofit jobs, cable-dense racks, or environments with rodent/abrasion risk get continuous mechanical protection without tearing down existing infrastructure. The open-weave construction maintains airflow around conductors, preventing heat buildup in bundled runs or enclosed pathways where solid conduit would trap thermal load. UL 94 V-0 flammability rating and RoHS compliance meet commercial and datacenter fire-safety requirements.
Key Features
- Split lengthwise design installs over cables with connectors already terminated—no disassembly required
- 1" nominal diameter accommodates bundled Cat6/6A runs, coax trunks, or multi-conductor control cable
- PET (polyethylene terephthalate) construction resists abrasion, cuts, and UV exposure in cable trays or outdoor-rated enclosures
- Open-weave braid allows heat dissipation and prevents moisture accumulation in humid mechanical rooms or exterior runs
- Temperature range -94°F to 257°F (-70°C to 125°C) spans freezer installations to equipment-room hot aisles
- UL 94 V-0 rated and CSA certified for plenum-alternative installations where flame spread matters
- Halogen-free formulation produces lower smoke density during fire events in occupied spaces
The SE100PS-CR0's split-sleeve architecture solves the retrofit protection problem. Traditional braided sleeving requires fishing every cable end through the weave during initial installation—impossible when BNC connectors, RJ45 boots, or multi-pin headers are already crimped. This product opens along its length, wraps around the cable bundle, and the weave's natural tension holds it closed during normal handling. Integrators use this on camera whips exiting junction boxes, between patch panels and switch stacks, or protecting cable drops in factories where fork traffic or sharp metal edges threaten jacket integrity. The 1-inch diameter fits 6–10 Cat6 cables bundled together, or single runs of Belden 1694A SDI coax with space for service loop slack. The PET material resists diesel fuel, most solvents, and the salt spray found in coastal parking structures—unlike nylon alternatives that wick moisture and lose tensile strength.
Open-weave construction differentiates this from solid-wall split loom or spiral wrap. Each PET strand crosses at 45-degree angles, creating diamond-shaped openings that allow airflow perpendicular to the cable axis. This prevents the condensation trap effect you see with closed conduit in refrigerated warehouses or outdoor camera runs subject to day-night temperature swings. Heat from PoE++ switches (30W per port) dissipates through the weave rather than building up inside the bundle, maintaining twisted-pair insertion loss spec across the channel. The open structure also simplifies mid-span breakouts—pull the weave apart at any point along the length to route a single cable off to a device without cutting the sleeving. When troubleshooting, the split design lets you expose the cable jacket for toning or visual continuity checks, then close the sleeve back over the run without replacing the entire length.
The UL 94 V-0 flammability rating indicates the material self-extinguishes within 10 seconds after removal of flame, and does not drip flaming particles. This matters in cable trays above suspended ceilings where municipal code inspectors enforce NFPA 70 (NEC) Article 800 limits on non-plenum cable outside raceways. While the SE100PS-CR0 itself is not plenum-rated, its V-0 classification plus halogen-free formulation (produces less HCl gas during combustion) satisfies many AHJs when used as mechanical protection over plenum-rated conductors. The 100-foot roll length supports datacenter row installations or parking-garage camera circuits without mid-run splices—fewer joints mean fewer points where the protective sleeve could separate under cable tray movement or seismic lateral load. CSA certification confirms compliance with Canadian electrical code C22.2, required for cross-border projects or federal installations referencing Canadian standards.
