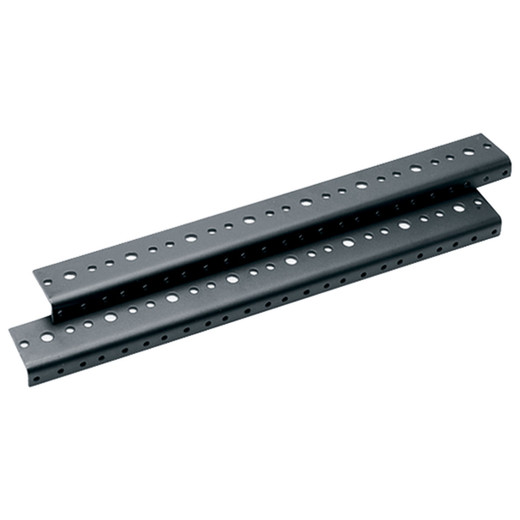

Middle Atlantic Pair Space (14) Full Hole Rackrail Black E-Coat finish - RRF8

Middle Atlantic RRF8 8RU Full-Hole Rackrail Pair — Black E-Coat Finish

Overview

The Middle Atlantic RRF8 is an 8-rack-unit full-hole rackrail pair designed for integrators building or expanding open-frame and enclosed rack systems. Sold as a single pair, the RRF8 replaces worn, damaged, or mismatched rails in existing Middle Atlantic rack enclosures, or supplements new builds where additional racking surface is needed. At 14 inches tall and 0.68 inches wide, each rail fits cleanly into standard Middle Atlantic rack channels without shimming or modification. The black E-coat finish provides corrosion resistance that holds up in equipment rooms where temperature swings and humidity are routine concerns.

Full-hole rails use 10-32 threaded holes spaced on standard EIA-310 rack pitch. That threading matters: 10-32 hardware is the default fastener for virtually all 19-inch rack-mount equipment targeting commercial AV, security, and IT infrastructure, so you won't be hunting for specialty screws or adapters when mounting switches, NVRs, amplifiers, or UPS units against these rails.

Key Features

• 8 RU of usable mounting space: 14 inches of rackable height gives you 8 rack units — enough for a mid-density shelf, a stack of patch panels, or a mix of 1U and 2U security appliances in a partial rack deployment. When a 4U gap exists in a populated rack, the RRF8 fills it cleanly rather than leaving empty channel exposed.
• 10-32 full-hole pattern: Every position is threaded to 10-32, the universal fastener standard for commercial rack hardware. No square-hole cage nuts required — thread a screw directly and torque it down. This matters on cramped installation schedules where cage-nut wrestling is a time sink.
• Black E-coat finish: Electrophoretic coating bonds uniformly to the steel substrate, including interior edges and recessed areas that spray finishes miss. The result is a corrosion-resistant rail that won't show surface rust in humid IDF closets or outdoor-rated enclosures with condensation exposure.
• Compact 0.68-inch rail width: At under three-quarters of an inch wide, the RRF8 slides into Middle Atlantic rack channels and leaves full clearance for cable management hardware running alongside. Tight equipment rooms where lateral space is already constrained benefit from a rail this narrow.
• 1.53-inch depth: The shallow 1.53-inch profile means rear-mounted equipment gets full depth clearance. On shorter rack enclosures where usable depth is already limited, a thicker rail would eat into that margin — this one doesn't.
• Lightweight at 1.79 lbs shipping weight: The pair ships under 2 pounds, which keeps freight costs negligible on multi-rack projects where you're ordering rails in quantity alongside heavier enclosure components.
• Sold as a single pair (package count: 1): Pricing and ordering are per-pair, not per-rail. If you're outfitting a dual-post open-frame rack, one unit covers both sides for the 8 RU span. Order multiples for full-height builds.

Integration & Compatibility

The RRF8 is designed for Middle Atlantic rack systems using standard EIA-310 19-inch rail mounting. The 10-32 threaded pattern is compatible with the vast majority of commercial rack-mount equipment from security appliances and network video recorders to managed PoE switches and rack-mount UPS units. Integrators building out Middle Atlantic rack enclosures will find the RRF8 a direct fit for standard channel slots — verify your enclosure model's rail channel specification before ordering to confirm the 10-32 full-hole style matches your build. For projects involving rack infrastructure components like cable management, blanking panels, or shelf units, the 8 RU span aligns to standard 1U/2U/4U accessory sizing without modification. When planning power and rack layouts for surveillance or AV equipment rooms, full-hole rails simplify mounting compared to square-hole alternatives because no cage nut insertion is required — a real time saver when mounting density is high.

What's in the Box

• 1x Middle Atlantic RRF8 rackrail pair (black E-coat, 8 RU, 10-32 full-hole)

Frequently Asked Questions

Q: What rack unit size does the RRF8 cover?

A: The RRF8 covers 8 rack units (8 RU), with a physical height of 14 inches (35.6 cm) per rail.

Q: What thread type does the RRF8 use — 10-32 or 12-24?

A: The RRF8 uses 10-32 threaded holes. This is the standard for most commercial AV, security, and IT rack-mount equipment. No cage nuts are required.

Q: Is the RRF8 sold as a single rail or a pair?

A: The RRF8 is sold as a pair — one package contains both left and right rails for an 8 RU span.

Q: What finish does the RRF8 have, and does it resist corrosion?

A: The RRF8 has a black E-coat (electrophoretic coating) finish. E-coat bonds uniformly to the steel including interior edges, providing corrosion resistance suited for equipment rooms with humidity or temperature variation.

Q: What are the physical dimensions of each RRF8 rail?

A: Each rail is 14 inches (35.6 cm) tall, 0.68 inches (1.7 cm) wide, and 1.53 inches (3.9 cm) deep. Shipping weight for the pair is 1.79 lbs (0.8 kg).

Q: Can the RRF8 be used in open-frame racks as well as enclosed cabinets?

A: Yes. The RRF8 is a standard Middle Atlantic rackrail compatible with both open-frame two-post and enclosed rack enclosures that accept this rail style. Confirm your enclosure model supports the 10-32 full-hole rail format before ordering.

Jerry Tildsen

The RRF8 is a part I keep on the truck for rack retrofit jobs — the 10-32 full-hole pattern and 8 RU span make it the right answer when a client needs to repair or extend an existing Middle Atlantic enclosure without ordering a complete rail set. The E-coat finish on this rail is not decorative; it's a functional coating that resists corrosion in the kind of humid IDF closets and outdoor-rated enclosures I see regularly in commercial security builds.

Technical Highlights:

• 10-32 full-hole threading: Every hole is pre-threaded — no cage nuts, no insertion tools. On a dense 8 RU mounting run with a dozen screws per device, that's a genuine time saving over square-hole alternatives.
• 0.68-inch rail width: Narrow enough to preserve lateral clearance in tight enclosures where cable management trays or vertical PDUs occupy adjacent channels.
• 1.53-inch depth: Shallow profile keeps full usable depth available for rear-mounted equipment — relevant when you're working inside a shallower 18- or 24-inch enclosure where depth margin is already tight.

Deployment Considerations:

• Verify your enclosure accepts the 10-32 full-hole rail style before ordering — some Middle Atlantic enclosures are configured for square-hole or 12-24 threading, and a mismatched rail is a job-site problem you don't want.
• The RRF8 ships as one pair covering 8 RU. For a full 12U or 16U open-frame build, you'll need to order multiples — plan your rail count before the truck rolls.

The RRF8 fits best in retrofit and repair scenarios — specifically, replacing a damaged rail in an existing Middle Atlantic rack in a commercial security equipment room, or extending usable racking surface in a partially populated enclosure without pulling the entire frame.
