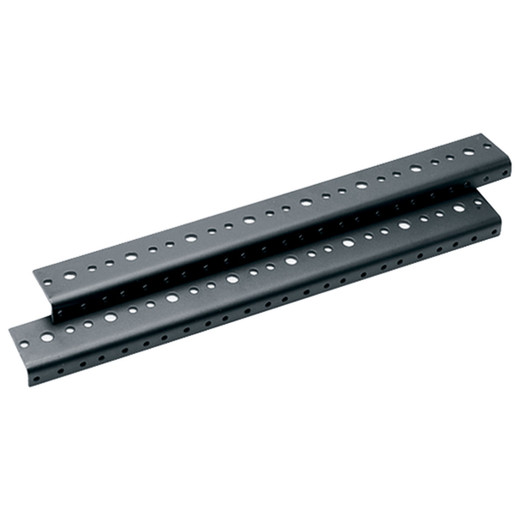

Middle Atlantic Pair 21 Space 36 3/4 Full Hole Rackrail Black E-Coat Finish - RRF21

Middle Atlantic RRF21 21U Full-Hole 10-32 Rack Rail Pair, Black E-Coat

Overview

The Middle Atlantic RRF21 is a pair of 21-space (21U), full-hole 10-32 threaded rack rails finished in a durable black e-coat — the go-to replacement or retrofit rail set for open-frame and enclosed rack builds where you need clean, standardized mounting across every unit of vertical space. At 36.75 inches tall and just 0.68 inches wide, the RRF21 slips into standard rack channels without consuming valuable interior depth. If you're building out a security head-end, a telecom closet, or a network equipment rack and need consistent 10-32 threaded holes from top rail to bottom, this is the part to reach for.

Middle Atlantic's rack infrastructure line is widely deployed in AV, security, and broadcast environments, and the RRF21 reflects that heritage — consistent hole spacing, predictable thread engagement, and a finish that holds up in both climate-controlled server rooms and the less-forgiving environments of security equipment closets.

Key Features

• 21U Full-Hole Rail (36.75 in tall): Every rack unit position has a threaded hole — no skipped spaces, no guesswork when mounting dense equipment like NVRs, patch panels, or network switches. You're never hunting for a tapped hole that isn't there.
• 10-32 Thread Standard: The dominant thread type across enterprise and security rack hardware. Screws, cage nuts aren't required — the rail is pre-tapped, which speeds installation and eliminates the rattle risk of loose cage nuts backing out over time.
• Black E-Coat Finish: Electrocoat (e-coat) is applied via immersion and cured, producing a uniform film that reaches inside recesses and blind channels where spray finishes can't. The result is a corrosion-resistant surface that won't flake or chip the way powder coat can when rack hardware rubs against it repeatedly during installs and equipment swaps.
• Compact Profile (0.68 in wide × 1.53 in deep): The narrow width keeps interior rack clearance intact. At 1.53 inches deep, the rail doesn't eat into the equipment depth budget — critical when you're fitting full-depth servers or NVR chassis with rear cable management into a tight enclosure.
• Sold as a Pair: One package (RRF21) contains both left and right rails for a complete rack column — no need to order two separate units or hunt for a matching mate.
• Shipping Weight 5.2 lbs: Substantial enough to confirm you're getting steel construction, light enough that a single technician handles installation without assistance.

Integration & Compatibility

The RRF21 is designed for standard 19-inch rack infrastructure. The 10-32 thread pattern aligns with the EIA-310 rack standard, making these rails compatible with the vast majority of rack enclosures and open-frame rack systems in commercial security and IT deployments. Equipment with standard rack ears (1U, 2U, 4U NVRs, UPS units, patch panels, KVM switches) mounts directly without adapters.

When planning a rack build that pairs these rails with active equipment, consider the power and heat load early — a 21U bay fills up faster than expected when you account for cable management panels and blanks. Pairing the RRF21 with a structured rack planning approach prevents the common mistake of under-specifying vertical space and having to re-rail mid-project.

What's in the Box

• 1x Pair of Middle Atlantic RRF21 21U Full-Hole 10-32 Rack Rails (left and right), Black E-Coat finish

Frequently Asked Questions

Q: What thread type does the RRF21 use?

A: The RRF21 uses 10-32 threaded holes — the standard rack thread for enterprise and security AV equipment. No cage nuts are required; equipment with 10-32 rack screws mounts directly.

Q: Does the RRF21 package include both left and right rails?

A: Yes. One RRF21 package contains a matched pair — both the left and right rails for a complete 21U rack column.

Q: How tall are the RRF21 rails?

A: Each rail is 36.75 inches (93.3 cm) tall, spanning 21 rack units of mounting space.

Q: What is the e-coat finish and why does it matter?

A: E-coat (electrocoat) is an immersion-applied finish that uniformly covers all surfaces including recesses, providing corrosion resistance that spray or powder coat finishes can miss in complex profiles. It's more durable against repeated hardware contact than standard painted finishes.

Q: What are the physical dimensions of the RRF21 rails?

A: Each rail measures 36.75 in (H) × 0.68 in (W) × 1.53 in (D). The compact width and depth preserve interior rack clearance for equipment and cable management.

Q: Are the RRF21 rails compatible with standard 19-inch rack enclosures?

A: Yes. The RRF21 follows EIA-310 rack standards with 10-32 threading, compatible with standard 19-inch open-frame and enclosed rack systems used in security, IT, and AV installations.

Marty Allison

The RRF21 is a part I specify whenever a rack build needs retrofit rails or when I'm sourcing components for a custom open-frame head-end. The 10-32 full-hole pattern across all 21U means every position is usable — you're not working around a square-hole rail with adapters or skipping positions because the threading doesn't match your equipment's rack ears.

Technical Highlights:

• Full-Hole 10-32 Threading: Every one of the 21 rack unit positions is pre-tapped — no cage nuts, no adapters, no skipped spaces. For dense security head-ends where you're mounting NVRs, switches, and patch panels back to back, this matters more than it sounds.
• E-Coat Finish: Unlike powder coat, the electrocoat process reaches into the threaded holes themselves, protecting the threads from corrosion without building up material that would interfere with screw engagement. In equipment closets that aren't climate-controlled, this is the right finish choice.
• Compact Rail Geometry (0.68 in W × 1.53 in D): Keeps the rail footprint tight so you're not sacrificing depth budget inside the rack. At 36.75 inches tall, it fills a standard 21U column exactly — no trimming, no overhang.

Deployment Considerations:

• The RRF21 ships as a pair — one package covers a complete left/right column. Confirm your rack channel accepts this rail profile before ordering; Middle Atlantic makes multiple rail families with different channel engagement geometries.
• At 5.2 lbs for the pair, these are steel rails — durable, but verify your rack's channel load rating if you're stacking heavy chassis (4U NVRs, UPS units) across the full 21U run.

The RRF21 is the right call for security integrators building or retrofitting 21U head-end racks where 10-32 is the equipment standard — particularly in commercial access control and video surveillance closets where equipment swaps happen often enough that pre-tapped rails pay for themselves in installation time.
