Middle Atlantic RRF16 16U 10-32 Threaded Rack Rail
Overview

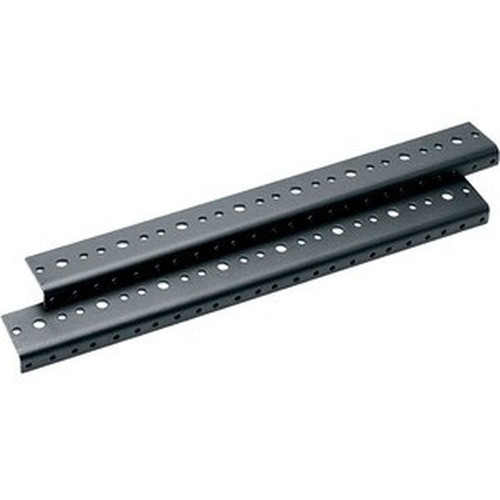

The Middle Atlantic RRF16 is a 16-rack-unit, 10-32 threaded rail designed for rack frame builds and equipment mounting in AV, security, and IT infrastructure deployments. At 28 inches tall (71.1 cm) and finished in a durable Black E-Coat, the RRF16 provides a clean, corrosion-resistant mounting surface for standard 19-inch rack equipment that uses 10-32 threaded fasteners. If you're assembling or replacing rails in an open-frame or enclosed rack system, this is the component to specify.
Key Features
- 16 Rack Units (28 in / 71.1 cm): Accommodates up to 16U of rack-mount equipment per rail — appropriate for mid-size infrastructure builds such as a dedicated security head-end, an AV equipment bay, or a network closet where you need a half-populated open frame. Pair two RRF16 rails for a full vertical column.
- 10-32 Threaded Rail Type: The 10-32 thread standard is the dominant fastener spec across commercial rack equipment — NVRs, patch panels, power strips, and most AV processors ship with 10-32 rack screws. Threaded rails eliminate the need for cage nuts, saving installation time and reducing the chance of a stripped or missing fastener during a service call.
- Black E-Coat Finish: Electrophoretic coating provides uniform coverage on internal surfaces and edges — the areas most prone to corrosion on bare steel. In a rack environment where rails are handled repeatedly during installs and moves, E-Coat holds up better than spray paint and doesn't chip or flake onto equipment below.
- Compact Cross-Section (0.68 in wide × 1.53 in deep): At just 0.68 inches wide and 1.53 inches deep, these rails fit into standard rack channel slots without consuming extra horizontal clearance. The shallow depth matters in tight wall-mount or low-profile rack builds where every inch of front-to-back dimension counts.
- Single-Rail Packaging: Sold individually (Package Count: 1), giving you precise control over quantities when replacing a damaged rail, adding a second vertical position to an existing frame, or building a non-standard configuration. No need to buy pairs when you only need one.
Integration and Compatibility
The RRF16 is designed for use with Middle Atlantic rack systems and open-frame rack infrastructure, and it follows the EIA-310 standard rail geometry common across commercial AV and network infrastructure enclosures. The 10-32 thread pattern is compatible with the vast majority of rack-mount equipment used in IP surveillance, access control, and structured cabling applications. When building or repairing a rack for a network video recorder stack or a central security head-end, confirm your frame accepts Middle Atlantic replacement rails before ordering — rail slot dimensions and mounting hole pitch vary between manufacturers.
For integrators sourcing rack accessories and mounting hardware for commercial security installations, the RRF16 pairs with Middle Atlantic rack frames, blanking panels, and shelving within the same product family. The Black E-Coat finish matches standard Middle Atlantic rack aesthetics for a consistent appearance in finished equipment rooms.
Frequently Asked Questions
Q: What thread type does the RRF16 use?
A: The RRF16 uses 10-32 threaded holes — the standard thread for commercial rack equipment. No cage nuts are required; 10-32 rack screws thread directly into the rail.
Q: How tall is the RRF16 in rack units and inches?
A: The RRF16 measures 28 inches (71.1 cm) in height and accommodates 16 rack units (16U) of equipment.
Q: Is the RRF16 sold as a single rail or a pair?
A: The RRF16 is sold individually — one rail per package. Order two if you need a matching pair for a full vertical column.
Q: What is the finish on the RRF16?
A: The RRF16 has a Black E-Coat (electrophoretic) finish, which provides corrosion resistance and a uniform appearance on all surfaces including edges and internal corners.
Q: What are the cross-section dimensions of the RRF16?
A: The rail is 0.68 inches (1.7 cm) wide and 1.53 inches (3.9 cm) deep, fitting standard rack frame channel slots without requiring extra horizontal clearance.
When I'm speccing out a security head-end or an AV equipment bay for a commercial build, rails are the component integrators most often grab without thinking — and the RRF16 is worth a deliberate look. The 10-32 threaded format means you skip cage nut installation entirely, which matters on a job site where you're racking eight or ten devices in a session. At 16U across 28 inches, this rail gives you a solid mid-size column that fits half-height open frames or supplements a larger rack build.
Technical Highlights:
- 10-32 Threaded Rail: Direct thread engagement for rack screws — no cage nuts to install, lose, or strip. Standard across virtually all commercial NVRs, patch panels, and security appliances.
- Black E-Coat Finish: Electrophoretic coating covers edges and internal surfaces uniformly — the spots bare steel and spray finishes miss — reducing corrosion risk in mechanical rooms with humidity variation.
- 0.68 in × 1.53 in Cross-Section: The narrow profile fits standard rail channels without consuming front-to-back depth, which is a real constraint in shallow-depth wall-mount enclosures common in retail and small commercial security builds.
Deployment Considerations:
- Confirm your rack frame accepts Middle Atlantic replacement rails before ordering — mounting slot geometry and hole pitch are not universal across manufacturers, and a mismatched rail won't seat correctly.
- The RRF16 ships as a single rail (Package Count: 1). If you need a full vertical pair, order two units — don't assume a pair is included based on the product name referencing a rail set.
The RRF16 is the right call for security integrators adding capacity to an existing Middle Atlantic open-frame rack in a commercial equipment room, or building out a dedicated surveillance head-end where a half-height 16U column is the target form factor.
