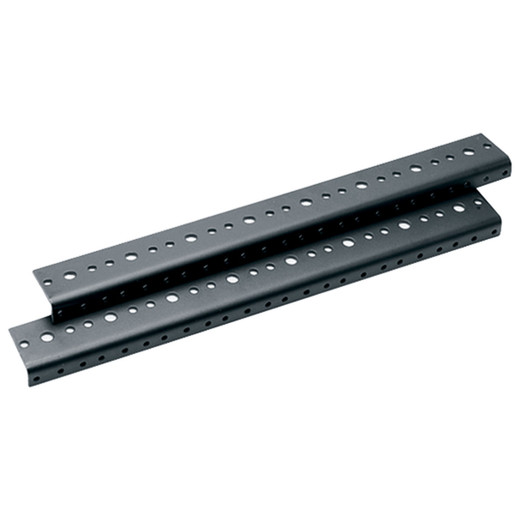

Middle Atlantic Pair 14SP (24.5INCH) Rack R - RRF14

Middle Atlantic RRF14 14U Replacement Rack Rail Pair

Overview

The Middle Atlantic RRF14 is a pair of 14-rack-unit replacement rails designed for open-frame and enclosed rack systems that use the industry-standard 10-32 threaded hole pattern. At 24.5 inches tall and finished in a durable Black E-Coat, the RRF14 is the go-to solution when you're rebuilding a damaged rack column, expanding an existing Middle Atlantic enclosure, or outfitting a custom rack build where off-the-shelf configurations don't fit the bill. If you're sourcing replacement hardware for a Middle Atlantic rack system, these rails are a direct match for compatible enclosures in that lineup.

Rack rails are often an afterthought until you're standing in a server room or security head-end with a stripped thread or a bent column — the RRF14 keeps a spare-parts strategy practical without overengineering the fix.

Key Features

• 14 RU / 24.5-Inch Rail Height: Fourteen rack units of usable panel space in a single rail run. At 24.5 inches, the RRF14 fits mid-depth open-frame racks common in AV head-ends, security equipment rooms, and network closets — enough vertical real estate for an NVR, a PoE switch, a patch panel, and a UPS in a single column pair.
• 10-32 Threaded Hole Pattern: The 10-32 thread is the dominant standard in North American rack hardware. Every screw, cage nut alternative, and rack-mount accessory in your existing parts bin will thread directly without adapters or inserts. If your current rack uses square-hole or M6 rails, this is not the right part — confirm your enclosure's hole standard before ordering.
• Black E-Coat Finish: Electrocoat (E-Coat) is an electrophoretic paint process that deposits finish uniformly across all surfaces including recessed threads and interior edges. The result is a corrosion-resistant coating that holds up in equipment rooms where condensation, HVAC cycling, or slightly elevated humidity is routine. It also means the rail blends cleanly with black-panel gear rather than showing raw steel edges.
• 0.68-Inch Rail Width: The narrow 0.68-inch profile keeps the rail footprint minimal inside the rack column, preserving cable-routing clearance on the interior sides. In dense builds where cable managers and PDUs compete for side space, a slim rail cross-section matters.
• 1.53-Inch Depth: At just over 1.5 inches deep, the RRF14 is a shallow-profile rail — suitable for open-frame builds and enclosures where the rail sits flush with or slightly inside the vertical support. Measure your enclosure's rail channel depth before install; deeper channels may require spacers or a different rail profile.
• Sold as a Pair: The RRF14 ships as a matched left/right pair, so you're replacing or building out a complete rack column in one order — no need to source individual left and right rails separately.
• 3.15 lbs Shipping Weight: Lightweight enough that these rails add negligible mass to a rack build. Relevant if you're calculating floor load for a fully-loaded 14U column or shipping a pre-built rack to a remote site.

Integration & Compatibility

The RRF14 is designed for Middle Atlantic rack enclosures and open-frame systems that accept 10-32 threaded rails at the 14U height. Before ordering, confirm three things: (1) your enclosure accepts field-replaceable rails in the RRF series, (2) your existing hardware uses 10-32 threading (not square-hole or M6), and (3) your vertical support spacing matches the 24.5-inch rail height. These rails are compatible with standard rack-mount equipment using 10-32 fasteners and will work with any panel, device, or accessory that follows EIA-310 rack unit spacing.

For security integration builds — NVRs, managed PoE network switches, access control panels, and patch equipment — the 10-32 pattern is nearly universal in commercial-grade enclosures. The RRF14 fits neatly into head-end rack builds where you're consolidating surveillance and network infrastructure in a single cabinet. If you're speccing a full rack build, pair these rails with appropriate rack screws and a rack accessory kit for a complete installation.

What's in the Box

• 2x Middle Atlantic RRF14 rack rails (left and right, 14 RU, 10-32 threaded)

Frequently Asked Questions

Q: What hole pattern does the RRF14 use — square, 10-32, or M6?

A: The RRF14 uses a 10-32 threaded hole pattern, which is the standard in most North American rack enclosures. It is not compatible with square-hole or M6 configurations without modification.

Q: Does the RRF14 ship as a single rail or a pair?

A: It ships as a pair — one left rail and one right rail — sufficient to outfit both sides of a single rack column.

Q: How many rack units does the RRF14 support?

A: The RRF14 provides 14 rack units (14 RU) of panel space, corresponding to a physical rail height of 24.5 inches (62.2 cm).

Q: What is the finish on the RRF14?

A: The rails have a Black E-Coat finish — an electrocoat process that provides uniform corrosion resistance across all surfaces including threaded holes and interior edges.

Q: Will the RRF14 work with any brand's rack-mount equipment?

A: Yes — any equipment using standard 10-32 rack screws and EIA-310 rack unit spacing will mount to the RRF14 rails. The rail itself is a Middle Atlantic component intended for compatible Middle Atlantic enclosures, but the 10-32 pattern is an industry-wide standard.

Q: What are the physical dimensions of each rail?

A: Each rail measures 24.5 inches tall (62.2 cm), 0.68 inches wide (1.7 cm), and 1.53 inches deep (3.9 cm). Shipping weight for the pair is 3.15 lbs (1.4 kg).

Jerry Tildsen

When I spec replacement rack hardware for security head-end builds, the RRF14 comes up consistently for mid-depth open-frame racks in the 14U range. The 10-32 threaded pattern means zero adapter overhead — every piece of commercial-grade rack-mount gear in a typical surveillance or access control installation drops straight in. At 24.5 inches of rail height with Black E-Coat finish, these rails hold up in equipment rooms that see real-world humidity and HVAC cycling, not just lab conditions.

Technical Highlights:

• 10-32 Threaded Pattern: Matches virtually every North American rack screw standard — no cage nuts, no inserts, no field improvisation required during install.
• Black E-Coat Finish: Electrocoat reaches all surfaces including thread recesses, providing corrosion resistance that raw or powder-coated rails can't match in humid equipment rooms.
• 0.68-Inch Rail Width: Slim enough to preserve side-channel clearance for cable management and PDU mounting in dense 14U builds where interior space is competed for.

Deployment Considerations:

• Confirm your enclosure accepts RRF-series field-replaceable rails before ordering — not all Middle Atlantic frames use the same rail attachment method, and the 1.53-inch depth needs to match your vertical support channel.
• The RRF14 is 10-32 threaded only — if your existing rack hardware uses square-hole EIA or M6 metric threads, this rail is the wrong part and won't accept standard 10-32 screws without re-tapping.

The RRF14 makes the most sense in two specific scenarios: replacing a damaged or stripped rail column in an existing Middle Atlantic enclosure mid-deployment, or building a custom 14U open-frame rack for a security head-end where you're sourcing components individually to hit a precise depth and hole-pattern spec.
