Panduit S100X650VAC P1™ Self-Laminating Vinyl Label Cassette
The Panduit S100X650VAC delivers field-proven wire identification for large-gauge conductor installations where durability and legibility matter. This P1™ cassette prints 50 self-laminating vinyl labels sized 1" × 6.5" with a 1.5" printable zone, purpose-built for 1/0 AWG through 250 MCM cable marking in electrical rooms, battery banks, UPS systems, and high-current distribution panels. The integrated cassette design combines label material and thermal-transfer ribbon in a single quick-change cartridge, eliminating ribbon threading and reducing reloading downtime during multi-circuit labeling jobs. Clear vinyl overlaminate protects against abrasion, moisture, and handling during pulls, while the white printable core ensures high-contrast text survives decades in service.
Key Features
- 1" × 6.5" self-laminating vinyl labels for 1/0 AWG–250 MCM conductors
- Integrated cassette combines label stock and thermal ribbon for tool-free changes
- Clear vinyl overlaminate protects printed text from abrasion and moisture
- 1.5" print height accommodates multi-line circuit IDs and panel schedules
- 50 labels per cassette for extended run efficiency on large electrical jobs
- RoHS compliant materials for specification-grade commercial installations

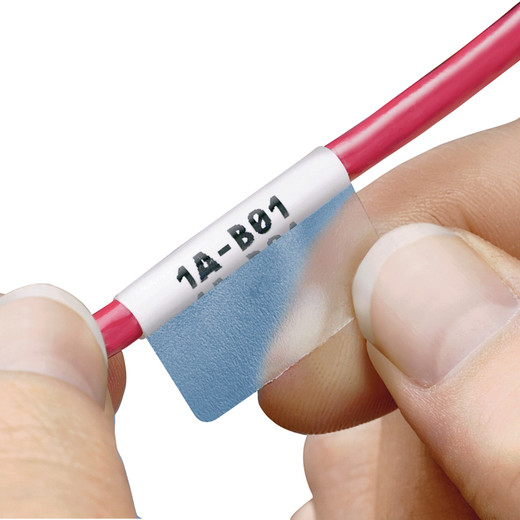

Large-gauge cable identification presents a labeling challenge that standard wire markers can't address — conductors from 1/0 AWG to 250 MCM require wide-format labels that wrap securely and resist the physical abuse of conduit pulls, termination torque, and years of thermal cycling in switchgear environments. The S100X650VAC cassette produces self-protecting labels where the clear vinyl tail overlaps the printed white base, creating a sealed laminate structure that locks text underneath a transparent shield. This construction prevents ink smudging during installation, resists solvent exposure from cleaning agents, and maintains legibility through temperature swings in battery rooms and outdoor enclosures. The 1" label width provides wrap coverage on large conductors while the 6.5" length allows full-circumference application with overlap, and the 1.5" printable height supports two-line legends for circuit numbers, panel designations, or voltage ratings. Panduit's P1 portable printer system uses thermal-transfer technology to bond text permanently into the vinyl base layer before lamination, delivering print permanence that outlasts adhesive-only labels in high-vibration or high-temperature applications.
The integrated cassette architecture solves a persistent field problem: ribbon jams and misalignment during mid-job reloads. Traditional label printers require separate ribbon spools that must be threaded through guides and tensioned correctly, a process prone to user error when working on ladders or in cramped electrical spaces. The S100X650VAC cassette arrives pre-loaded with label material and matched thermal ribbon wound together in precise registration, so reloading involves nothing more than dropping the cassette into the P1 printer and closing the door. The printer's firmware recognizes the cassette type and auto-configures print parameters for the S100X650VAC's vinyl substrate and 1.5" print height, eliminating setup menus and test prints. Each cassette yields 50 labels, a quantity scaled for panel schedules and feeder circuits in typical commercial electrical rooms — a single cassette can label an entire 42-circuit panelboard with identifiers for each hot leg and neutral, or mark all conductors in a parallel battery string. The quick-change design also reduces inventory complexity: purchasing label cassettes means buying label material and ribbon in a single SKU, with no need to cross-reference compatible ribbon part numbers or maintain separate stock for each consumable.
Vinyl label material offers distinct advantages over polyester or paper stocks in the electrical and datacom environments where S100X650VAC cassettes see deployment. Vinyl conforms to irregular cable surfaces and textured wire insulation without springback, creating full-contact adhesion that resists edge peeling on conductors subjected to repeated handling during adds, moves, and changes. The material's flexibility allows labels to bend around tight-radius wire bundles and expand slightly under thermal load without cracking, critical for conductors mounted near transformers, ballasts, or high-current busbars. Clear overlaminate construction provides a second benefit: the transparent tail section allows inspection of the underlying conductor jacket color and markings without removing the label, useful when verifying wire gauge stamps or manufacturer print during troubleshooting. RoHS compliance ensures the cassette meets material restriction requirements for projects governed by LEED, California Title 24, or federal procurement specifications that mandate low-halogen and reduced-toxicity components. For integrators managing battery installations, UPS retrofits, or generator paralleling switchgear, the S100X650VAC provides a durable, inspector-friendly labeling solution scaled specifically for the wire gauges and environmental demands of large-conductor electrical work.
