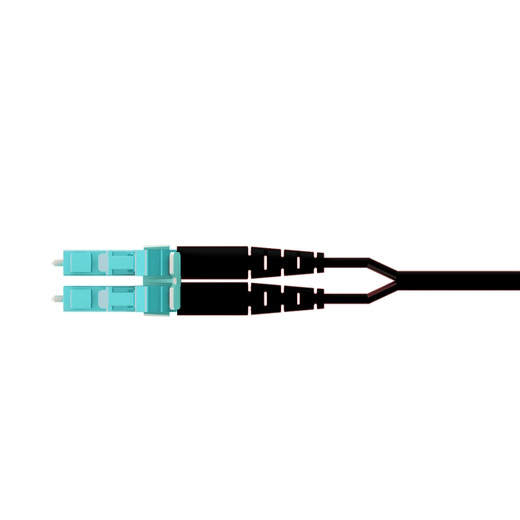

Panduit F92EPLHLHSHM001 OS2 LC Duplex 1M Plenum Fiber Optic Patch Cord
Overview
The Panduit F92EPLHLHSHM001 is a 1-meter (3.28 ft) OS1/OS2 singlemode fiber optic patch cord from the Opti-Core™ series, terminated with LC duplex connectors on both ends and rated for plenum (OFNP) environments. At 1 meter, this is a short-reach intra-rack or patch-panel-to-switch jumper — the kind of cable that lives inside a structured cabling cabinet, telecommunications room, or data center switch row where every inch of slack matters and fire code demands OFNP-rated media. The aqua jacket color follows the industry convention for singlemode OS1/OS2, making it immediately distinguishable from multimode assemblies during moves, adds, and changes — a small thing that pays off when you're tracing cables under pressure. The F92EPLHLHSHM001 is sold individually (Package Qty: 1) with carton quantities of 10 available for larger infrastructure deployments.
Key Features
- OS1/OS2 Singlemode Fiber: Singlemode glass supports transmission distances far beyond what multimode can handle — useful when this 1M jumper connects equipment that eventually routes through a singlemode backbone. Mixing fiber types at the patch panel kills the link; matching OS1/OS2 end-to-end keeps your signal path clean.
- LC Duplex on Both Ends: LC is the dominant small-form-factor connector in modern enterprise and data center environments, compatible with SFP/SFP+ transceivers, passive patch panels, and most current-generation optical switches. The duplex configuration handles both transmit and receive in a single pull — no hunting for a second ferrule.
- Plenum (OFNP) Flammability Rating: OFNP-rated jackets are required by the NEC in air-handling spaces (plenum ceilings, raised floors, open cable trays in HVAC return paths). Substituting a non-plenum cable in a plenum space is a code violation and a fire hazard. If your run passes through any air-handling zone, the F92EPLHLHSHM001 is the correct pick — no variance required.
- 1-Meter Length (3.28 ft): One meter is the right length for same-unit or adjacent-unit patch panel to switch connections within a standard 2-post or 4-post rack. Too much slack bunches up and blocks airflow; too little creates tension on the ferrules. At 1M, this cord fits cleanly in a 19
