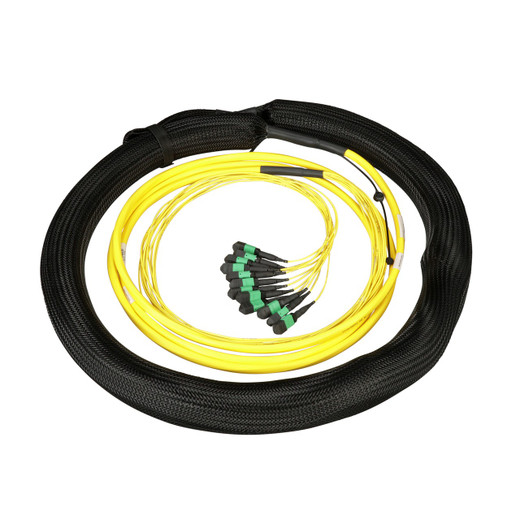

Panduit F8NNM5E5EAAM050 QuickNet 432-Fiber Singlemode OS2 MTP Trunk Cable
Ultra-high-density fiber backbone for datacenters, campuses, and enterprise networks demanding massive parallel bandwidth. The Panduit F8NNM5E5EAAM050 QuickNet trunk delivers 432 singlemode OS2 fibers in a single LSZH riser-rated assembly, factory-terminated with female MTP connectors on both ends. Method A polarity ensures seamless integration with industry-standard parallel optics infrastructure. At 50 meters, this trunk bridges building risers, MDA-to-HDA runs, or campus pathways where field termination of 432 individual fibers would consume weeks of labor and introduce unacceptable failure points. Yellow jacketing simplifies cable management in congested pathways. Pre-tested to TIA-568-C.3 and ISO/IEC 11801 standards, eliminating on-site certification time.
Key Features
- 432 singlemode OS2 fibers (9/125µm) in single trunk assembly
- Female MTP to Female MTP connectors, Method A polarity
- LSZH Riser rated, Euroclass Cca flame performance for plenum-alternative installations
- 50-meter length for backbone and campus distribution
- Factory-terminated and tested to TIA-568-C.3, ISO/IEC 11801, GR-409-CORE standards
- Yellow jacket for visual identification in cable trays and pathways
- QuickNet platform for modular, scalable fiber infrastructure
- Eliminates field splicing and termination labor on ultra-high-fiber-count runs
- Standard insertion loss performance for 40G/100G/400G parallel optics
- RoHS compliant, ICEA S-83-596 tested
The F8NNM5E5EAAM050 uses OS2 singlemode fiber (9µm core, 125µm cladding) optimized for long-reach datacenter interconnects and campus backbone applications where multimode link budgets fall short. Each of the 432 fibers meets ISO/IEC 11801 Category OS2 specifications, supporting 10G links beyond 10km and 100G coherent optics to 40km. The trunk is built around 36×12-fiber MTP connectors (female pin configuration), aligned in Method A polarity—the industry-standard orientation for parallel optics where transmit lanes on one end map directly to receive lanes on the opposite end. This polarity scheme is critical for 40GBASE-SR4, 100GBASE-SR4, and 400GBASE-SR8 deployments; incorrect polarity on even one MTP connector will drop an entire link. Factory termination guarantees all 432 fibers are correctly aligned, cleaved, and epoxied before leaving Panduit's controlled environment, eliminating the most common source of insertion loss variation and back-reflection in field-terminated trunks.
The LSZH (Low Smoke Zero Halogen) outer jacket meets Euroclass Cca flame performance and CMR (Communications Riser) fire rating per ICEA S-83-596. This makes the trunk compliant for vertical riser pathways in commercial buildings without requiring plenum-rated (CMP) cable, reducing cost while maintaining fire-code adherence. The yellow outer jacket uses a durable polymer compound that resists abrasion during pulls through J-hooks, cable trays, and innerduct, while providing instant visual differentiation from multimode (typically aqua/orange) or other singlemode trunks in shared pathways. At 50 meters (164 feet), the assembly spans typical building riser distances—ground floor IDF to third-floor MDF, or horizontal distribution between adjacent buildings in campus environments—without requiring mid-span splice enclosures that introduce additional insertion loss and failure points. Panduit ships the trunk with a pull-eye for mechanical installation assistance, critical when routing a trunk of this diameter through congested pathways or around tight-radius bends.
Datacenter operators deploying 400G spine-leaf fabrics or migrating to coherent 400G/800G long-reach interconnects rely on trunks like the F8NNM5E5EAAM050 to deliver the raw fiber density needed without consuming scarce cable tray capacity. A single 432-fiber trunk replaces 36 standard 12-fiber trunks, collapsing a rat's nest of jacket material and bend-radius management into a single pull. Network architects planning for 40G/100G server uplinks in hyperconverged or AI/ML clusters use Method A MTP trunks as permanent structured cabling; the trunk itself becomes passive infrastructure that outlasts multiple generations of active switching equipment. Campus IT teams bridging fiber between buildings or extending dark fiber to remote IDFs avoid the pitfalls of field fusion splicing—moisture contamination, cleave angle errors, and the need for OTDR certification—by deploying pre-terminated trunks that arrive tested and ready for immediate breakout into patch panels or cassettes.
The female MTP connectors mate with standard male MTP patch cords or cassette modules, maintaining the push-pull latching mechanism that prevents accidental disconnects in high-vibration or high-traffic environments. Installation teams run the trunk through innerduct, conduit, or open cable tray using the integrated pull-eye, then land both ends in Panduit QuickNet fiber enclosures or third-party MTP cassette panels. Because the trunk is OS2 singlemode, it future-proofs bandwidth requirements; today's 10G or 40G links can migrate to 100G or 400G without re-cabling, simply by upgrading transceivers and patch cords. The 50-meter length keeps insertion loss below 1.5dB (typical 0.3-0.5dB for a trunk of this length), preserving link budget for additional patch cord hops or longer campus runs. For projects requiring Euroclass Cca compliance—common in European installations or U.S. projects adopting international fire codes—the LSZH jacket meets the requirement without forcing a step up to plenum-rated cable, which often carries lead times and cost premiums in high-fiber-count configurations.
The F8NNM5E5EAAM050 is UL Listed (file reference implicit in TIA-568-C.1 compliance) and Telcordia GR-409-CORE qualified for central office and outside plant applications, meaning it survives temperature cycling, mechanical stress, and humidity exposure beyond what typical indoor riser cable endures. Panduit's QuickNet platform ensures interoperability with industry-standard MTP/MPO components—cassettes, breakout modules, patch cords—eliminating vendor lock-in while maintaining the quality control of a factory-terminated assembly. For integrators managing projects where downtime for fiber testing or rework is measured in thousands of dollars per hour, this trunk removes the uncertainty: every fiber is tested, every connector is inspected, and the entire assembly is serialized for traceability. RoHS compliance clears environmental regulations in public-sector and international projects where material declarations are procurement gatekeepers. When the alternative is field-terminating 432 individual fibers—each requiring fusion splicing or mechanical termination, cleaning, inspection, and OTDR certification—the F8NNM5E5EAAM050 transforms a multi-week installation into a single-day pull and land.
