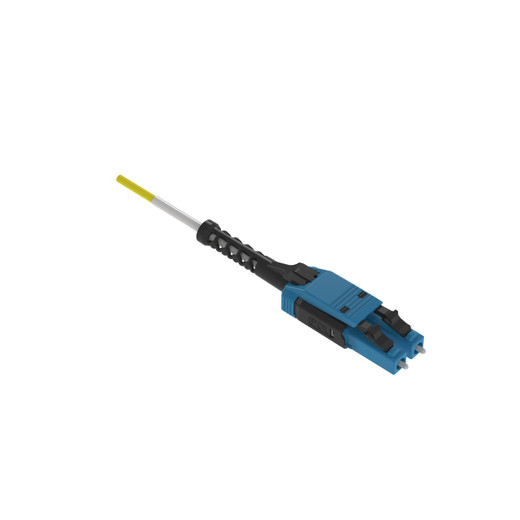

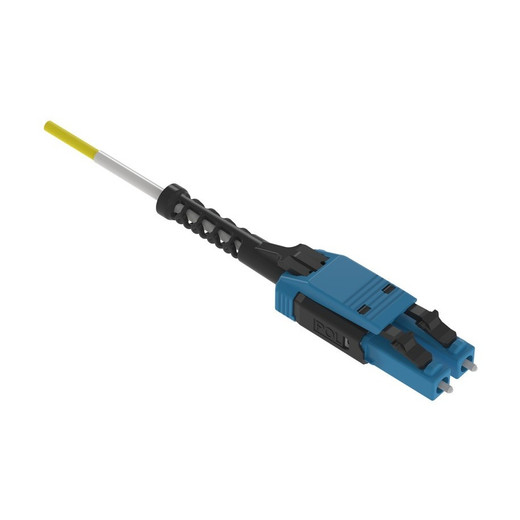

Panduit F92RPU1U1ONM001 Opti-Core OS2 Single-Mode Fiber Patch Cord

The Panduit F92RPU1U1ONM001 Opti-Core patch cord delivers precision-engineered OS2 single-mode fiber connectivity in a compact 1-meter length, purpose-built for high-density data center and telecommunications room deployments. The duplex LC uniboot connector design cuts panel footprint in half compared to traditional duplex LC patch cords while maintaining full polarity-reversal capability via the integrated pull-boot mechanism—critical for rapid A/B polarity swaps during cassette interconnects or switch-to-switch links. Factory-terminated with optimized insertion loss performance and plenum-rated OFNP jacketing, this patch cord meets the demanding requirements of 10G/40G/100G fiber infrastructure where every tenth of a dB matters and code compliance is non-negotiable.

Key Features

• OS2 single-mode fiber (9/125 µm) for extended reach up to 10 km at 10 Gbps, 40 km+ at 1 Gbps
• Duplex LC uniboot connector—50% smaller footprint than standard duplex LC, tool-free polarity reversal via pull-boot
• Optimized insertion loss performance through precision factory polishing and alignment
• Plenum-rated OFNP jacket (UL 910 / NFPA 262) for installation in air-handling spaces and above drop ceilings
• Yellow jacket for clear OS2 single-mode identification per TIA-598-D color standards
• 1-meter (3.2 ft) length—ideal for rack-to-rack, cassette-to-cassette, or switch-to-patch-panel interconnects in equipment distribution areas
• Exceeds TIA-568-C.3, ISO/IEC 11801, FOCIS-3, and FOCIS-10 performance standards
• RoHS compliant, ships in cartons of 10 for project-scale deployments

The uniboot LC connector architecture addresses two persistent pain points in high-density fiber deployments: panel congestion and polarity management. Traditional duplex LC patch cords occupy two full connector positions and require pre-planning of A-to-B vs. B-to-A polarity at the factory or in the field via physical cable swaps. Panduit's uniboot design consolidates both fibers into a single boot assembly, instantly doubling the usable port density on 1U fiber panels and blade-server modules. Polarity reversal is accomplished in under three seconds without tools—pull the green tab, slide the connector module 180°, and snap it back into the boot. This eliminates the need to stock both straight-through and crossover variants or to perform connector re-terminations during method-B to method-C cassette migrations. The optimized insertion loss spec (typically ≤0.25 dB) ensures margin headroom on long 10GBASE-LR links or multi-span 40G/100G SR4 trunks where cumulative connector loss eats into the 2.6 dB OM4 budget.

At 1 meter, the F92RPU1U1ONM001 is sized for structured cabling interconnects and short equipment jumpers—main distribution area (MDA) cassette-to-trunk connections, horizontal distribution area (HDA) panel-to-switch links, and top-of-rack switch-to-spine switch patching in leaf-spine fabrics. The plenum-rated OFNP jacket qualifies this cable for installation in the 2–4 foot air-handling cavity above drop ceilings in commercial office build-outs and above raised floors in ASHRAE-compliant data centers, satisfying NEC Article 770 and local AHJ requirements without the need for conduit or enclosed raceways. The yellow jacket provides instant visual differentiation from OM3/OM4 multimode (aqua) and OM5 wideband multimode (lime green), reducing mis-patch risk during MACs and emergency troubleshooting. Factory termination to TIA-604-3 endface geometry standards (FOCIS-3 for LC physical contact) ensures repeatable <0.3 dB insertion loss and >45 dB return loss across the entire production run—performance you cannot reliably achieve with field-terminated connectors or budget offshore assemblies that skip endface inspection.

Panduit Opti-Core patch cords are built on the same manufacturing line as the company's pre-terminated fiber trunks and MTP cassettes, with automated polishing cells, interferometric endface inspection, and per-connector IL/RL test data logged to batch traceability records. This is the difference between a $12 generic yellow single-mode jumper and a $68 MSRP engineered assembly: consistent sub-0.25 dB insertion loss, mechanical durability through 500+ mate cycles per IEC 61754-20, and a product line backed by Panduit's global technical support and fiber system warranty coverage. For integrators designing 25G/100G data center fabrics, 10G LAN backbones, or secure-facility fiber-to-the-desk (FTTD) deployments where performance and compliance documentation are contract deliverables, the F92RPU1U1ONM001 is the short-reach single-mode interconnect that eliminates re-work and change orders.
