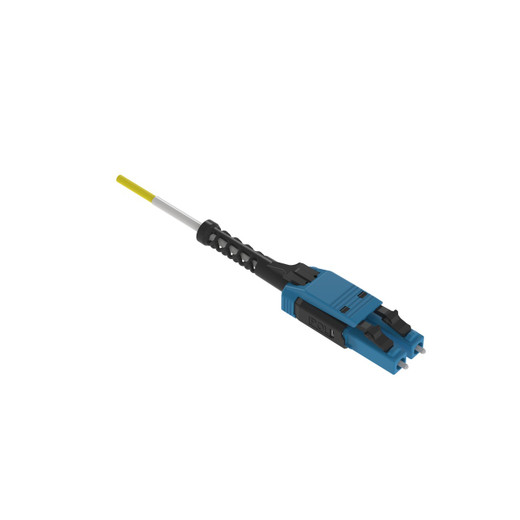

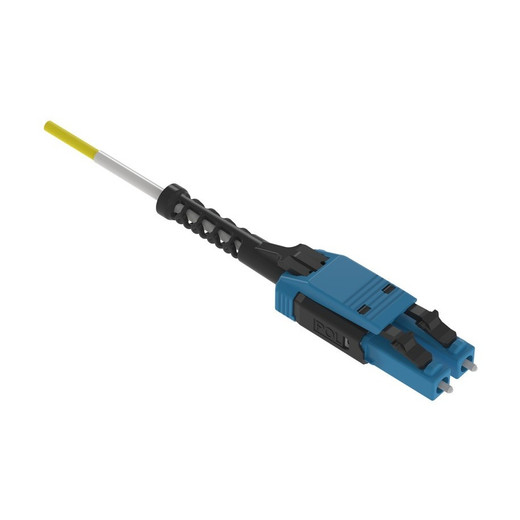

Panduit F92RLU1U1ONM025 25m OS2 LC Uniboot Patch Cord

Panduit F92RLU1U1ONM025 OS2 Single-Mode LC Uniboot Patch Cord

Field termination failures and polarity errors cost integrators hours in datacenter and telecom deployments. This Panduit Opti-Core™ F92RLU1U1ONM025 factory-terminated patch cord eliminates both risks with precision-polished LC Uniboot connectors, OS2 9/125μm single-mode fiber, and optimized insertion loss performance. The 25-meter duplex design addresses cross-connect runs in equipment distribution areas, entrance facilities, and horizontal fiber installations where LSZH jacket compliance and reliable low-loss connectivity are non-negotiable. Yellow jacketing provides instant visual identification of single-mode infrastructure, while the pull-boot Uniboot form factor simplifies moves and adds in high-density patch fields.

Key Features

• Factory-terminated LC Uniboot connectors with pull-boot strain relief for dense panel work
• OS2 9/125μm single-mode fiber supports 10GBASE-LR/ER, 40G/100G SR4, and CWDM/DWDM applications
• LSZH (Low Smoke Zero Halogen) jacket meets IEC 60332-1 and IEC 60754-1/2 for plenum and datacenter installations
• 25-meter (82-foot) length handles EDA-to-HDA, cross-connect, and entrance facility runs
• Optimized insertion loss geometry delivers typical performance below 0.3 dB per connector pair
• Yellow duplex 2.0mm cable for single-mode visual identification per TIA-598-C color coding
• Duplex configuration in compact Uniboot housing reduces patch panel footprint by 50% vs. traditional LC duplex
• Exceeds TIA-568-C.3, ISO/IEC 11801, and FOCIS-3/10 connector geometry standards

The F92RLU1U1ONM025 uses precision ceramic ferrules with 1.25mm LC geometry, factory-polished to FOCIS-10 endface standards. Each connector undergoes automated insertion loss and return loss testing before shipment, ensuring consistent performance across production runs—critical when deploying hundreds of patch cords in enterprise fiber backbones or colocation cross-connects. The aramid yarn strength member and 900μm tight-buffer fiber construction resist tensile stress during installation, while the 2.0mm duplex jacket maintains a 15mm bend radius under load, supporting tight routing through vertical cable managers and overhead ladder rack. OS2 fiber specification guarantees attenuation below 0.4 dB/km at both 1310nm and 1550nm wavelengths, making this cord suitable for 10GBASE-LR links up to 10 km, 40GBASE-LR4 to 10 km, and 100GBASE-LR4 to 10 km without inline amplification.

Integrators deploying structured cabling in datacenters, telecom central offices, and enterprise MDFs face dual challenges: maintaining polarity through complex cross-connects and meeting increasingly strict flammability codes. The Uniboot LC form factor addresses the first by consolidating transmit and receive fibers in a single keyed connector body—polarity is mechanically enforced, eliminating the transposed-fiber troubleshooting common with side-by-side duplex LC connectors. The LSZH jacket addresses the second: when exposed to flame, this Low Smoke Zero Halogen compound produces minimal smoke opacity (light transmittance >60% per IEC 61034) and zero corrosive halogen gases, protecting sensitive electronics and ensuring safe egress in occupied spaces. This makes the F92RLU1U1ONM025 compliant for installation in air-handling plenums, under raised floors, and in enclosed equipment rooms where PVC-jacketed cables are prohibited by NFPA 70 and local fire codes.

The pull-boot design provides strain relief at the connector-to-cable transition point and offers a positive grip surface for extraction from crowded patch panels—critical in 48-port 1U LC cassette deployments where connector spacing is 7.25mm center-to-center. The 25-meter length is calibrated for typical horizontal distribution area to equipment distribution area runs in structured cabling (up to 90 meters of permanent link budget allows for 25-meter patch cords at both ends), cross-connects between adjacent equipment rows in datacenter hot-aisle/cold-aisle layouts, and entrance facility demarc extensions where carrier hand-off terminates in a separate room from core switching infrastructure. Panduit factory testing includes insertion loss verification at 1310nm and 1550nm, return loss measurement, and endface geometry inspection per IEC 61300-3-35, with test results stored in production batch records for traceability during post-installation acceptance testing.

Compliant with TIA-568-C.3 (Optical Fiber Cabling Components Standard), ISO/IEC 11801 (Generic Cabling for Customer Premises), TIA-604-3 (FOCIS-3 SC connector), TIA-604-10 (FOCIS-10 LC connector), and RoHS directive 2002/95/EC. Panduit Opti-Core fiber systems are factory-terminated and tested to eliminate the uncertainty of field polish, deliver insertion loss consistency across large deployments, and provide mechanical durability through pull-boot strain relief and bend-insensitive fiber design. This cord is the specified component for integrators building out 10/40/100G datacenter fabrics, long-haul telecom interconnects, and enterprise single-mode backbones where every tenth of a dB matters in link budget and every percentage point of uptime depends on connector reliability under thermal cycling and vibration.
