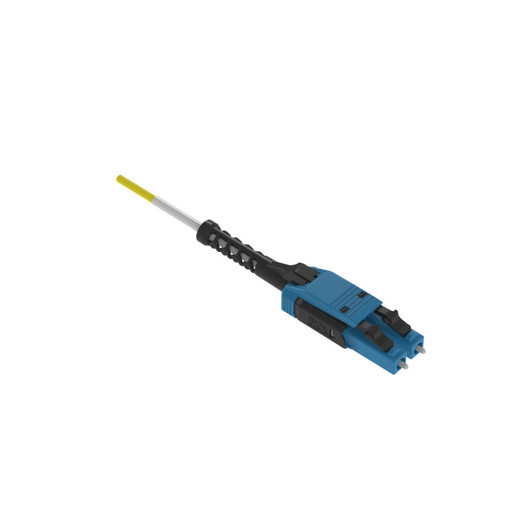

Panduit F92RLU1U1ONM020 20m LC Duplex OS2 Fiber Jumper

Panduit F92RLU1U1ONM020 Opti-Core 20m LC Duplex Singlemode Patch Cord

The Panduit F92RLU1U1ONM020 delivers 20 meters of OS2-rated single-mode fiber connectivity with optimized insertion loss for telecom rooms, data centers, and enterprise backbone links. Its LC Uniboot duplex connectors with integrated pull-boots simplify cable management in high-density rack environments, while the 2.0 mm LSZH jacket meets European fire-safety mandates for enclosed spaces. Designed for 9/125 μm fiber, this yellow-jacketed jumper supports 10G/40G/100G transmission over campus and building backbones where attenuation budgets and flame ratings are non-negotiable.

Key Features

• OS2 single-mode fiber rated for ≤0.40 dB/km attenuation at 1310 nm and ≤0.30 dB/km at 1550 nm
• LC Uniboot duplex connectors with pull-boot strain relief for tool-free polarity reversal and clean cable routing
• Optimized insertion loss ≤0.20 dB typical per mating pair, reducing link-budget margin erosion on long-haul runs
• LSZH (low smoke zero halogen) jacket compliant with IEC 60332-1 and IEC 60754 for confined-space installations
• Yellow jacket color follows TIA-598-C OS2 single-mode identification standard
• 9/125 μm fiber core supports 10GBASE-LR, 40GBASE-LR4, 100GBASE-LR4, and coherent optics up to 400G
• 2.0 mm cable diameter enables 35% higher port density vs. 3.0 mm jumpers in 1U fiber panels
• Factory-terminated and tested to TIA-568-C.3 and ISO/IEC 11801 performance tiers

The F92RLU1U1ONM020's Uniboot connector architecture consolidates two fibers into a single push-pull boot, cutting patch-panel congestion in half compared to traditional duplex LC designs. The integrated pull-boot allows you to reverse polarity on-site without re-termination—critical when cross-connecting Method B trunk cables to Method A equipment cords or correcting transmit/receive mismatches during MACs. Each connector is factory-polished to sub-50 nm surface finish and inspected per IEC 61300-3-35 end-face geometry standards, ensuring <0.20 dB insertion loss out of the box. The 2.0 mm outer diameter keeps bend radius within ANSI/TIA-568.3-D minimums (30 mm under no load) while maintaining <0.1 dB additional loss through cable trays and vertical risers.

Deploy this 20-meter jumper for telecom room horizontal-to-backbone cross-connects, inter-rack links in co-location suites, or building entrance facility-to-MDF uplinks where OS2 fiber is mandated for future 100G/400G migration. The LSZH jacket is required in European Union installations per CPR (Construction Products Regulation) Class Cca and suits any U.S. plenum-equivalent application where smoke toxicity matters—airports, hospitals, K-12 schools, government facilities. Yellow color-coding differentiates single-mode infrastructure from OM3/OM4 multimode at a glance, reducing cross-patching errors during after-hours maintenance windows. The 20 m length bridges typical floor-to-floor vertical riser spans or cross-aisle data center hot-aisle/cold-aisle runs without requiring fusion splicing or mid-span connectors.

Panduit's Opti-Core line is factory-tested to TIA-568-C.3 Tier 1 IL/RL limits and ships with serialized test reports traceable to NIST-certified reference-grade OTDRs. RoHS-compliant materials and halogen-free flame retardants meet European REACH and North American building codes, ensuring the cord won't void system warranties or fail fire-marshal inspections. When your link budget allows only 1.5 dB total loss over a 2 km campus backbone—and your AHJ requires LSZH—this jumper delivers the headroom and compliance you need without field termination labor or post-install rework.
