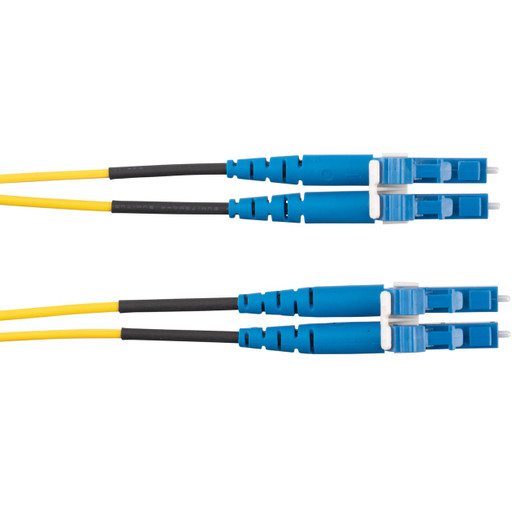

Panduit F92EPLNLNSNM020 Opti-Core OS2 Single-Mode Fiber Patch Cord

The Panduit F92EPLNLNSNM020 is a 20-meter OS2 single-mode fiber optic patch cord with LC duplex connectors on both ends, built for long-haul datacenter, telecom, and high-bandwidth IP surveillance backhaul applications. OS2 fiber delivers 9/125μm core/cladding geometry optimized for low attenuation (≤0.4 dB/km at 1310nm, ≤0.3 dB/km at 1550nm) and supports transmission distances up to 10km at 10Gbps or 40km at 1Gbps without amplification. The yellow jacket follows TIA-598-C color coding for single-mode fiber, preventing cross-connects with multimode infrastructure during high-density patching. Plenum-rated (OFNP) construction meets NEC Article 770 for installation in air-handling spaces without additional conduit, critical for overhead cable tray runs in commercial buildings and datacenter hot/cold aisles.

Key Features

OS2 single-mode fiber (9/125μm) — low loss for distances up to 10km+ at 10GbE

LC duplex connectors both ends — high-density SFF interface, standard for enterprise switches and media converters

20-meter (65.6 ft) length — spans datacenter rows, telecom closet to IDF, or building riser to floor switch

Plenum-rated OFNP jacket — NEC Article 770 compliant for air-handling spaces, no conduit required

Yellow jacket — TIA-598-C single-mode color standard, prevents multimode/single-mode cross-connects

Opti-Core construction — Panduit's fiber platform with field-proven insertion loss ≤0.3 dB typical

LC duplex connectors use a 1.25mm ferrule (vs. 2.5mm SC) and latch mechanism for tool-free insertion and removal in tight spaces. A duplex LC port occupies the same panel space as a single SC port, doubling fiber density in patch panels and switch faceplates — essential when building out 10GbE or 25GbE IP camera networks with limited rack space. The connectors ship with protective dust caps; remove only at termination to prevent endface contamination that degrades insertion loss. OS2 fiber's 9μm core requires clean connections (< 0.25 dB insertion loss) to maintain link budget; inspect with a fiber microscope and clean with lint-free swabs and isopropyl alcohol before mating.

The 20-meter length suits mid-range datacenter and building deployments: datacenter aisle to end-of-row aggregation switch (≤15m typical), telecom room to intermediate distribution frame on the same floor (≤20m), or vertical riser from basement MDF to second-floor IDF in low-rise commercial buildings. OS2 fiber's low attenuation means even a 20m patch cord contributes <0.01 dB loss to the link budget, leaving headroom for IP camera SFP+ modules, media converters, or long building-to-building links. Pair with Panduit or third-party LC-terminated cassettes (MPO-to-LC breakout) for structured cabling systems, or use as direct switch-to-switch interconnects in spine-leaf IP surveillance networks.

Plenum rating (OFNP per NEC 770.179) certifies the jacket's flame spread and smoke generation meet Steiner Tunnel test UL 910 limits (flame spread ≤5 ft, peak optical density ≤0.5). This allows installation in return-air plenums — the space above drop ceilings or below raised floors where HVAC return air flows — without metal conduit or raceway. Non-plenum (OFNR riser) cable in these spaces violates NEC 770.113 and fails inspection in jurisdictions enforcing the 2020+ code cycle. Installers running fiber from a ceiling-mounted IP camera to a wall-mount PoE switch or from rack to rack in a datacenter with underfloor air must spec plenum-rated cable; this Panduit cord satisfies that requirement and ships with UL listing documentation for AHJ review.

OS2 single-mode fiber is the long-term choice for IP surveillance backhaul exceeding 300 meters (OM3/OM4 multimode limits at 10GbE) or any install expecting a future 25GbE/40GbE upgrade. Security integrators use single-mode fiber for building-to-building camera links (up to 10km with appropriate SFPs), campus backbone interconnects between video management servers and remote switches, or point-to-point links to perimeter PTZ cameras on long fencelines. The 20-meter length bridges mid-range gaps without the cost and slack management headaches of 100-meter+ spools, and the LC duplex form factor integrates with off-the-shelf Axis, Hanwha, and Hikvision fiber SFP modules (sold separately) for seamless IP camera connectivity.
