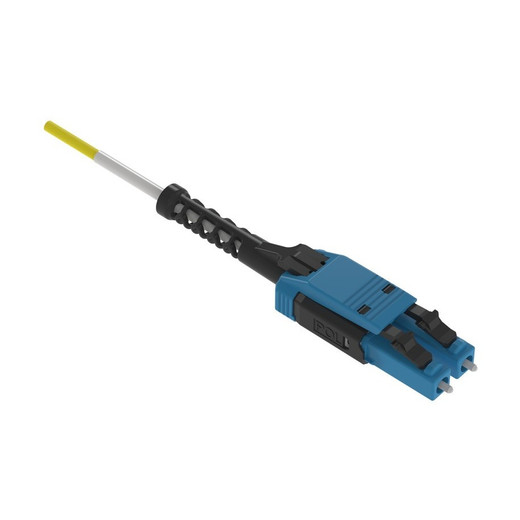

Panduit F92RLU1U1ONM014 Opti-Core OS2 Single-Mode Fiber Patch Cord

The Panduit F92RLU1U1ONM014 is a 14-meter OS2 single-mode fiber patch cord built for high-density datacenter and enterprise backbone applications. It uses duplex LC Uniboot connectors on both ends, a 2.0mm LSZH cable jacket, and is factory-optimized for low insertion loss. The Uniboot form factor cuts port footprint in half compared to traditional LC duplex connectors while enabling tool-free A-B polarity reversal in the field. Yellow jacketing follows TIA-598-C color coding for 9/125µm single-mode fiber, critical for preventing cross-connects in mixed fiber plants. This is a commercial-grade Opti-Core assembly for installations requiring compliant single-mode connectivity over distances beyond OM3/OM4 multimode reach.

Key Features

• LC Uniboot Duplex Connectors — Single-body duplex housing reduces switch port density requirements by 50% and enables field polarity reversal without re-termination
• OS2 Single-Mode Fiber — 9/125µm core supports 10G to 100G transmission over distances up to 40km (10GBASE-LR) or 10km (100GBASE-LR4) with appropriate optics
• Optimized Insertion Loss — Factory-tested to ensure IL ≤0.3dB typical, preserving link budget headroom for multi-span backbone topologies
• LSZH Jacket (IEC 60332-1, IEC 61034) — Low Smoke Zero Halogen flame-retardant jacket meets plenum-alternative requirements for enclosed cable pathways and international datacenter builds
• 14-Meter Length (46 ft) — Ideal for datacenter row-to-row links, cross-connect field jumpers, or MDF-to-adjacent-IDF spans without excess slack
• 2.0mm Round Cable — Smaller diameter than standard 3.0mm assemblies; improves bend radius and cable management in high-density patch fields
• TIA/ISO Compliant — Meets or exceeds TIA-568-C.3, ISO/IEC 11801, TIA-604-3 (FOCIS-3), and TIA-604-10 (FOCIS-10) performance specifications

Single-mode fiber is the required medium for any link exceeding 550 meters (OM4 limit at 10G) or when provisioning for future 40G/100G upgrades over existing infrastructure. OS2 specifies a maximum attenuation of 0.4dB/km at 1550nm and is backward-compatible with OS1 (indoor-rated) fiber—both use the same 9/125µm core geometry but OS2 mandates tighter manufacturing tolerances for lower intrinsic loss. This patch cord is built to OS2 specs, making it suitable for long-haul campus backbones, storage-area-network links, or inter-building connections over both indoor and outdoor-rated cable plants. The Uniboot LC connector consolidates both TX and RX fibers into a single pluggable body, cutting the physical footprint on SFP/SFP+/QSFP faceplates in half. In a 48-port switch, that translates to full utilization of all ports without the connector-body interference common with traditional LC duplex clips. The integrated pull-tab enables polarity reversal (swap A↔B legs) without tools or re-termination, a critical feature when connecting dissimilar patch-panel keying or correcting transmit/receive mismatches in the field.

LSZH jacketing is mandated by many international building codes (IEC, CENELEC) and increasingly required in U.S. datacenters under NFPA guidelines for spaces lacking dedicated HVAC isolation. In a fire event, PVC jackets emit hydrochloric acid and dense black smoke; LSZH compounds produce minimal smoke opacity and no corrosive halogens, protecting both personnel egress and sensitive electronic equipment. The 2.0mm cable diameter reduces bundle cross-section by approximately 56% versus 3.0mm assemblies, improving airflow in overhead cable trays and enabling tighter bend radii around vertical cable managers. Panduit's Opti-Core line factory-terminates connectors using automated polishing and inspection, ensuring consistent insertion loss and return loss across production runs—critical when maintaining link budgets in 40G/100G BiDi or CWDM applications where every 0.1dB matters.

This 14-meter assembly is a common length for datacenter row-to-row connections (typically 12-18m span between equipment distribution area racks), cross-connect field jumpers in telco environments, or MDF-to-adjacent-IDF links in mid-rise commercial buildings. It eliminates the coiling and service-loop clutter associated with over-length 20m or 30m patch cords while providing enough slack for proper strain relief and future re-routing. Yellow jacketing is TIA-598-C standard for single-mode fiber; using color-consistent patch cords across the infrastructure prevents accidental multimode-to-single-mode cross-connects that result in severe optical loss or complete link failure. The duplex LC interface is the dominant connector type for 1G/10G/25G SFP and QSFP28 transceivers, ensuring compatibility with Cisco, Arista, Juniper, Dell, HPE, and Ubiquiti switch platforms. Meets TIA-568-C.3 and ISO/IEC 11801 structured cabling standards, TIA-604-3 (FOCIS-3) and TIA-604-10 (FOCIS-10) connector endface geometry specs, and is RoHS 2002/95/EC compliant for integration into EU or California-regulated installations.
