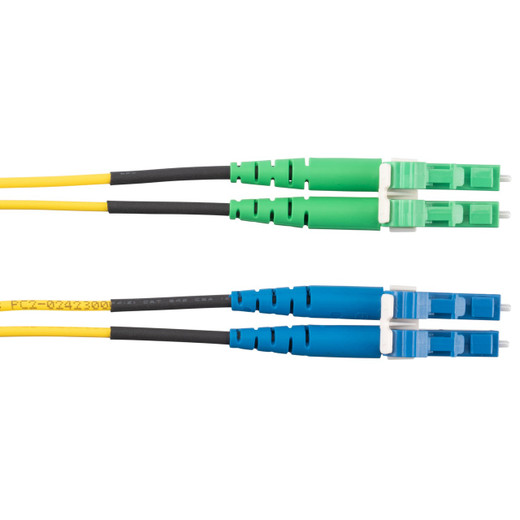

Panduit F92ELB1LNSNM010 Opti-Core™ OS2 Single-Mode Fiber Patch Cord
Datacenter and telecom backbone links demand zero back-reflection and reliable single-mode performance over distances exceeding 10 kilometers. The Panduit F92ELB1LNSNM010 Opti-Core™ patch cord delivers both in a 10-meter duplex cable engineered for high-density rack environments. This OS2-rated jumper pairs an LC/APC connector on one end—eliminating Fresnel reflection at the polished interface—with a standard LC connector on the other, creating the hybrid termination required when connecting APC infrastructure to non-APC active equipment. The 1.6mm reduced-diameter LSZH jacket meets flame and smoke requirements for plenum and riser spaces while maximizing airflow in congested cable trays.
Key Features
- OS2 single-mode fiber supports 10G/40G/100G transmission over 10+ km with <0.4 dB/km attenuation at 1310 nm and 1550 nm wavelengths
- LC/APC green connector on one end prevents back-reflection below -60 dB, critical for high-bit-rate and analog video transport over fiber
- Standard LC connector on opposite end interfaces with SFP/SFP+ transceivers and non-APC patch panels without adapter loss
- 1.6mm reduced-diameter cable jacket increases pathway fill capacity by 36% compared to 2.0mm legacy cordage
- LSZH (Low Smoke Zero Halogen) construction meets IEC 60332-1 and IEC 61034 for installation in air-handling spaces without conduit
- Duplex 2-fiber design provides full-duplex Tx/Rx in a single pull, reducing installation time and pathway congestion
- Yellow jacket provides instant visual identification of single-mode cabling per TIA-598-C color-coding standard
- 10-meter length handles rack-to-rack connections within the same row or cross-aisle links in modular datacenter layouts
- Factory-terminated and tested to <0.3 dB insertion loss per connector, eliminating field-polish variability
- Opti-Core™ brand lineage ensures compatibility with Panduit cassettes, panels, and enclosures across campus and datacenter fiber plants
The F92ELB1LNSNM010 addresses a recurring deployment challenge: connecting APC-polished structured cabling—installed to prevent reflection-induced bit errors and signal degradation—to active equipment that ships with standard UPC or non-APC interfaces. Angled Physical Contact (APC) connectors use an 8-degree ferrule polish to direct reflected light into the cladding rather than back into the core, achieving return loss below -60 dB. This matters for coherent 100G optics, dense wavelength-division multiplexing (DWDM), and analog RF-over-fiber links where even -40 dB return loss destabilizes transmission. However, most SFP+ and QSFP28 transceivers, media converters, and legacy switches terminate in standard LC (UPC polish, -50 dB typical return loss). Mating two APC connectors delivers optimal performance; mating APC to UPC causes 0.5–1.0 dB insertion loss and potential ferrule damage. The hybrid LC/APC-to-LC design of this patch cord solves the problem: install the APC end at your structured cabling cross-connect or fiber panel, and terminate the standard LC end directly into transceiver ports. You preserve the reflection control of your APC backbone while maintaining compatibility with commodity optics.
OS2 single-mode fiber is the International Electrotechnical Commission's designation for cable supporting 10 Gb/s and higher data rates over extended distances—10 km for 10GBASE-LR, 40 km for 40GBASE-ER4, and 10 km for 100GBASE-LR4 per IEEE 802.3 standards. The 9/125 µm core-to-cladding geometry confines light propagation to a single transverse mode, eliminating modal dispersion and extending usable bandwidth beyond 10 THz·km at 1550 nm. This headroom supports future migration to 400G and 800G optics without re-cabling horizontal or backbone runs. The 1.6mm reduced-diameter jacket construction uses a tight-buffered design where each 250 µm coated fiber sits within a thermoplastic buffer, then both fibers share a single outer sheath. Compared to 2.0mm or 3.0mm zipcord designs, the 1.6mm profile increases conduit fill capacity under NEC Article 770 calculations, reduces bend radius to 10× cable diameter (16 mm minimum dynamic bend), and improves airflow around cable bundles in hot-aisle containment systems. Despite the smaller cross-section, tensile strength remains above 100 N and crush resistance exceeds 500 N/100 mm per IEC 60794-1-21, ensuring the cable survives installation pulls through ladder rack and vertical riser pathways.
LSZH jacket material is a thermoplastic compound free of polyvinyl chloride (PVC) and halogenated flame retardants. When exposed to fire, LSZH cordage produces less than 0.5% hydrogen chloride gas by weight and achieves light transmittance above 60% at three meters per IEC 61034-2 smoke-density testing. This combination meets European CPR (Construction Products Regulation) Euroclass requirements and satisfies local fire codes in transit tunnels, hospitals, and high-rise buildings where toxic smoke evacuation is life-safety-critical. In North America, LSZH is increasingly specified for datacenters and telecom central offices even when not required by code—occupant safety during a fire event and reduced equipment corrosion from halogen off-gassing justify the material premium. The yellow jacket color follows TIA-598-C single-mode identification standards, preventing accidental cross-connection with orange-jacketed multimode OM1/OM2 or aqua-jacketed OM3/OM4 cables during maintenance. The 10-meter length is a standard datacenter increment: it spans two 42U racks separated by a 1.2-meter hot aisle plus vertical cable management on each end, or reaches from an end-of-row fiber panel to a switch located mid-row in the same cabinet lineup.
This Opti-Core™ patch cord ships as a single unit with both connectors factory-installed and individually insertion-loss tested, typically measuring 0.15–0.25 dB per connector depending on transceiver alignment. Panduit's Opti-Core platform integrates with the company's FZ cassette system, FAP preterminated trunk assemblies, and FQP QuickNet enclosures, ensuring mechanical and optical consistency across horizontal, backbone, and equipment-cord layers of a structured cabling installation. For integrators managing fiber-to-the-edge deployments—surveillance NVR uplinks to core switches, building-to-building campus backbones, or 5G small-cell fronthaul—the F92ELB1LNSNM010 provides a field-proven solution that eliminates the reflection penalty of APC-to-UPC direct connection while maintaining the performance and safety characteristics required for mission-critical optical links.
